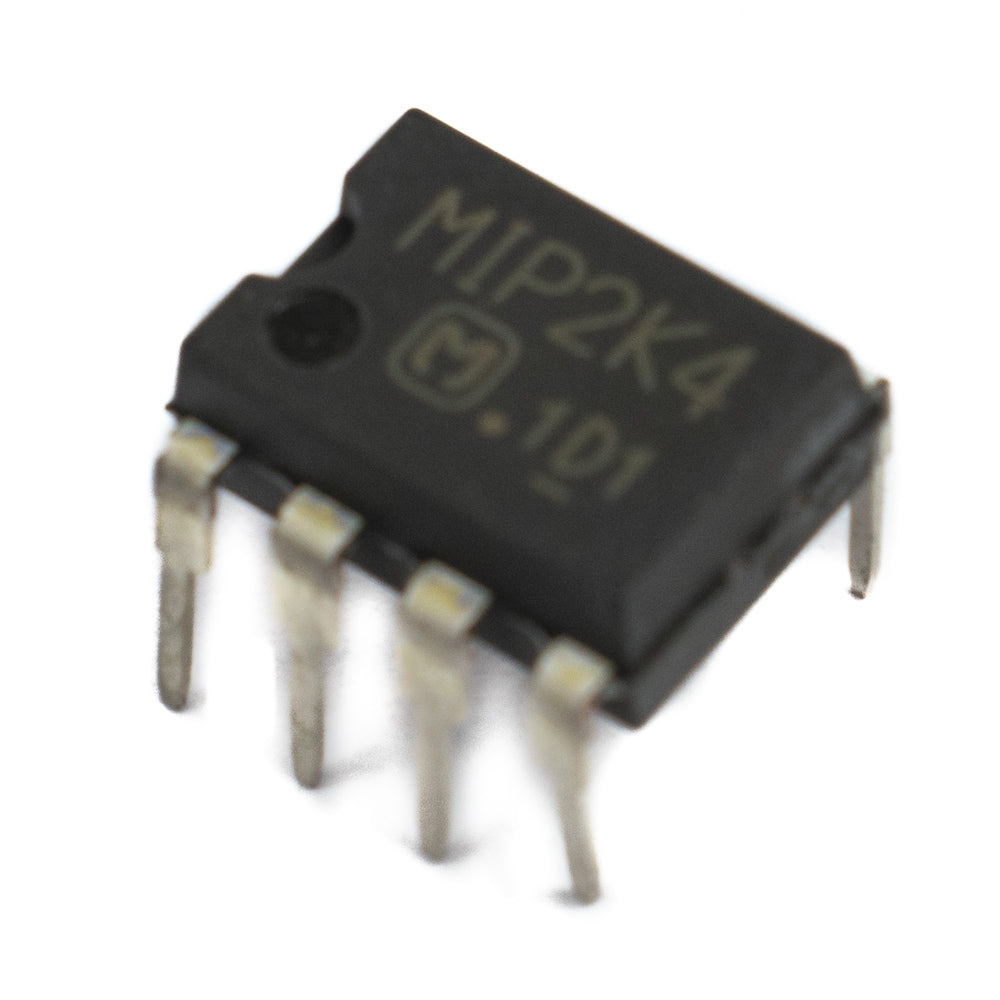

Panasonic MIP2K4 High-Performance IPD for Battery Charger

Original price was: ₹68.49.Current price is: ₹55.25. (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹52.49 (Including tax)
11 - 20	8%	₹50.84 (Including tax)
21 - 40	10%	₹49.73 (Including tax)
41 - 100	12%	₹48.63 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

14 People watching this product now!

SKU: rz24341313 Categories: All Categories, Integrated Circuits, Integrated Circuits and Base, Voltage Regulator

Description

MIP2K4, MIP2Kx series is a high-performance IPD designed for 15W battery chargers and featuring built-in frequency jitter function at PWM control. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.

Quantity: 50 ICs

Features

Built-in jitter function
Built-in charge protection circuit
Built-in overheating, load shorting and overvoltage protection circuits

Applications

Chargers (for DSC, etc.), AC adapter

Specifications

Model

MIP2K4

Brand

PANASONIC

Output

Up to 10W

VDSS

700V

ILIMIT

0.70A

R(DS)ON

7ohm

fosc

100kHz

∆f

5.5kHz

260Hz

Analog IC – Other Type

BATTERY CHARGE CONTROLLER

Control Technique

PULSE WIDTH MODULATION

Number of Functions

Number of Terminals

Package

DIP

Mounting

Through Hole

Country of Origin

China
