PIMORONI MSA301 3DoF Motion Sensor Breakout

SKU: rz24313924
In Stock


  1. Model: MSA301
  2. Product type: 3DoF Motion Sensor
  3. Supply Voltage: 1.62V to 3.6V
  4. Current: 180μA
  5. Ultra small package 2x2x0.91 mm LGA-12 pins
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free


Tracking the position of an object is an important engineering problem that finds many application areas including military, industrial, medical, and consumer
applications [1 – 3]. This problem is effectively solved with an Inertial Measurement Unit (IMU). An IMU consists of three orthogonally placed accelerometers and gyroscopes, and these sensors find the linear acceleration and angular velocity of the object that it is mounted on. Knowing linear acceleration and angular velocity in three dimensions is enough to track the motion of the system with the help of additional mathematical operations [1, 2]. Compared to other sensing mechanisms, capacitive type sensing sensors have realized intensive research interest due to their advantages such as high sensitivity, high reliability, low temperature
dependence, and low power consumption. The development of MEMS techniques such as bulk and surface micromachining allow to substantially improve the
performance and decrease the cost of the MEMS inertial accelerometers.

There are several reports on the integrated MEMS sensors. In [4], T. Sekiguchi at.al. presented a motion capturing system for human arm motion but integrating two types of sensor, gyroscope and accelerometer. In [5], the accelerometer was integrated in a closed-loop system, in which bandwidth, linearity and dynamic range of the sensor was improved. In another approach, the hybrid integration was reported using CMOS circuit [6]. In this study, we present design and analysis of a three degree-of-free sensor consisting of a 2D accelerometer and a gyroscope for an Inertial Measurement Unit (IMU). The IMU can be employed for tracking in-plane motion, in which the accelerometer and gyroscope are used for measuring two components of linear acceleration and angular velocity with the rotation axis perpendicular to the motion plane, respectively. The integrated partial sensors are modeled and analyzed using SIMULINK model and FEM analysis. The sensors have been designed for measurement in a fully differential capacitive bridge interface based on a sub-fF switched-capacitor integrator circuit.

MSA301 is a triaxial, low-g accelerometer with I2C digital output for consumer applications It has dynamical user selectable full scales range of ±2g/±4g/±8g/±16g
and allows acceleration measurements with output data rates from 1Hz to 500Hz. MSA301 is available in an ultra small (2mmx2mm,height 1mm) LGA package and is guaranteed to operate over -40°C to +85°C.


  1. Small in size
  2. Easy to use
  3. Color: Black
  4.  I2C Interface
  5. User selectable data output rate
  6. One interrupt pins

packages includes:

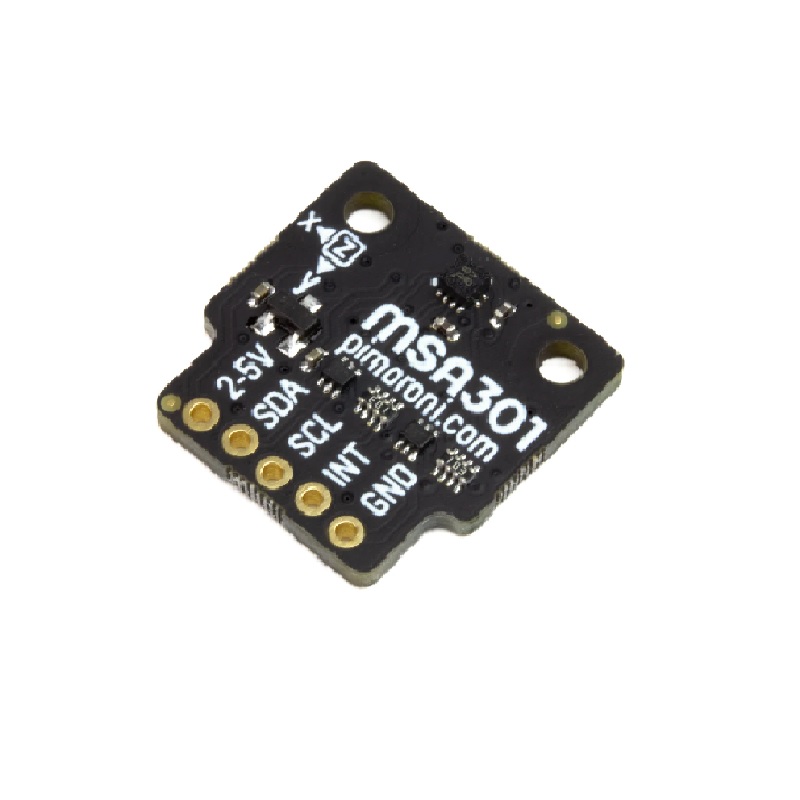

1 x PIMORONI MSA301 3DoF Motion Sensor Breakout

Additional information



Product Type

3DoF Motion Sensor

Operating Voltage(V)

1.62V to 3.6V

Operating Current (A)



I2C Interface


14 bits

User selectable range

±2g, ±4g, ±8g, ±16g

Dimensional Accuracy (mm)

2x2x0.91 mm LGA-12 pins
