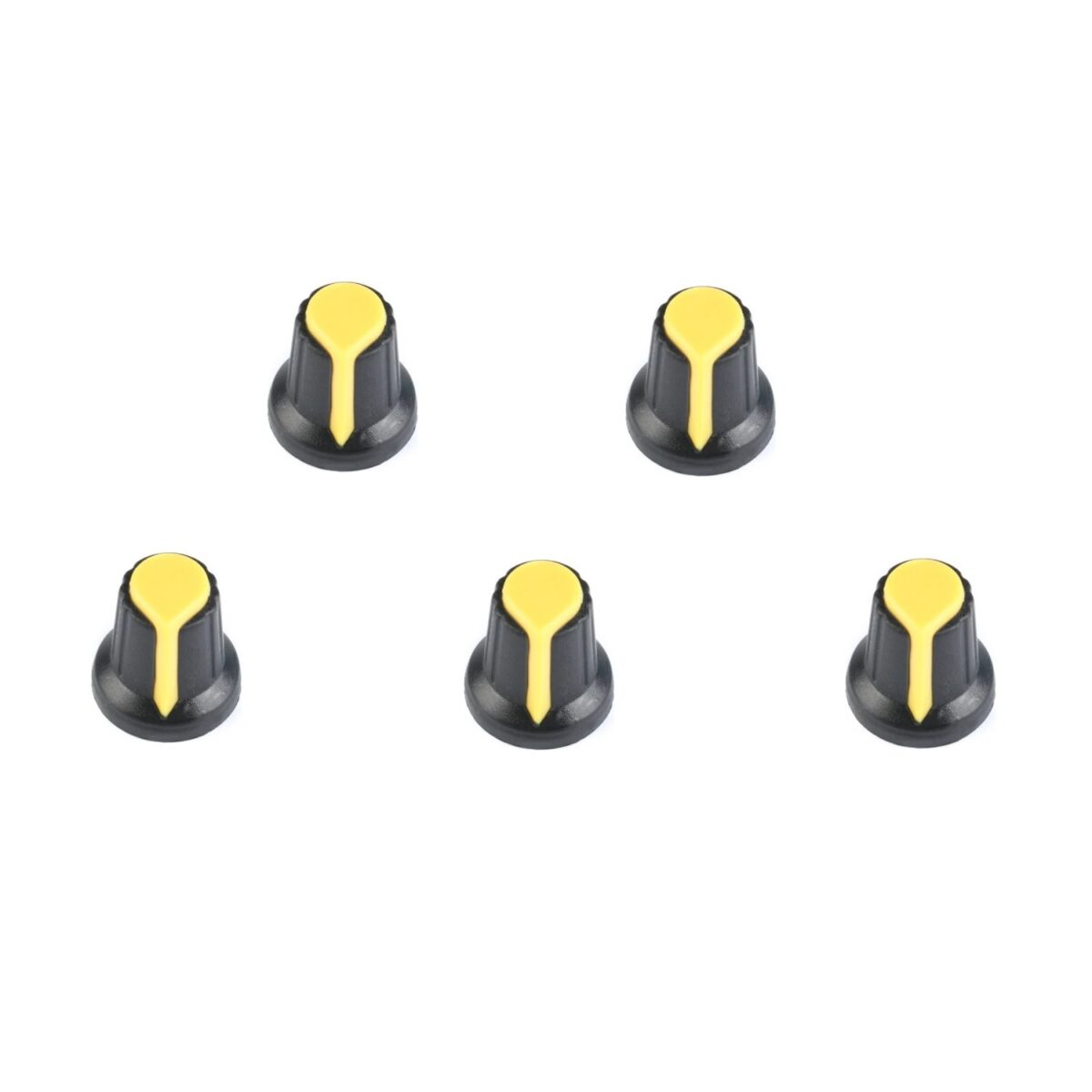

Potentiometer Knob Rotary Switch Cap Yellow Color- Pack of 5 Pcs.

SKU: 1031100
In Stock

46.00

  1. Inner Diameter(ID): 6 mm
  2. Outer Diameter(D): 15 mm
  3. Material: Bakelite
  4. Color: Yellow
  5. Weight:5.3 gm
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

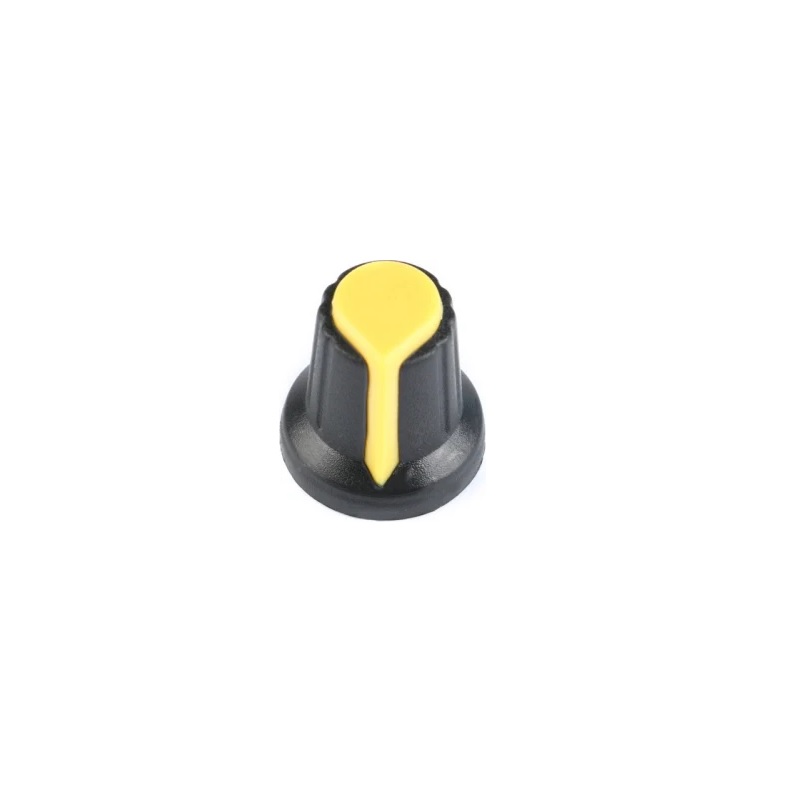

This is a Potentiometer Knob Rotary Switch Cap with a 6mm inner diameter. It easily fits with WH148 type potentiometer, Rotary switches used in various electronic devices. The knob makes it very easy to rotate and vary the switch rotation.


Features:

  1. Easy and smooth rotation.
  2. Fast and accurate adjustment.
  3. Shock-proof protection.

Package Includes:

1 x Potentiometer Knob Rotary Switch Cap Yellow Color- Pack of 5 Pcs.

Additional information

Material

Bakelite

Color

Yellow

Inner Diameter (ID) (mm)

6

Length (mm)

17

Diameter (mm)

15

Weight (gm)

5.3
