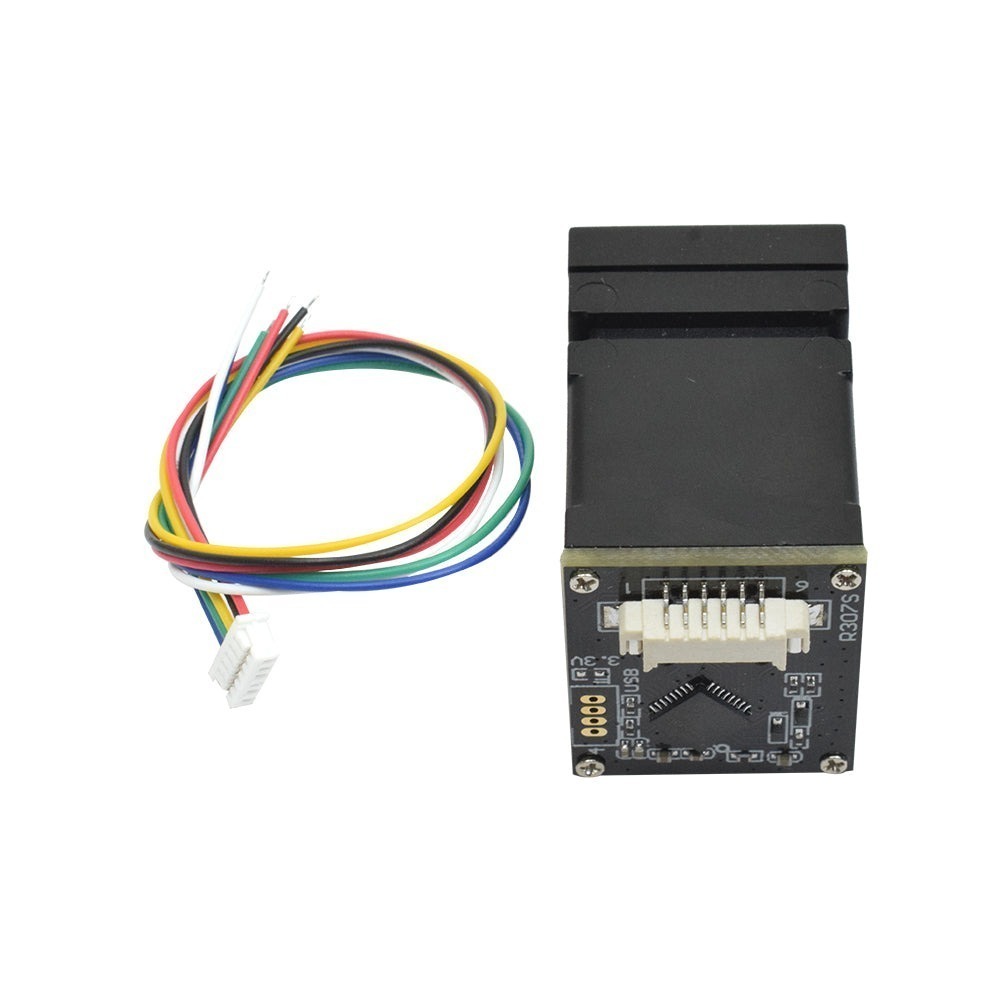

R307S Fingerprint Sensor Module

Original price was: ₹1,183.30.Current price is: ₹1,005.53. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%955.26 (Including tax)
11 - 208%925.10 (Including tax)
21 - 4010%904.98 (Including tax)
41 - 10012%884.87 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

19 People watching this product now!
Description

The R307S (1000 Prints) Fingerprint Module includes an optical fingerprint sensor, a high-speed DSP processor, a high-performance algorithm for fingerprint alignment, high-capacity FLASH chips, and other hardware and software components. It has a simple structure, stable performance, and features functions for fingerprint entry, image processing, fingerprint matching, searching, and template storage, among others. A fingerprint sensor module called R307 has a TTL UART interface. The FP module can directly interface with a 3v3 Microcontroller. The user can configure the module in 1:1 or 1: N mode and store the fingerprint data there. A level converter (like MAX232) is needed for the PC interface. The RS232 interface is a TTL level; the default baud rate is 57600, can be changed, refer to a communication protocol, and can And microcontroller, such as ARM, DSP and other serial devices with a connection, 3.3V 5V microcontroller can be connected to directly. The R307 fingerprint module has two interfaces: TTL UART and USB 2.0. USB 2.0 interface can be connected to the computer. Requires connecting the computer for level conversion.

Pin Detail:

1 5V – Regulated 5V DC
2 GND – Common Ground
3 TXD – Data output – Connect to MCU RX
4 RXD – Data Input – Connect to MCU TX
5 TOUCH – Active Low output when there is a touch on the sensor by a finger
6 3.3V – Use this wire to give 3.3V to sensor instead of 5V
Features:-
  • Supply voltage: DC 4.2 ~ 6.0V
  • Supply current: Working current: 50mA (typical) Peak current: 80mA
  • Fingerprint image input time: <0.3 seconds
  • Characteristic file: 256 bytes
  • Template file: 512 bytes
  • It has six pin connector
Specification
ModelR307S
TypeFingerprint
Voltage3.3V
Operating Current50mA
Screen Size16mmx20mm
Dimensions48mmx24mm20mm
Country of OriginChina
