Rctimer ATLAS Flight Control System Included GPS and LED Module

This product is an autopilot system designed for serious multi-rotor enthusiasts providing excellent self-leveling and maintaining altitude, which aids in relieving the stress of flying RC multi-rotors for both professional and hobby applications. Despite the system having a built-in autopilot system

Note: For technical details refer to datasheet in attachment section.

Features:

1. Easily-usable

2. Seven type Multi-rotor supported

3. External LED module with build-in PMU

4. No compass need during stab mode

5. Manual controllable during RTH and Auto Landing, avoiding accidents

6. Compass disturbance alert

7. Low voltage alert

Specifications:

1. Main controller 4.5~5.5V
2. LED module 7~28V
3. Hovering Accuracy(GPS Mode): Horizontal ±2M, Vertical ±1M
4. Max Tilt Angle: 30°
5. Max Horizontal Speed: 6M/s
6. Max Ascent Speed: 3.2M/s
7. Max Descent Speed: 2.5M/s
8. Wind Resistance: Continue 6~8M/s, Gust 10~12M/s

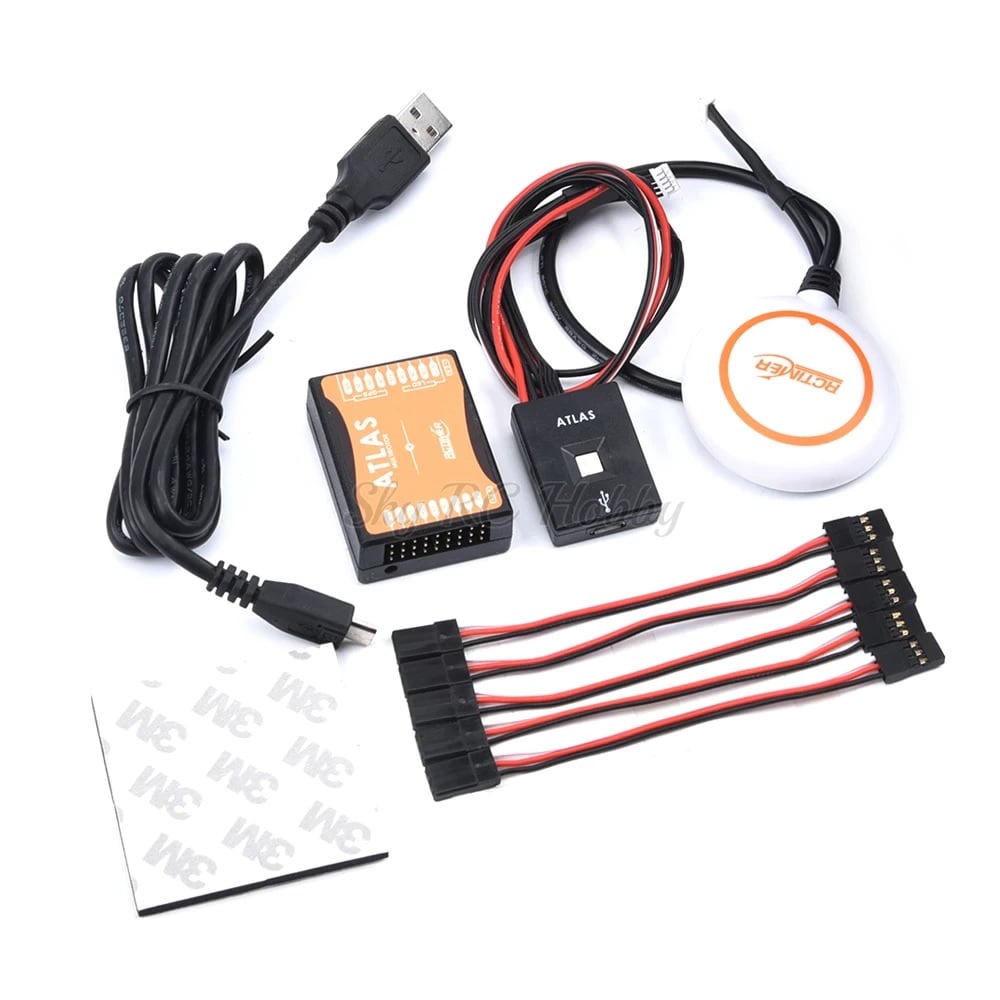

Packages Includes:

1 x ATLAS Main Flight controller

1 x GPS

1 x LED

5 x Servo Cable

1 x Micro-USB Cable
