JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro BlackBox 2-6S LIPO F411 Flight Controller Deluxe

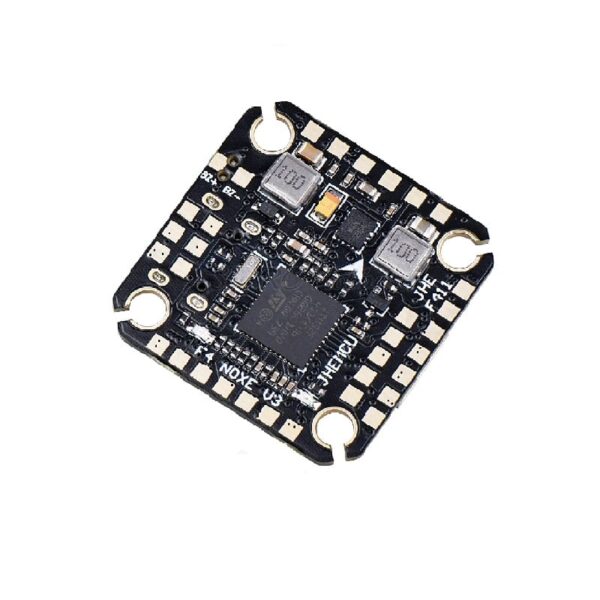

JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Flight Controller ARCO  was designed to give awesome flight performance based on tried and tested sensors whilst also providing unparalleled I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU

A flight controller (FC) is a small circuit board of varying complexity. Its function is to direct the RPM of each motor in response to input. A command from the pilot for the multi-rotor to move forward is fed into the flight controller, which determines how to manipulate the motors accordingly.

Every part of the drone is controlled by a flight controller. It moves the drone by changing the RPM of the motors. It is a control system that takes input from the sensors and makes the drone fly accordingly. This is a small computer board with various sensors which understand the movement of the craft. It has sensors like Gyroscope, Accelerometer, Barometer, and Magnetometer. According to the signal comes from the transceiver , it controls the motors and craft.

The board is rock solid and gives great performance with the HAKRC 20 A ESC, except that you have to switch the motors 1 & 2 to get the motor connections right. The barometer does not work great. Even though I packed a sponge above it, it starts bouncing hard when I switch on ALT hold mode. The OSD is the best and it works flawlessly, as does the VCC feed, whcih gives you the actual battery voltage reading through betalight. Else all great, good light and powerful board for a micro build.

Connection Diagram:

Board Difference:

Features:

1. Compact In size
2. Color: black
3. Easy to install
4. High performance flight controller module
5. very use to product

Specifications:

1. Brand (trade name): JHEMCU
2. Model: F4 NOXE V3
3. Main control (MCU): STM32F411CEU6/100 MHz
4. Sensor: BMI 270/Gyro/Accel
5. Video Overlay (OSD): AT7456E
6. Barometer (Baro): Yes (Deluxe version only)
7. Black Box (Black Box): 16MB (Deluxe Edition only)
8. Input voltage: Input voltage: 2S-6S (7.4V-26V)
9. 5V-BEC: 5V/2.5A ± 0.1V
10. 10V-BEC: 10V/2A+0.1V
11. Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBU, IBU, DS M2, DS MX
12. HD interface: yes
13. UART: UART 1, UART 2
14. LIC: IIC1
15. LED strip: yes
16. Buzzer (buzzer): support 5V active
17. ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,
18. Dail 150, Dail 300, Dail 600
19. USB: Micro USB
20. Current terminal] (current port): yes
21. Voltage sensor (voltage sensor): Yes
22. Dfu button (dfu button): Yes
23. Firmware (Firmware): Betaflight_4.3.0 JHEF 411.HEX
24. Mounting hole: 20 x 20 x 3mm
25. Size: 27 x 27 x 5mm
26. Weight (weight): 4.3g

Note: The BMI 270 gyroscope only supports 4.3.0 firmware. Please do not flash the other version firmware.

Packages Includes:

1 x JHEMCU F4 NOXE V3  Flight Controller
