reComputer J1020 Edge AI Device with Jetson Nano module, Aluminium case, pre-installed JetPack System

SKU: 1252360
In Stock

27,999.00

  1.  quad-core ARM Cortex-A57 MPCore processor
  2. 128-core NVIDIA Maxwell™ GPU with 128 NVIDIA CUDA cores delivers 5 TFLOPs (FP16)
  3. Support wide range of AI application fast building with our ecosystem partners
  4. Storage: 16 GB eMMC 5.1 Flash
  5. Camera: 12 lanes (3×4 or 4×2) MIPI CSI-2 DPHY 1.1 (18 Gbps)
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

The Jetson Nano module is a small AI computer that has the performance and power efficiency needed to run modern AI workloads, multiple neural networks in parallel and process data from several high-resolution sensors simultaneously. This makes it the perfect entry-level option to add advanced AI to embedded products. While talking about Jetson Nano, Quad Core ARM Cortex-A57 which is 1.43 Ghz powerful 64 bit quad core processor Jetson Nano is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI in a (1KU+) module. Get started fast with the comprehensive JetPack SDK with accelerated libraries for deep learning, computer vision, graphics, multimedia, and more. NVIDIA® Jetson Nano™ Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.


Features:

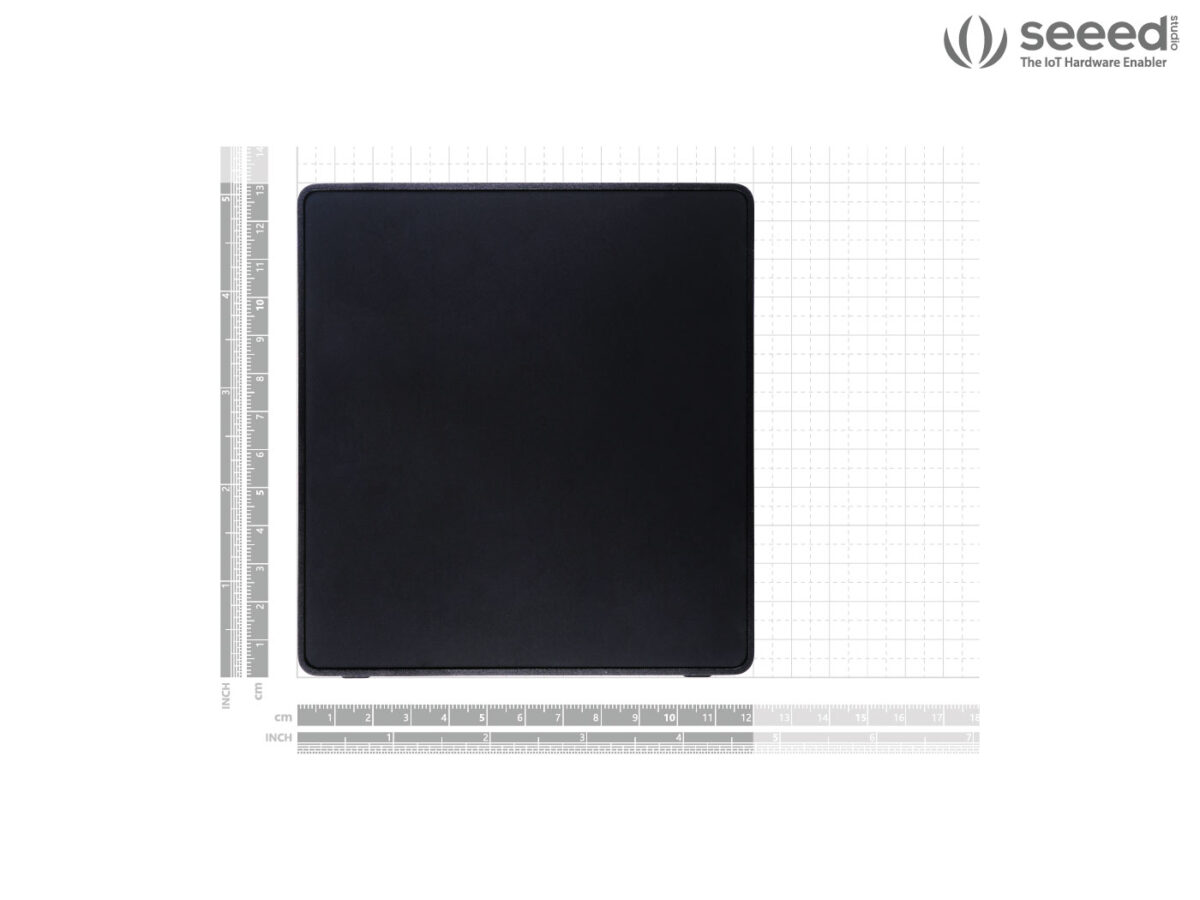

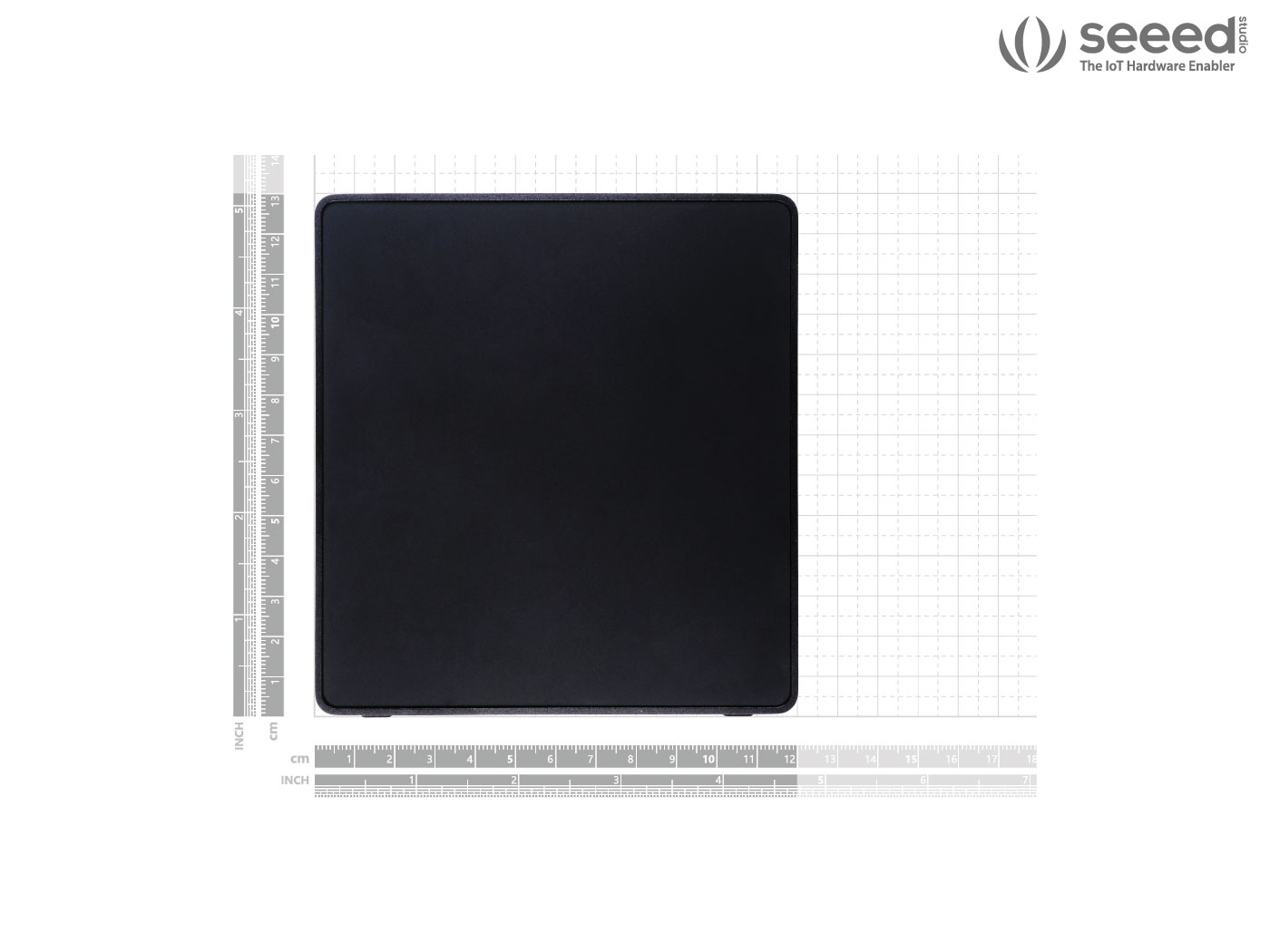

  1. Hand-size edge AI device with an overall dimension of 130mm*120mm*50mm, fits in everywhere.
  2. Powered by the quad-core ARM® Cortex®-A57 MPCore processor.
  3. 128-core NVIDIA Maxwell™ GPU with 128 NVIDIA CUDA® cores delivers 5 TFLOPs (FP16).
  4. Rich peripherals including Gigabit Ethernet port, 4 USB 3.0 Type-A ports, HDMI port and DP port.
  5. Pre-installed NVIDIA official JetPack software, ready for cloud native application .

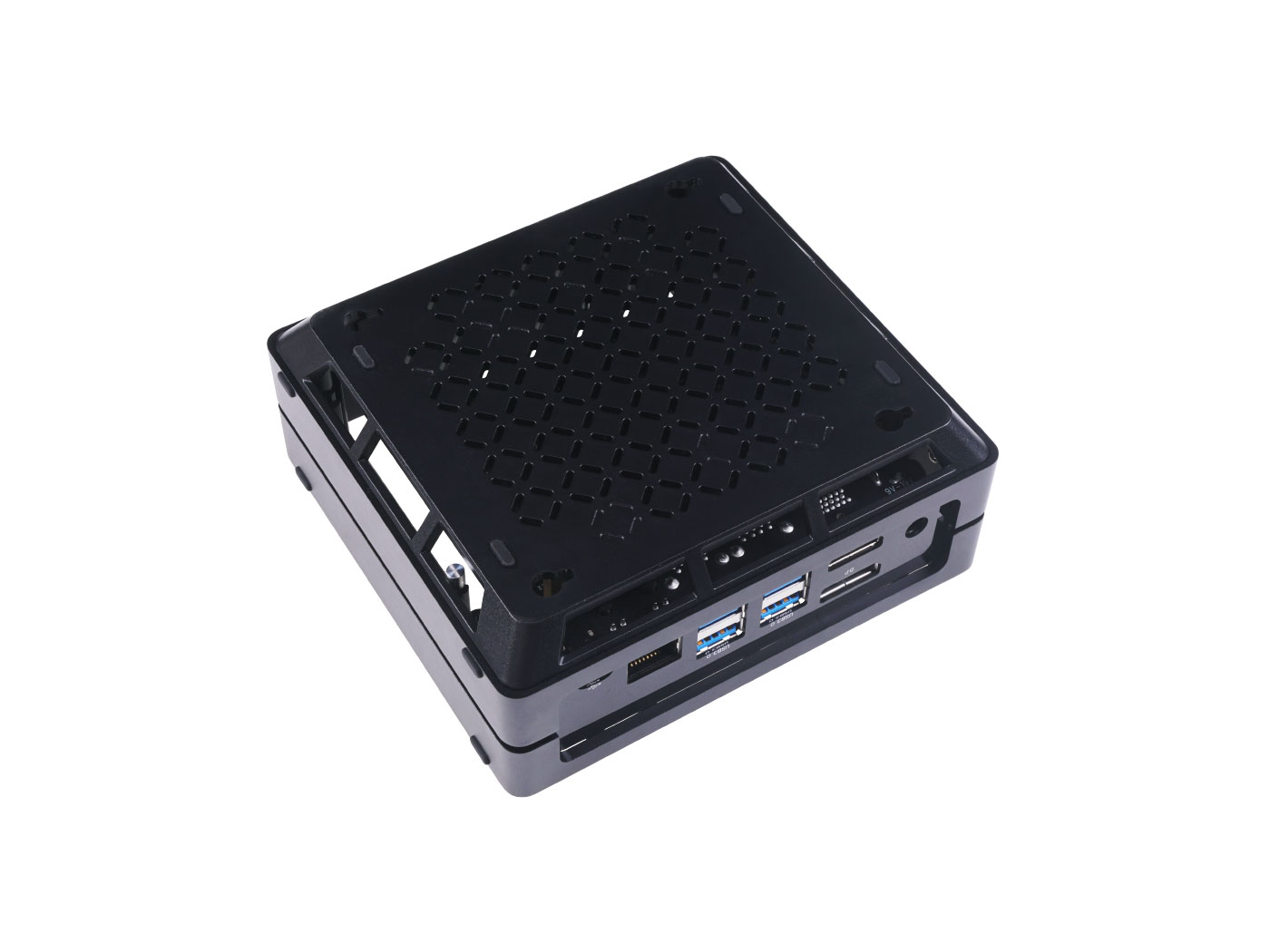

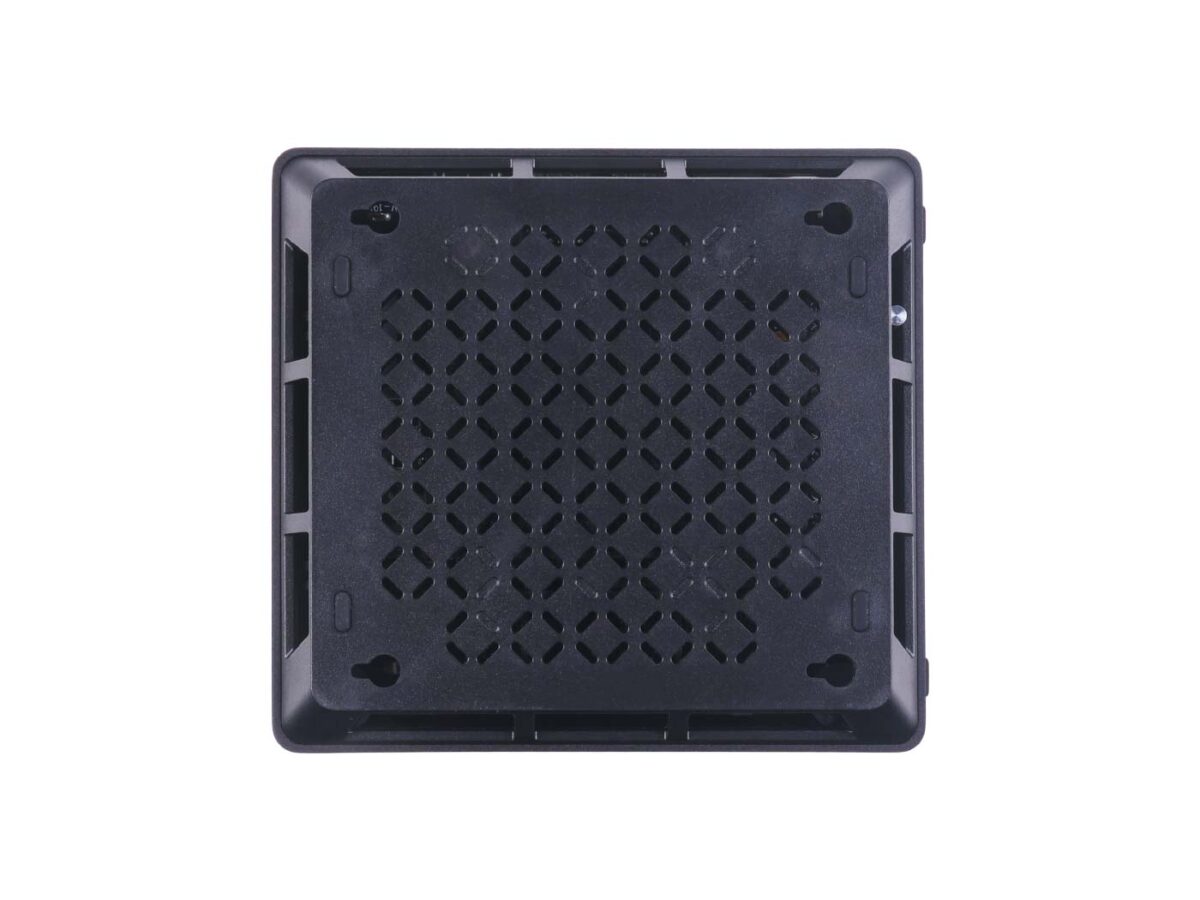

  6. Able to mount on the wall with mounting holes on the back.
  7. Support wide range of AI application fast building with our ecosystem partners.
  8. Support Allxon to enable efficient remote hardware management services.

Specifications:

  1. Product: reComputer J1010
  2. Module: Nano (production version)
  3. AI Perf: 472 GFLOPS
  4. GPU: 128-core NVIDIA Maxwell
  5. CPU: Quad-core ARM A57  1.43 GHz
  6. Memory: 4GB 64-bit LPDDR4 25.6GB/s
  7. Storages: 16 GB eMMC
  8. Video encoder: 4K30 | 2x1080p60 | 4x1080p30 | 4x720p60 | 9x720p30 (H.265 & H.264)
  9. Video Decoder: 4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60 (H.265 & H.264)
  10. Gigabyte Ethernet: 1 x RJ45 Gigabit Ethernet Connector (10/100/1000)

Compression

Product reComputer J1010 reComputer J1020 NVIDIA Jetson

Nano Developer

Kit-B01

Module Nano (production version) Nano

(not production version)

AI Perf 472 GFLOPS
GPU 128-core NVIDIA Maxwell™
CPU Quad-core ARM A57 @ 1.43 GHz
Memory 4GB 64-bit LPDDR4 25.6GB/s
Storage 16 GB eMMC MicroSD

(Card not included)

Video Encoder 4K30 | 2x1080p60 | 4x1080p30

| 4x720p60 | 9x720p30
(H.265 & H.264)

4Kp30 | 4x 1080p30 |

9x 720p30

(H.264/H.265)

Video Decoder 4K60 | 2x 4K30 | 4x 1080p60

| 8x 1080p30 | 9x 720p60
(H.265 & H.264)

4Kp60 | 2x 4Kp30

| 8x 1080p30 |

18x 720p30

(H.264/H.265)

Gigabit Ethernet 1*RJ45 Gigabit Ethernet Connector (10/100/1000)
USB 1 * USB 3.0 Type A Connector;
2 * USB 2.0 Type A Connector;
1 * USB Type C for device mode;
1 * USB Type C for 5V power input
4 * USB 3.0 Type

A Connector


1 * Micro-USB port

for device mode;

4 x USB 3.0 Type

A Connector;

1 x Micro-USB port for

5V power input

or for device mode

CSI Camera Connect 2xCSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )
Display 1xHDMI Type A 1*HDMI Type A;
1*DP
1*HDMI Type A;
1*DP
FAN 1* FAN (5V PWM)
M.2 KEY E 1*M.2 Key E 1*M.2 Key E (Disabled) 1*M.2 Key E
M.2 KEY M 1*M.2 Key M
RTC 1*RTC Socket
Multifunctional port 1* 40-Pin header
Power USB-Type C 5V3A DC Jack 12V/2A DC Jack 5V3A
Micro-USB 5V
2A
Mechanical 130 mm x 120 mm x 50 mm

(with case)

130mm x120mm x 50mm

(with case)

100 mm x 80 mm x 29 mm

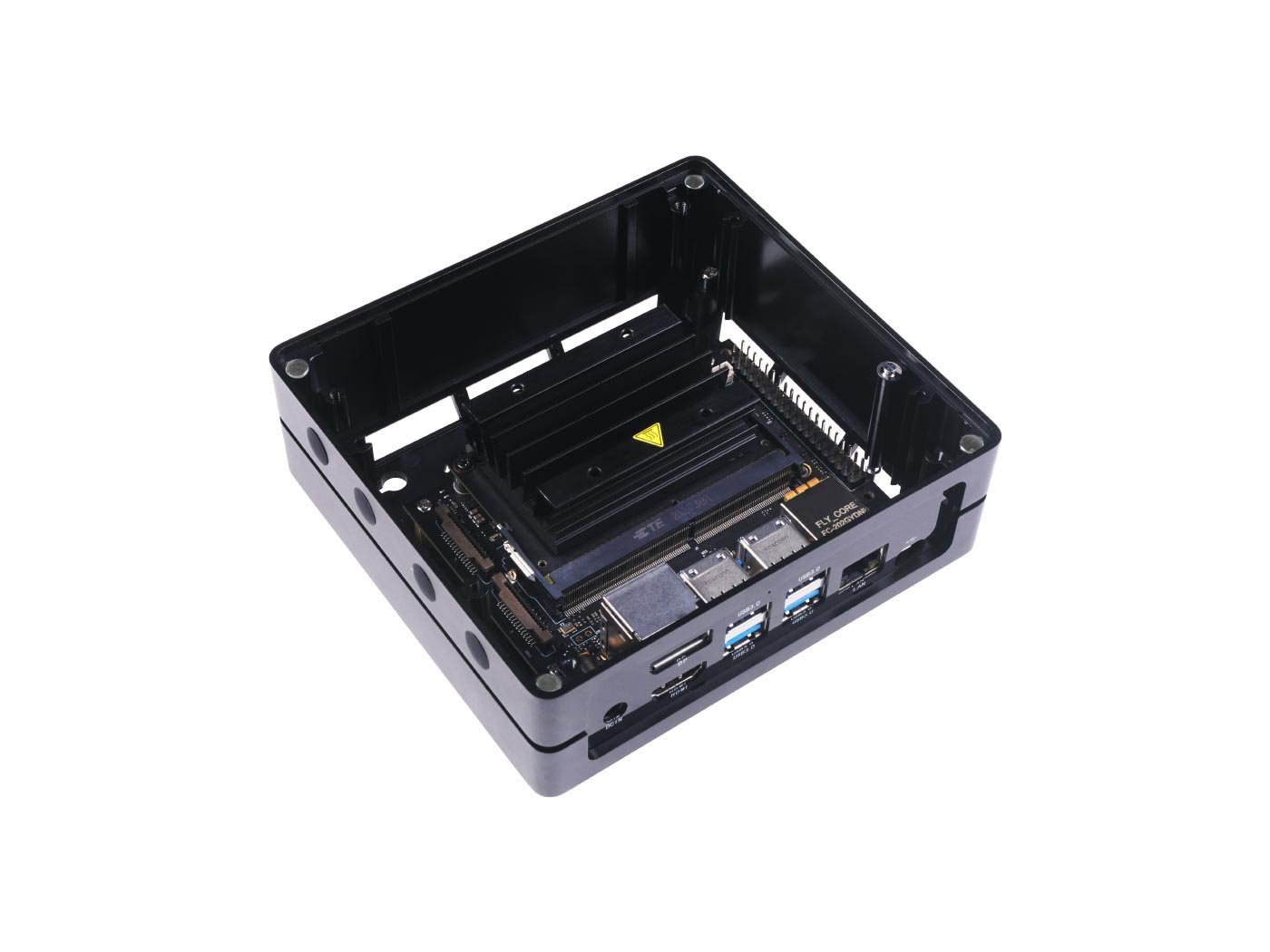

Packages Includes:

1 x Jetson Nano module
1 x Acrylic Cover
1 x Aluminum Frame
1 x Heatsink
1 x Carrier board
1 x 12V/2A  Power Adapter (with 5 interchangeable adapter plugs)
