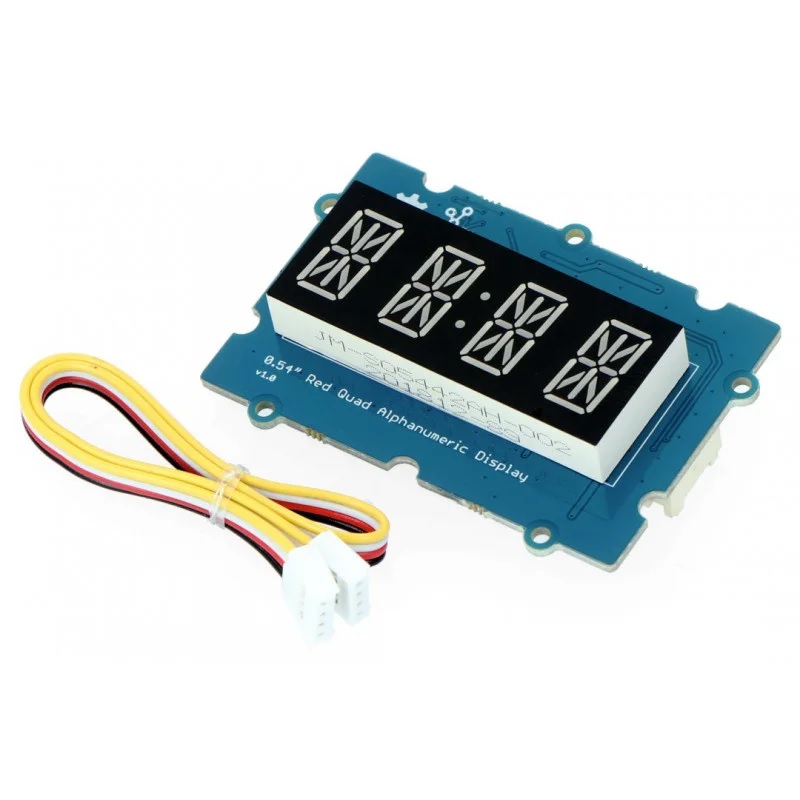

SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display

SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display

SKU: rz24319805
In Stock

₹899.00

  1. Supply voltage 3.3V / 5V
  2. Operating ambient temperature -30°C to 85°C
  3. LED Display JM-S05442ASR-001
  4. LED Controller Driver HT16K33
  5. LED Color Red
  6. Ultra-high brightness 30mcd
  7. LED height 0.54inch
  8. LED segment 14
  9. Size 40 * 60mm
  10. Output interface I2C
  11. I2C Address(Selectable) 0x71(Default)
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

This module is a 4 digit alphanumeric display with high brightness and red backlight, each digit is consists of a 14-segment digital tube. The commonly used 7-segment display, such as our Grove – 4-Digit Display can only display the numbers 0-9 and a limited number of letters. In contrast, the 14-segment digital display does not have this limitation, it can display all the characters, that’s why we call it alphanumeric display.

SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display

The digit height is 0.54 inch and the red LED used in this module has super high brightness, so you can see it a few meters away.
SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
Usually, the 14-segment display needs to use 17 or more wires to control the display, which means that a large amount of IO of your main control board (such as Arduino) will be occupied. With the help of onboard HT16K33 chip and Grove connector, we made it an i2c display, only four wires are enough. No troublesome soldering and no complicated wiring, if you are using seeeduino, it is really plugged and play, easy peasy.
SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
We have released a lot of displays for Arduino, raspberry pi, Beaglebone and other SBC(Single Board Computer), now we bring you the Grove – 0.54” Red Quad Alphanumeric Display, you can use it to show a four-letter word, such as ‘Love’, or you can make it a clock. All in all, the 14-segment display means more possibility and creativity. We hope it will help you create more interesting projects.

Features:

  1. Can display all letters and numbers
  2. Ultra-high brightness:30mcd
  3. Grove I2C only takes two IO pins
  4. Onboard drivers, easy to use
  5. Cathode display

Application:

  1. Industrial control indicators
  2. Digital clocks, thermometers, counters, multimeters
  3. Instrumentation readouts
  4. Other consumer applications
  5. LED Displays

Specification:

  1. Supply voltage 3.3V / 5V
  2. Operating ambient temperature -30°C to 85°C
  3. LED Display JM-S05442ASR-001
  4. LED Controller Driver HT16K33
  5. LED Color Red
  6. Ultra-high brightness 30mcd
  7. LED height 0.54inch
  8. LED segment 14
  9. Size 40 * 60mm
  10. Output interface I2C
  11. I2C Address(Selectable) 0x71(Default)

Package Includes :

1 x SeeedStudio Grove 0.54‘’ Red Quad Alphanumeric Display
1 x JST cable
