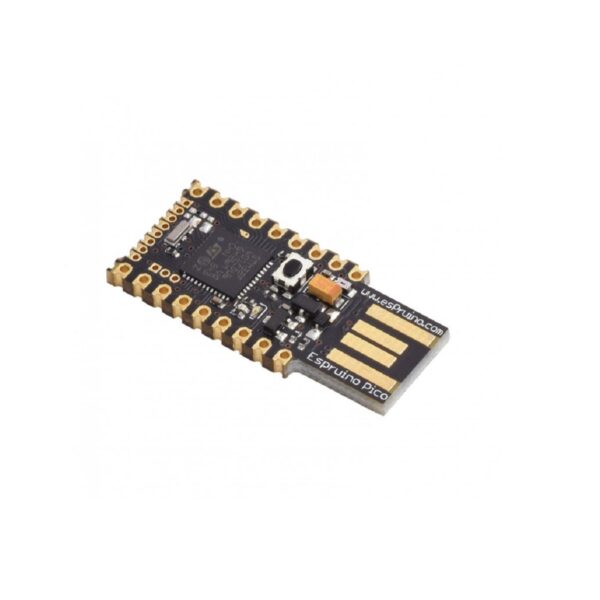

Espruino Pico (unpinned) 4,536.615,155.25 (Including tax)

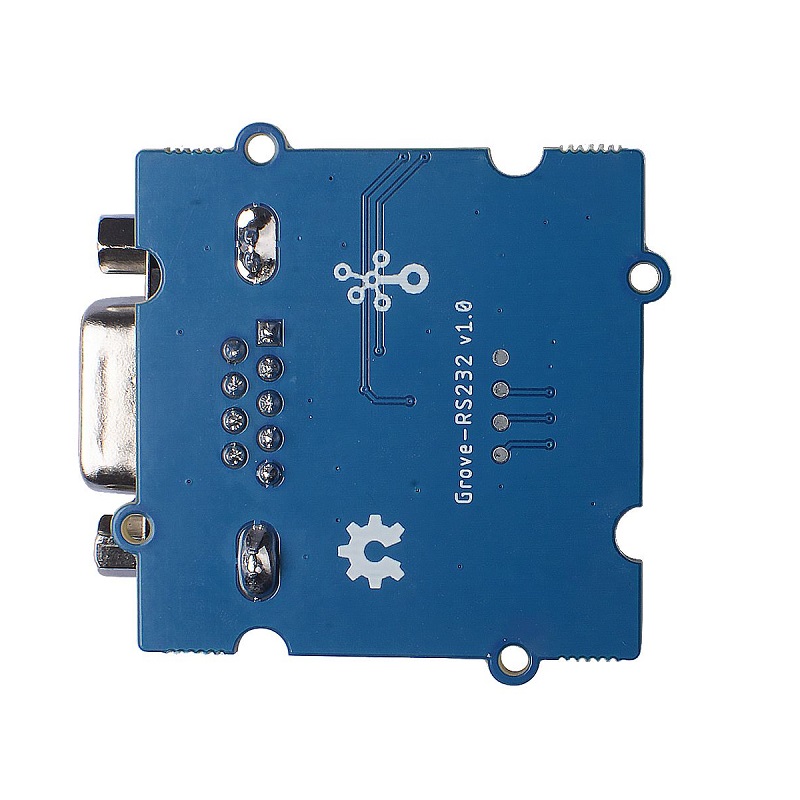

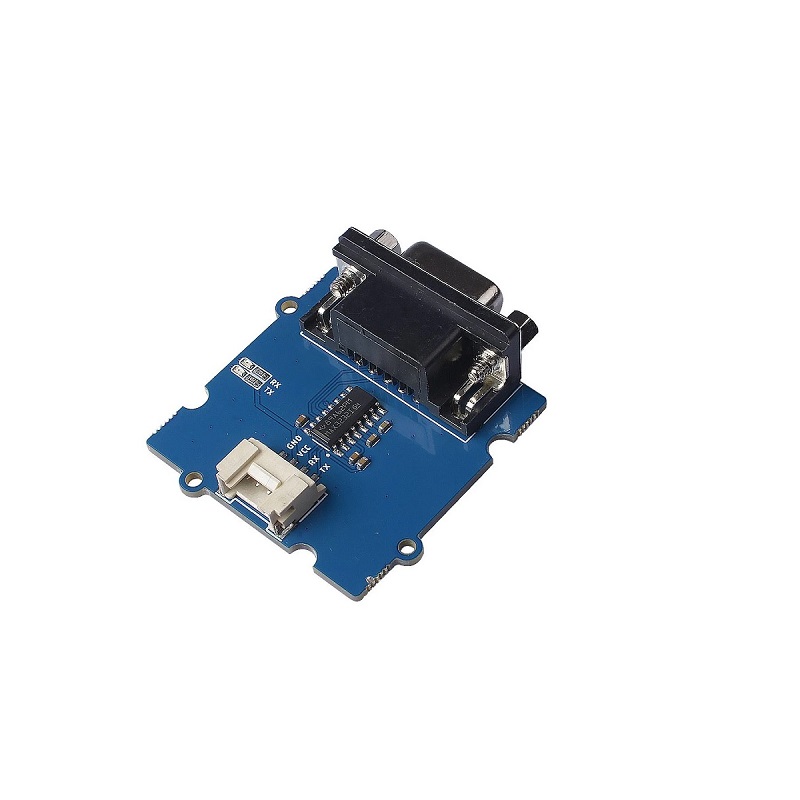

SeeedStudio Grove RS232

948.55 (Including tax)

  1. Supply Voltage 3.3V / 5V
  2. Female DB9 Header
  3. Support baud rate 300bps ~ 230400bps
  4. Stable, high speed
  5. size L: 40mm W: 40mm H: 15mm
  6. Weight 13.3g

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%901.12 (Including tax)
11 - 208%872.66 (Including tax)
21 - 4010%853.69 (Including tax)
41 - 10012%834.71 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

20 People watching this product now!
SKU: rz24318435 Category:
Description

RS-232 has been a serial communication standard in the industry for years. It’s still widely used and commonly heard in the industry though it dates back to 1969. However, with technological advancements, there are now faster data transmission methods. The RS232 is defined as the “Interface between data terminal equipment and data communications equipment using serial binary data exchange”.

Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this Grove – 232. The communication between your Arduino boards and the computer will be exceptionally convenient with the integrated Grove interface

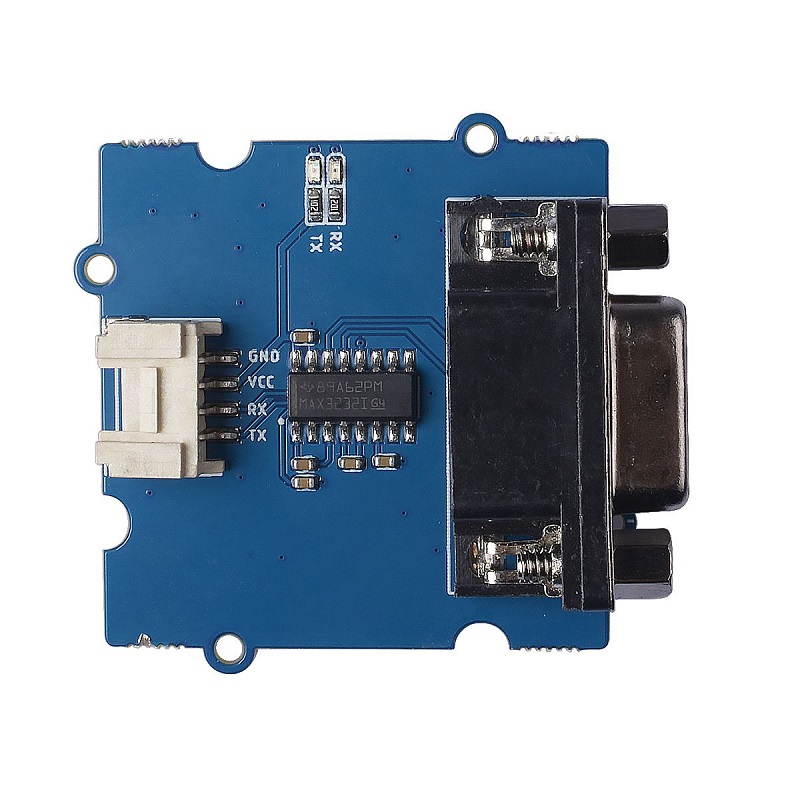

This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud.

Getting Started With SeeedStudio Grove RS232

  Pinout:

pin out 2


Features:

  1. Easy to use
  2. Stable, high speed
  3. High-cost performance
  4. ±15-kV ESD Protection
  5. Low power consumption
  6. Two Drivers and Two Receivers

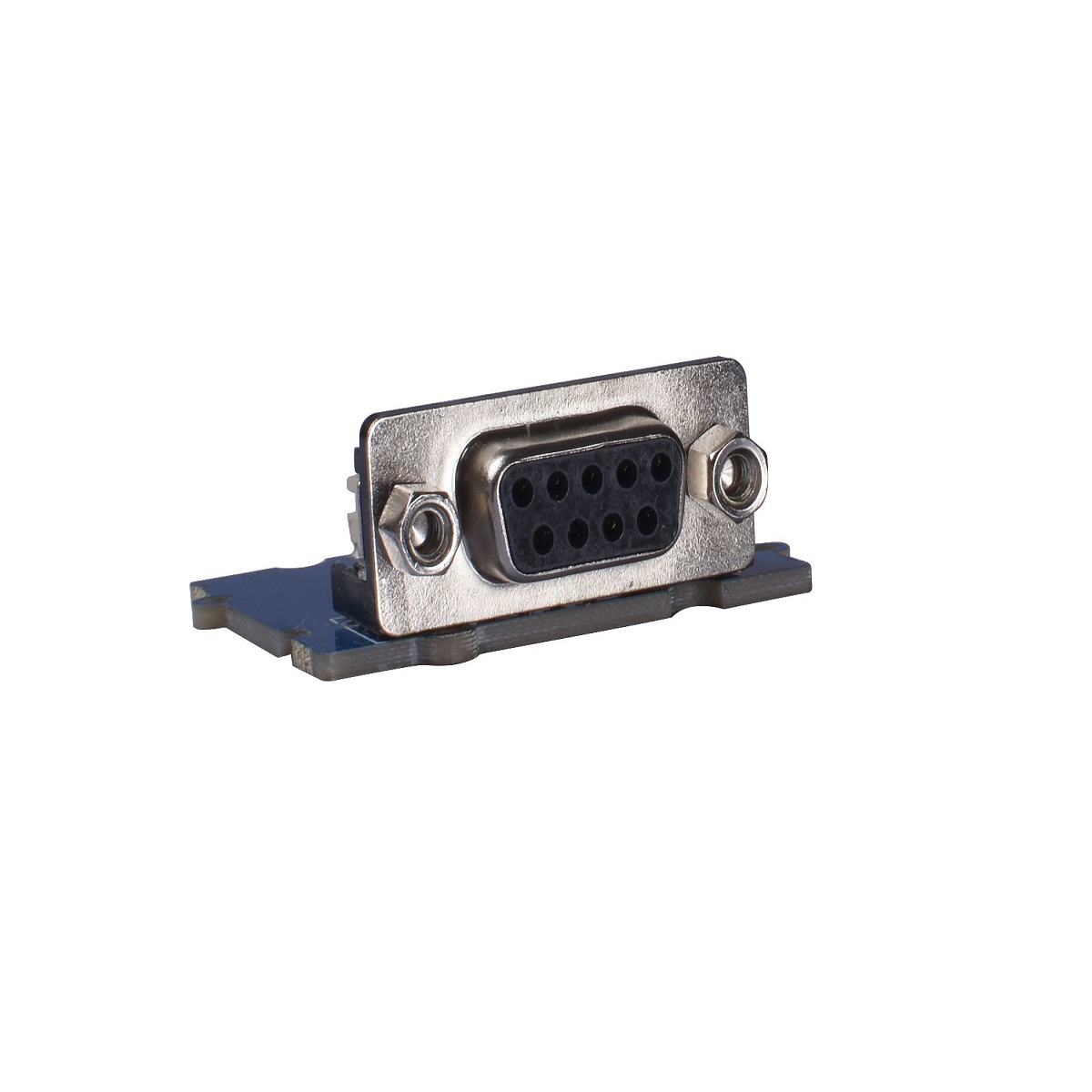

  7. Female DB9 Header

Application:

  1. Hand-Held Equipment
  2. Palmtop PCs

Package Includes :

1 x SeeedStudio Grove RS232

Additional information
Supply Voltage

3.3V / 5V

Driver input voltage

0V ~ 5.5V

Receiver input voltage

-25V ~ +25V

Supply current(No load)

0.3mA

Maximum data rate

250 Kbit/s

Support baud rate

300bps ~ 230400bps
