SeeedStudio Grove Differential Amplifier 2,148.292,441.25 (Including tax)

SeeedStudio Grove Sunlight Sensor

1,532.05 (Including tax)

  1. Operating Voltage: 3.0-5.5V
  2. Working current: 3.5mA
  3. Wavelength: 280-950nm
  4. Battery: Exclude

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%1,455.45 (Including tax)
11 - 208%1,409.48 (Including tax)
21 - 4010%1,378.86 (Including tax)
41 - 10012%1,348.21 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

13 People watching this product now!
SKU: rz24318216 Category:
Description

Summer is coming, want to make a UV detector to know the UV index when you are under the sun? Grove – Sunlight Sensor is recommended here.

Grove – Sunlight Sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.

This device is based on SI1145, a new sensor from SiLabs. The Si1145 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.

Grove – Sunlight Sensor includes an onboard Grove connector, which helps you to connect it to your Arduino easily. You can use this device for making some projects which need to detect the light, such as a simple UV detector for your Raspberry Pi weather station, or a smart irrigation system using Arduino if you need to monitor the visible spectrum.

Getting Started with SeeedStudio Grove Sunlight Sensor

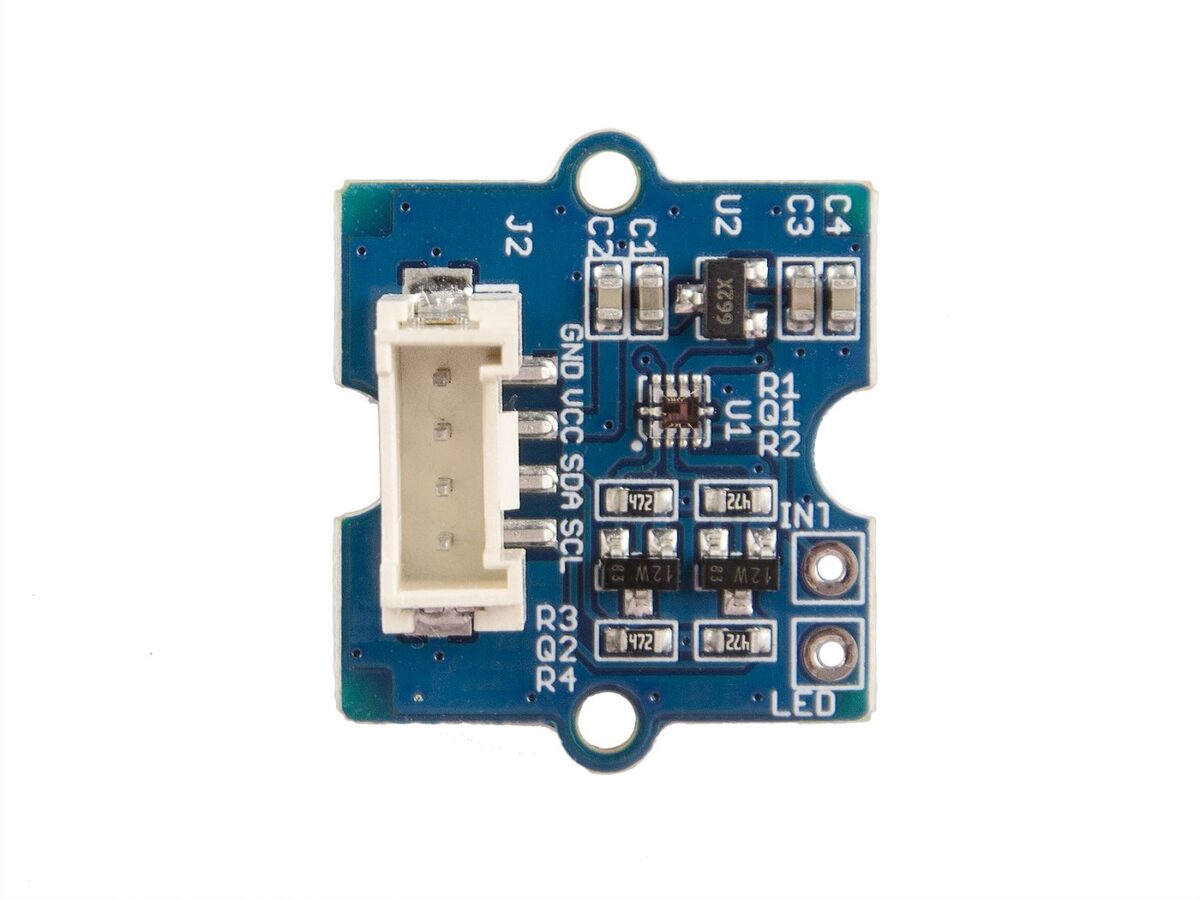

Hardware Overview:


sa

  • Grove Connector – a 4pin interface, containing VCC, GND, SDA and SCL
  • LED – LED Driver pin
  • INT – a programmable interrupt output
  • SI1145 – IC

Application:

  1. Light detection
  2. smart irrigation system
  3. DIY weather station

Features:

  1. Multi-channel digital light sensor: can detect UV-light, visible light and infrared light
  2. Wide spectrum detection range: 280-950nm
  3. Easy to use: I2C Interface(7-bit), compatible with Grove port, just plug-and-play
  4. Programmable configuration: Versatile for various applications
  5. 3.3/5V Supply, suitable for many microcontrollers and SBCs

Package Includes:

1 x SeeedStudio Grove Sunlight Sensor

Additional information
Operating Voltage(V)

3.0-5.5V

Working Current

3.5mA

Operating Temperature (°C)

45-85

Wavelength (nm)

280-950nm

Dimensions in mm (LxWxH)

140mm x85mm x11mm
