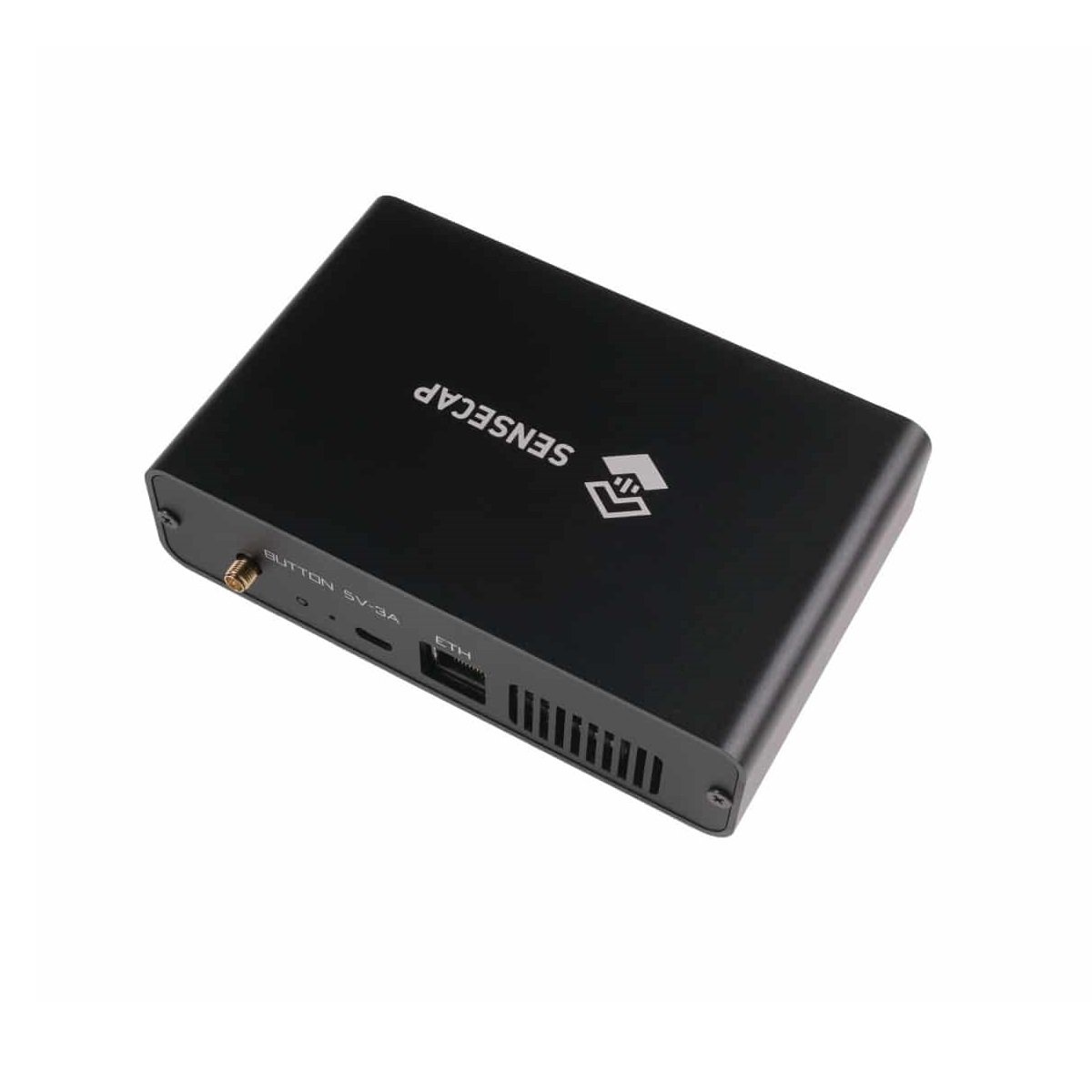

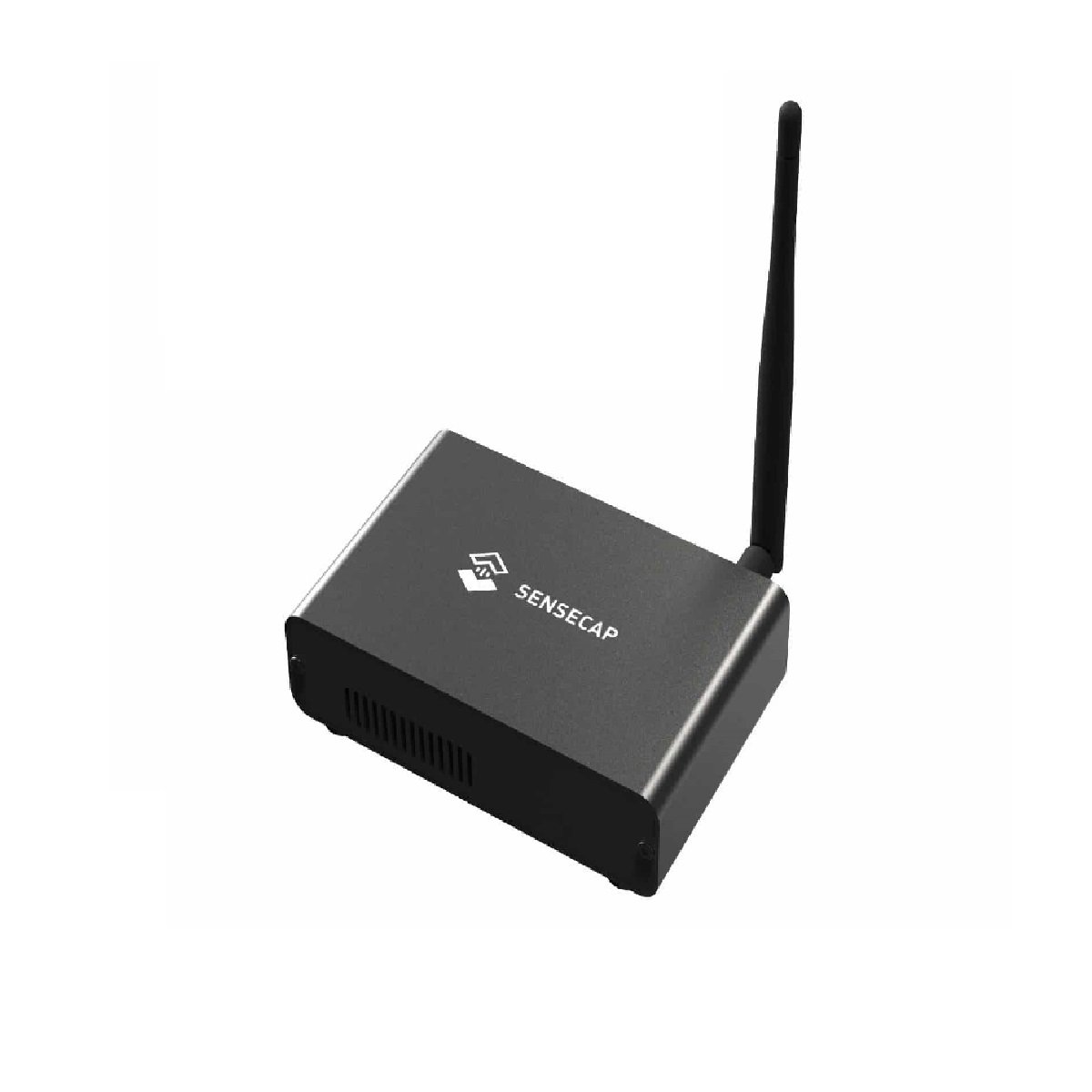

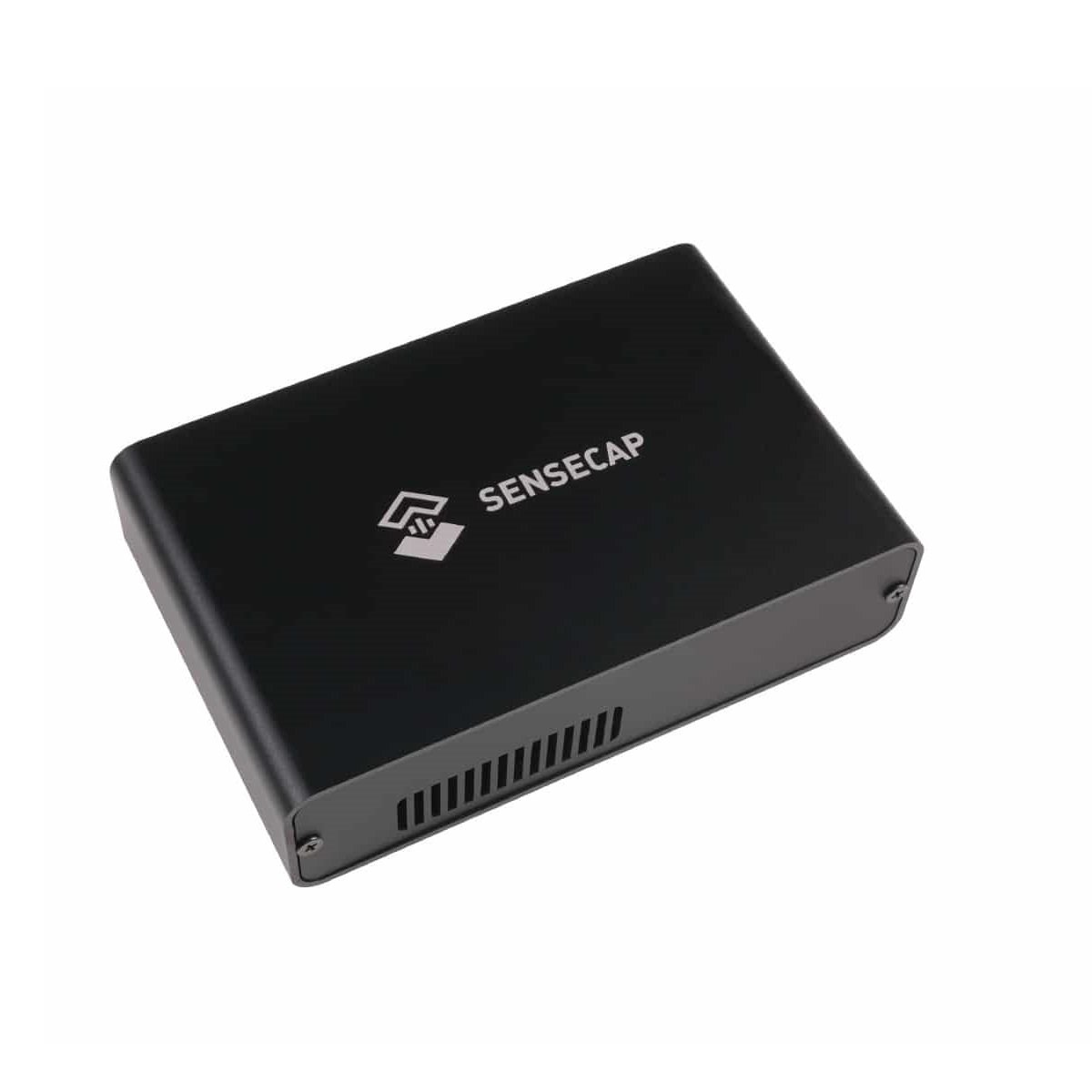

SenseCAP M1 LoRaWAN Indoor Gateway(4G RAM+SX1302) – EU868

SKU: rz24316997
In Stock

39,990.00

  1. Input Voltage DC 5V – 3A
  2. Processor Raspberry Pi 4 (Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
  3. RAM: 4GB
  4. Storage: 64GB MicroSD Card
  5. Wi-Fi 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
  6. Bluetooth 5.0, BLE
  7. LoRaWAN Supports Class A, C





In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

SenseCAP M1 is a high-performing, ready-to-use LoRaWAN indoor gateway compatible with Helium LongFi Network. SenseCAP M1 can connect to  The People’s Network within a few simple steps in minutes, and helps you build LoRa applications with low costs.



sad

SenseCAP M1 provides miles of wireless network coverage and data transmission capacity for LoRa/LoRaWAN devices. It helps you join and contribute to the infrastructure of The People’s Network while enjoying the benefits from the Helium community.

cx

Getting started with SenseCAP M1 LoRaWAN Indoor Gateway(4G RAM+SX1302) – EU868


Block Diagram:

cd


Features:

features final7.9 01 scaled 1

  1. Powered by Mature Hardware Solutions. Raspberry Pi 4(4G RAM, 64G storage) and  WM1302 (Semtech SX1302) baseband LoRa chip.
  2. Secure and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
  3. Handy Setup to Helium Network. Ready to go within simple steps.
  4. Automatic Online Upgrades. Automatic OTA upgrades, without manual operation.
  5. Remote Diagnosis. Built-in remote diagnostics mechanism, efficient online support.
  6. 64GB Large Storage. 64GB MicroSD card large storage, extending the lifetime of the gateway, fulfilling the memory requirement of potential upgrade.
  7. Efficient Cooling Solution. Aluminium enclosure with a heatsink and cooling fan inside, ensuring long-term and stable operation.
  8. Multiple Accessories. Fibreglass antenna, slider pad for sliding rod installation, upcoming outdoor enclosure, etc.
  9. FCC and CE Certificated. Available for personal and commercial use.

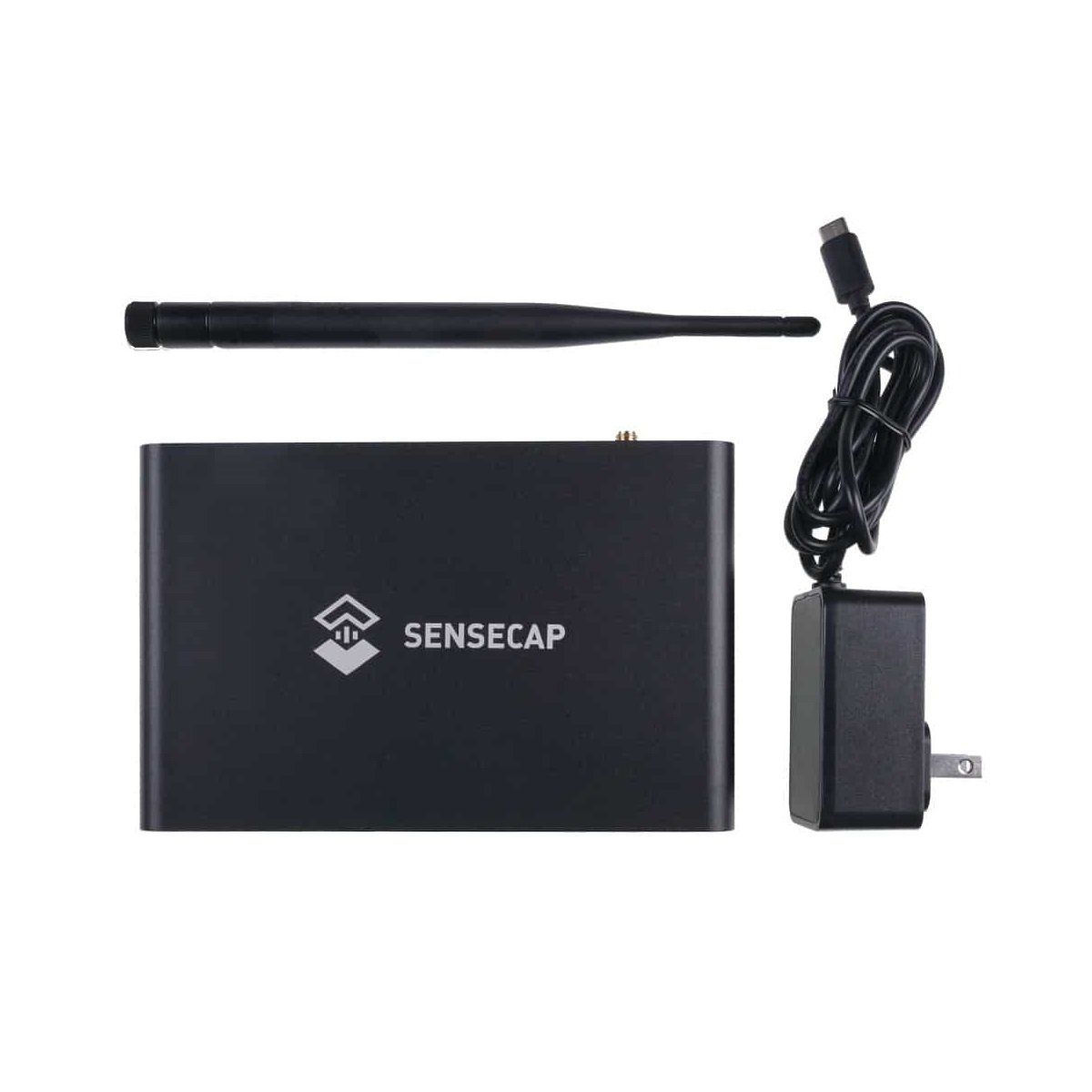

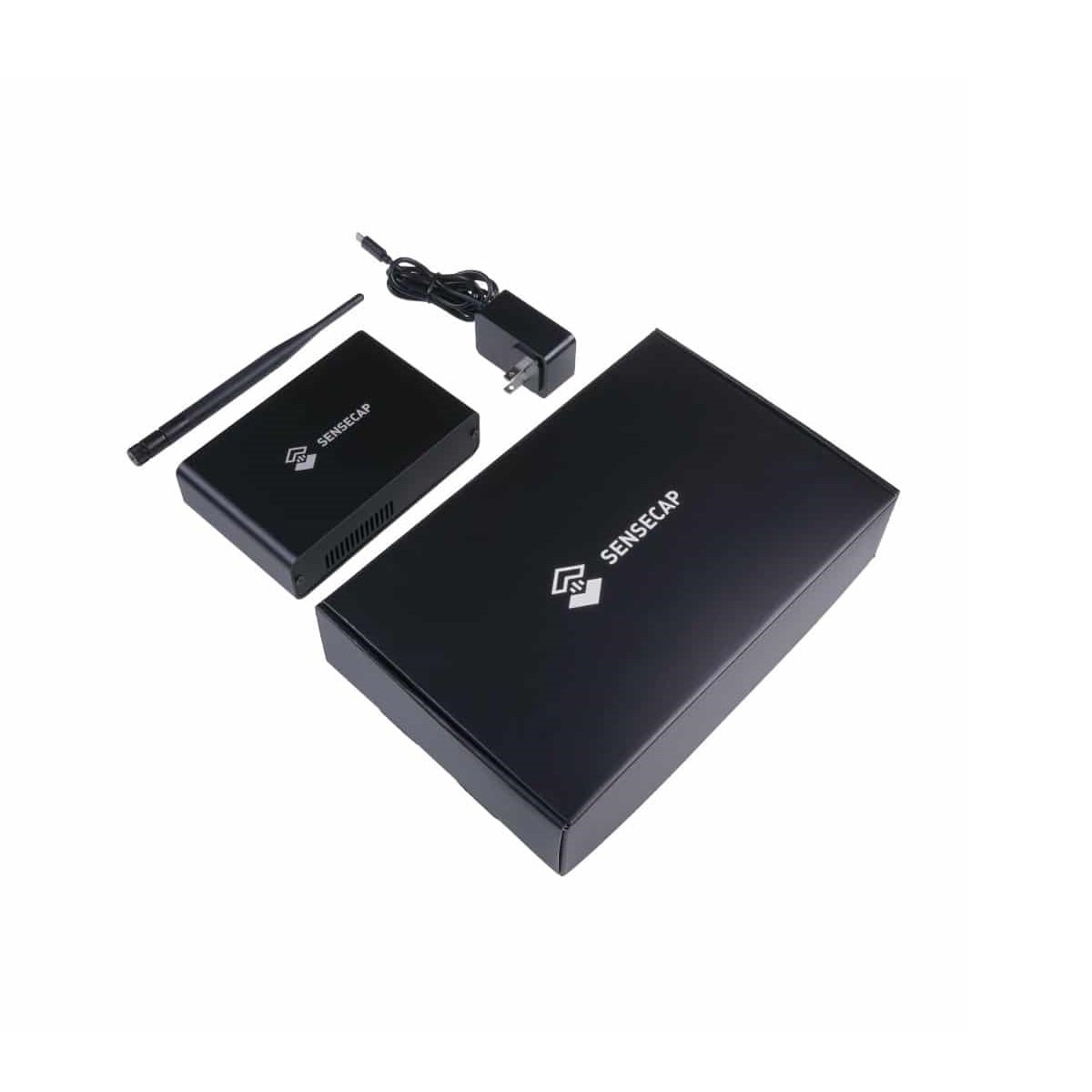

Package Includes:

1 x SenseCAP M1 LoRaWAN Indoor Gateway (EU868/US915)
1 x Power Adapter (EU/US)
1 x Antenna (EU868/US915)
1 x 64GB MicroSD Card
1 x Quick Start Guide;





Additional information

Processor

Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)

RAM

4GB

Storage

64GB MicroSD Card

Frequency

US915 Version: 902MHz ~ 928MHz – For USA and Canada

Sensitivity

125dBm @125KHz/SF7 -139dBm @125KHz/SF12

TX Power

Up to 26 dBm

Antenna Gain

US915: 2.6 dBi

Antenna Impedance

50 Ohm

Antenna Radiation Pattern

Omni-Directional

Connectivity

Wi-Fi 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless Bluetooth 5.0, BLE LoRaWAN Supports Class A, C

Input Voltage

DC 5V – 3A

Interfaces

USB Type-C (Power Supply) * 1 Ethernet RJ45 * 1 RP-SMA Female Antenna Connector* 1

Operating Temperature

0°C to 50°C

Relative Humidity

0% – 90% (non-condensing)

Heat Dissipation

Aluminum enclosure, a heatsink, and a cooling fan

IP Grade

IP20

GTIN

110991634
