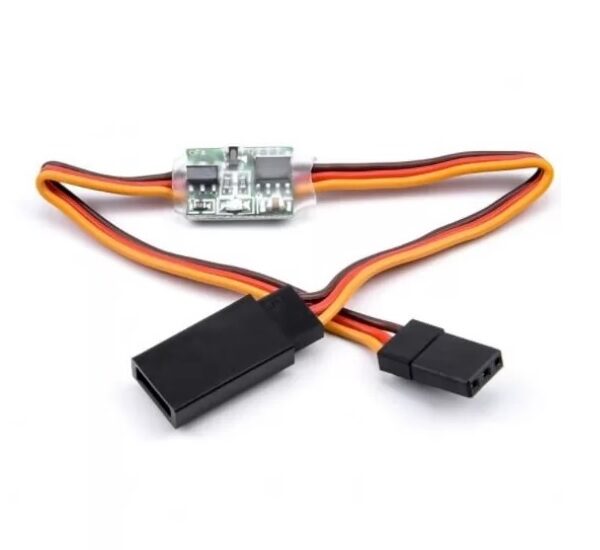

High voltageServo Signal Reverser
₹225.69 – ₹256.47 (Including tax)
SG 90 9G Mini Micro Servo plastic gear
₹582.15 (Including tax)
- Item Name: SG90 Mini Analog Servo
- Operating Speed (4.8V no load): 0.12sec/60 degrees
- Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
- operating voltage: 3.0-7.2V
- Temperature range: -30℃~60℃
- Dead band width: 7us
- Item size: 3.2 x 3 x 1.2cm
- Item weight: about 9g
- Connector wire length: 24.5cm
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹553.04 (Including tax) |
| 11 - 20 | 8% | ₹535.58 (Including tax) |
| 21 - 40 | 10% | ₹523.94 (Including tax) |
| 41 - 100 | 12% | ₹512.29 (Including tax) |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
20
People watching this product now!
Description
Get your start in robotics and make things move! This analogue micro servo will rotate up to 180 degrees (90 in each direction). You can expect it to operate the same as standard versions, but this micro servo is much smaller and can fit into tighter spaces. Its lightweight (9g) design will still output a high amount of power. This servo will work with any servo library, code, or compatible hardware.
The SG90 mini servo is lightweight, high-quality and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat and truck use.
Each servo comes with 3 arms and screws and with pre-soldered female wires. When using servos, we recommend using pin 9 or 10, a standard in the Servo library.
It’s easy to fry servos, make sure you plug it into your brain correctly.
PWM (Signal) is Orange
VCC (Power) is Red
GND (Ground) is Brown
Features:Â
- High quality and high-cost performance.
- All Nylon Gear.
- 245mm connector wire.
- Large stall torque of 1.6 Kg.
- Small size and lightweight.
- With 3 sets of servo horns and fittings.
Package Includes :
1 x SG 90 9G Mini Micro Servo plastic gear
Additional information
| Model |
SG90 Mini Analog Servo |
|---|---|
| Operating Voltage (VDC) |
3.0-7.2V |
| Operating Speed @4.8V |
0.12sec/60 degrees |
| Stall Torque @ 4.8V (Kg-Cm) |
1.2kg |
| Stall Torque @6.6V (Kg-Cm) |
1.6 kg |
| Operating Temperature (°C) |
-30℃~60℃ |
| Dead Band Width ( μs) |
7us |
| Cable Length (cm) |
24.5cm |
