Product details

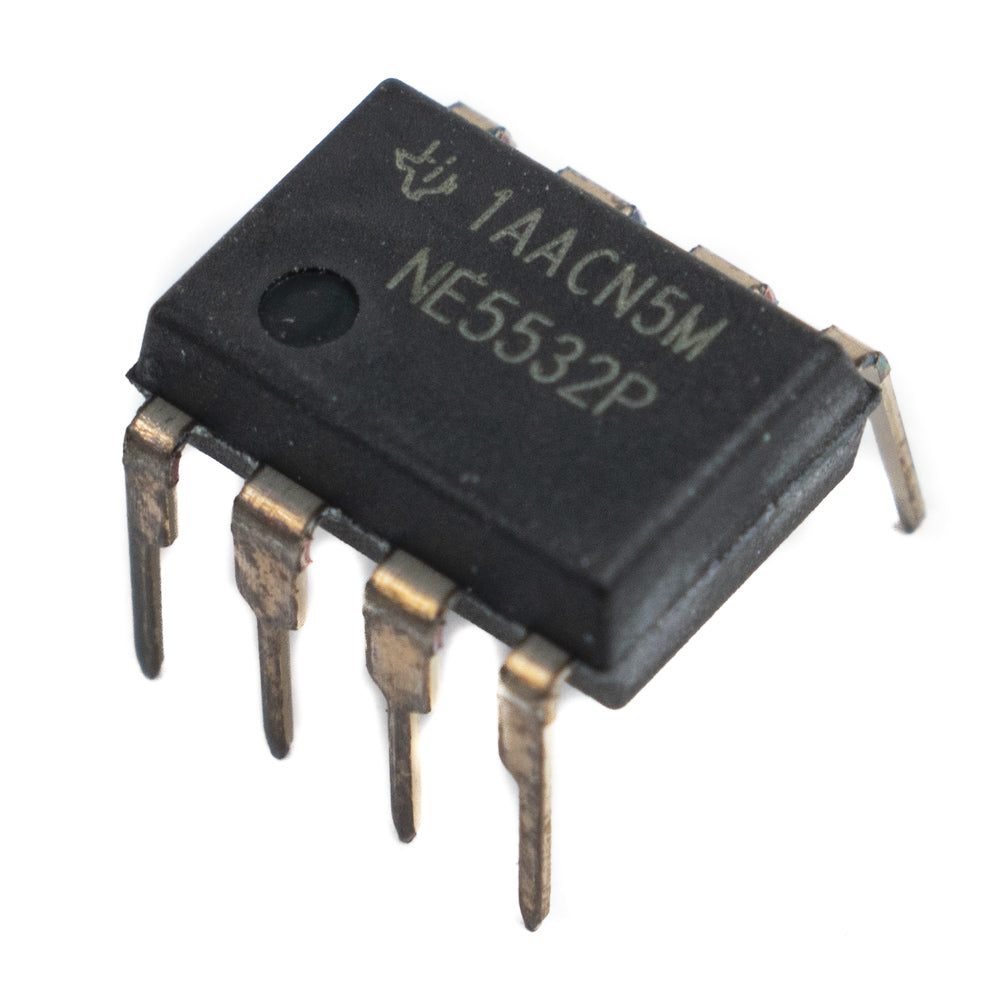

The NE5532 is a high-performance operational amplifier with good DC and AC characteristics. It has low noise, a high output drive capability, wide bandwidths, low distortion, a fast slew rate, input-protection diodes, and output short-circuits protection. Internally, it is operative for unity-gain operation. Maximum limitations for comparable input noise voltage have been defined. Internally, unity-gain and maximum-output-swing amplifiers are corrected for unity-gain operation. These devices have maximum equivalent input noise voltage limits.
Features
- Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz
- Unity-Gain Bandwidth: 10 MHz
- Common-Mode Rejection Ratio: 100dB
- High DC Voltage Gain: 100 V/mV
- Peak-to-Peak Output Voltage Swing 26V with Vcc=±15 V and Rl = 600Ω
- High Slew Rate: 9V/µs
Applications
- AV Receivers
- Embedded PCs
- Netbooks
- Video Broadcasting and Infrastructure: Scalable
- Platforms
- DVD Recorders and Players
- Multichannel Video Transcoders
- Pro Audio Mixers
Specifications
| Model | NE5532 |
| Brand | Texas Instruments |
| Number of Channels | 2 |
| Total supply voltage (Max) (+5V=5, +/-5V=10) | 10 |
| Total supply voltage (Min) (+5V=5, +/-5V=10) | 30 |
| Rail-to-rail | No |
| Unity Gain BW | 10MHz |
| Slew Rate | 9V/µs |
| Vos (offset voltage @ 25° C) (Max) | 4mV |
| Iq per Channel | 4mA |
| Equivalent Input Noise Voltage (Vn at 1 kHz) | 5nV/√Hz |
| Operating Temperature | 0°C to 70°C |
| Input bias current (Max) | 200pA |
| CMRR | 100dB |
| Output current | 38mA |
| Quantity | 50 |
| Country of Origin | China |
