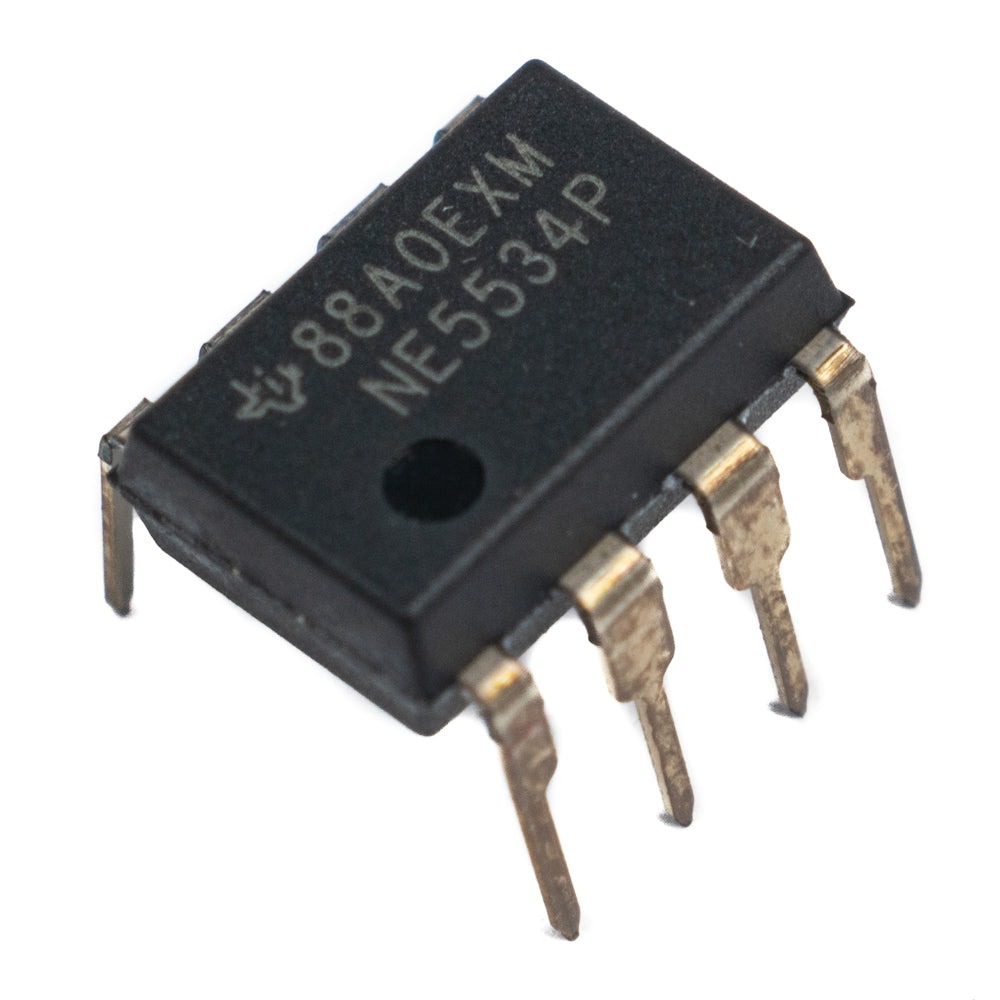

Texas Instruments NE5534 DIP-8 Low-Noise Operational Amplifier IC

0 Reviews
Available on backorder

Original price was: ₹46.44.Current price is: ₹37.44. (Excluding tax)

(-19%)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%35.57 (Excluding tax)
11 - 208%34.45 (Excluding tax)
21 - 4010%33.70 (Excluding tax)
41 - 10012%32.95 (Excluding tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)

Product details

The NE5534 devices are high-performance operational amplifiers combining excellent DC and AC characteristics. Some of the features include very low noise, high output drive capability, high unity-gain and maximum-output swing bandwidths, low distortion, and high slew rate. These operational amplifiers are compensated internally for a gain equal to or greater than three. Optimisation of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices provide input-protection diodes, output short-circuits protection and offset voltage nulling through the BALANCE and COMP/BL pins.

Features

  • Equivalent Input Noise Voltage
  • 3.5 nV/√Hz
  • Unity-Gain Bandwidth: 10 MHz
  • Common-Mode Rejection Ratio: 100dB
  • High DC Voltage Gain 100 V/mV
  • Peak-to-Peak Output Voltage Swing 32V
  • With Vcc=+18 V and R = 600 Q
  • High Slew Rate 13 V/µs
  • Wide Supply-Voltage Range: 3V to +20 V
  • Low Harmonic Distortion
  • Offset Nulling Capability
  • External Compensation Capability

Applications

  • Audio Preamplifiers
  • Servo Error Amplifiers
  • Medical Equipment
  • Telephone Channel Amplifiers

Datasheet

Specifications
Model NE5534
Brand Texas Instruments
Input Offset Voltage @Vo=0, Rs=50Ω, Ta=25°C 5mV
Input Offset Current @Vo=0 400nA
Input Bias Current 2000nA
Maximum Peak to peak Output Voltage Swing 32V
Maximum Output Swing bandwidth 200kHz
Unity Gain Bandwidth 10 MHz
Input Resistance 100kΩ
Equivalent Input Noise Voltage (Vn at 1 kHz) 3.5 nV/√Hz
Operating Temperature 0°C to 70°C
CMRR 100dB
Output current 38mA
Slew Rate @Cc= 22PF  13V/us
Quantity 50
Country of Origin China
