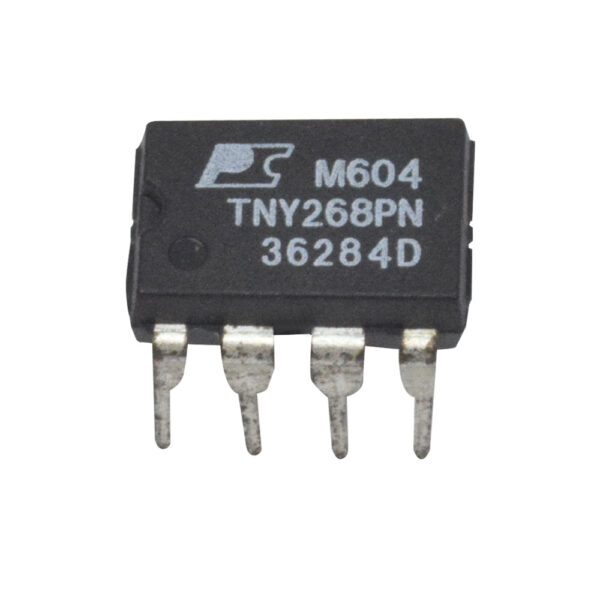

TNY268PN Integrated Offline Switching IC

Original price was: ₹84.58.Current price is: ₹68.30. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%64.89 (Including tax)
11 - 208%62.83 (Including tax)
21 - 4010%61.47 (Including tax)
41 - 10012%60.09 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

11 People watching this product now!
Description

The controller and the power switch are contained in a single package of the integrated offline switching IC known as the TNY268PN. The TYN268PN is mainly used as a low-side, high-voltage power MOSFET connected to the transformer. Only two additional pins are required: the EN/UV pin, which also serves as the feedback pin, and the bypass pin for the internal power supply, which must be linked with the proper capacitor. When the breakdown voltage of the output Zener diode is surpassed, an optocoupler in the feedback network is engaged. An RC network is connected to the drain of the IC to prevent voltage spikes from damaging the internal power switch. The IC’s built-in 6.4V Zener diode limits the drain-source voltage to permissible ranges. The switch’s internal current limit is 500mA.

Features.

  • It has an offline switcher with full integration

  • Its current limit is 500mA

  • Its switching frequency is 132kHz

  • It provides 23W output power

  • Built-in current and overheating protection
Specification
ModelTNY268PN
TypeSwitching IC
PackageDIP 8B
Frequency132kHz
Maximum supply voltage 265V
Maximum output current880mA
Total power dissipation23W
No of pins 7
Country of OriginChina
