TNY277PN Tiny switch

Original price was: ₹85.49.Current price is: ₹69.21. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%65.74 (Including tax)
11 - 208%63.68 (Including tax)
21 - 4010%62.29 (Including tax)
41 - 10012%60.91 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

13 People watching this product now!
Description

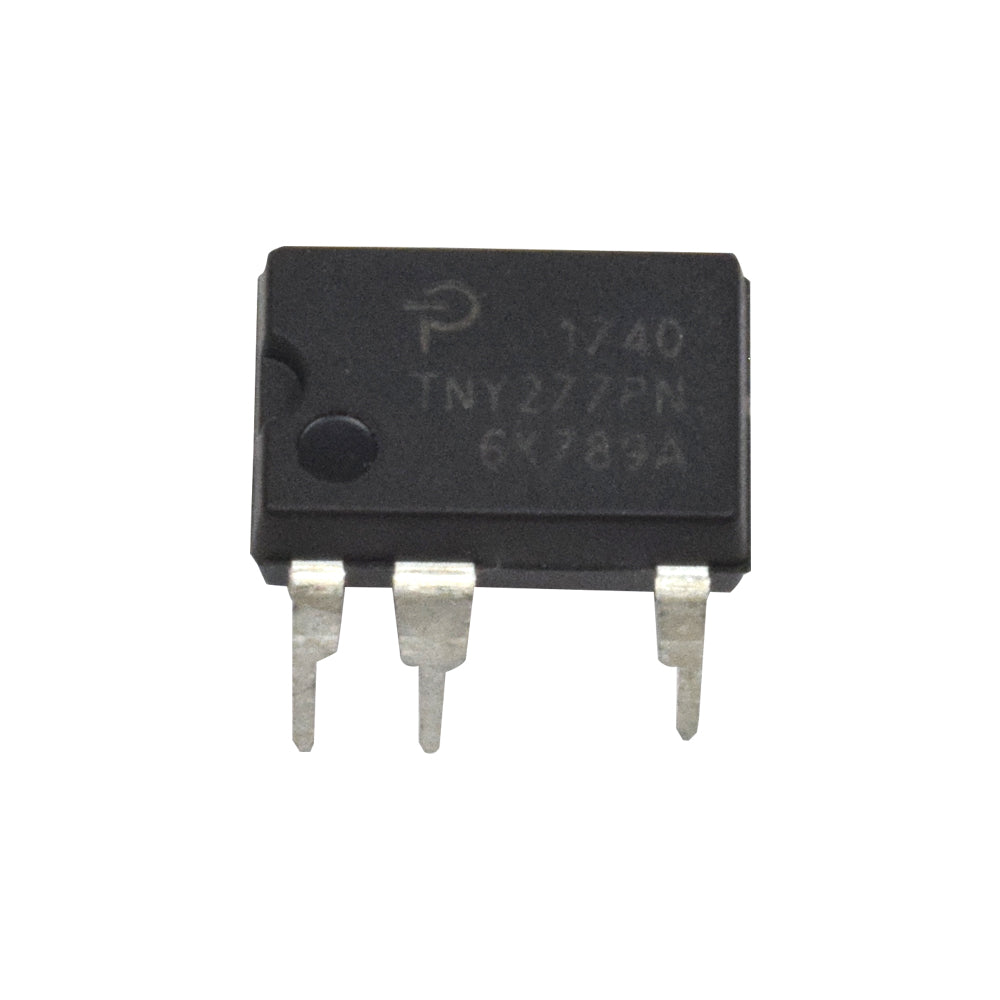

TNY277PN  is  a type of IC this IC has 7 pin its a tiny switch IC in which one pin is not present its trough hole components. It has manufactured by Power integration. Tiny Switch-III combines a high-voltage power MOSFET switch with a power supply controller in one device. Unlike conventional PWM (pulse width modulator) controllers, it uses a simple ON/OFF control to regulate the output voltage. The controller consists of an oscillator, enable circuit (sense and logic), current limit state machine, 5.85 V regulator, BYPASS/ MULTI-FUNCTION pin under voltage, overvoltage circuit, and current limit selection circuitry, over-temperature protection, current limit circuit, leading edge blanking, and a 700 V power MOSFET. Tiny Switch-III incorporates additional circuitry for line under voltage sense, auto-restart, adaptive switching cycle on-time extension, and frequency jitter.

Features

  • DIP8/SO8 Packages
  • Accurate hysteretic thermal shutdown protection with automatic recovery eliminates need for manual reset
  • Improved auto-restart delivers <3% of maximum power in short-circuit and open loop fault conditions
  • Line under voltage detect threshold set using a single optional resistor
  • It has 8 pins
  • Output overvoltage shutdown with optional Zener
Specifications
ModelTNY277PN
BrandPower electronics
Type IC
Output voltage12V
Output Power18W
Switching Frequency132KHz
Vin85AC
Storage Temperature Range-40°C to 150°C
Country of OriginChina
