Description

This TXB0104D 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5- V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA must not exceed VCCB. When the OE input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE must be tied to GND through a pulldown resistor The current sourcing capability of the driver determines the minimum value of the resistor. The TXB0104D device is designed so the OE input circuit is supplied by VCCA. This device is fully specified for partial power- down applications using I OFF. The I OFF circuitry disables the outputs, which prevents damaging current back-flow through the device when the device
is powered down.

Application:

1. Headsets

2. Smartphones

3. Tablet

4. Desktop PC

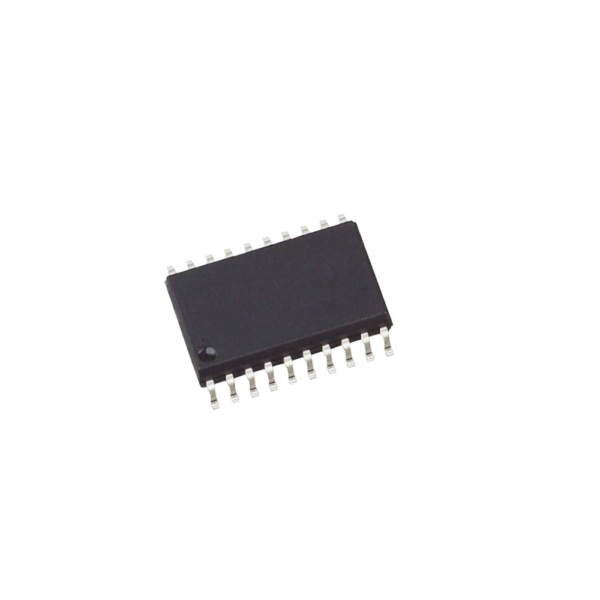

Note: Actual product can vary from shown image

Features:

1. Low power consumption
2. I OFF supports partial power-down mode operation
3. Light weight
4. Compact size

Specifications:

1. Product: Voltage Level Translator Bidirectional
2. IC Model: TXB0104D
3. Supply Voltage: 1.2 V to 3.6
4. Packages: SOIC (14)
5. Dimension: 8.65 mm × 3.91 mm
6. Pins: 14
7. VCC isolation feature: if either VCC input ss at GND

Note: For more info refer to Datasheet

Packages Includes:

1 x TXB0104D Voltage Level Translator Bidirectional
