Unsoldered Nano V3.0 ATmega328P 5V 16MHz CH340 Type-C with WhiteType-C Cable 30cm

18 People watching this product now!

SKU: rz24318533 Category: Boards Compatible with Arduino

Description

This Arduino-compatible Nano V3.0 micro-controller is a small, complete, micro-controller board based on the ATmega328 MCU. It has more or less the same functionality as the Arduino Duemilanove, but in a smaller package. It lacks only a DC power jack, and uses the more compact Mini USB (Mini-B) connector instead of a standard USB connector.

It is compatible with Arduino programs and the Arduino IDE. This version of the Nano uses the CH340G USB interface controller.

It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

Note: If you are getting the error while uploading the code in the Arduino Nano or not detecting the port need to upload the bootloader.

Features:

CH340G USB bus converter chip replaces FT232RL
Operating Voltage（logic level): 5V
8 analog inputs ports: A0 – A7
14 Digital input / output ports: TX, RX, D2 – D13
6 PWM ports: D3, D5, D6, D9, D10, D11
1 pair of TTL level serial transceiver ports: RX / TX
Uses Atmel Atmega328P-AU MCU with bootloader installed
Support USB download and Power over Mini-B Mini USB connector
Recommended input voltage: 7V – 12V DC on pin 30 or 5V on pin 27
Maximum input voltage limits: 6V – 20V
Supports ISP download
Supplied with connector pins (headers), not soldered to the board for user flexibility

Package Includes:

1 X Nano V3.0 16MHz CH340
1 X Type-C Cable 30cm

Additional information

Model	Arduino NANO
Memory	32 KB of Which 2 KB Used By Bootloader
Operating Voltage(V)	5V
Max Supply Voltage (V)	6V – 20V
Processor	ATmega328
USB Connector	2.0 Ports Mini USB
Digital I/O Pins	Digital I/O Pin 22
Cable Type	TYPE C

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

Shipping and Delivery Policy

1. Shipping Process:

Orders are processed within 1-2 business days after payment confirmation.
Delivery time varies based on location and selected shipping method, typically ranging between 3-7 business days.
We partner with trusted courier services to ensure timely and safe delivery.

2. Shipping Charges:

Shipping charges are calculated at checkout based on the delivery location and package weight.
Free shipping may be available for orders above a specified amount, as mentioned on our website.

3. Order Tracking:

Once your order is shipped, you will receive a tracking ID via email or SMS to monitor the shipment status.

4. Delivery Address:

Please provide a complete and accurate delivery address to avoid delays.
We are not responsible for delivery failures due to incorrect or incomplete address details provided by the customer.

5. Delivery Issues:

If a package is delayed, lost, or damaged during transit, please contact our support team immediately.
Claims for lost or damaged items must be reported within 48 hours of delivery.

6. No Return Policy for Opened/Soldered Products:

We do not accept returns for products that have been opened, used, or soldered.
Ensure you verify product compatibility before purchase, as returns will only be accepted for unopened and unused items in their original packaging.

7. Refund Policy:

Refunds will be issued only for canceled orders before shipment or wrong/damaged items received (subject to investigation).
No refunds or replacements for products that have been tampered with, soldered, or physically damaged by the customer.

Adafruit Feather M4 CAN Express with ATSAME51

Adafruit Feather M4 CAN Express with ATSAME51

Out of stock

₹3,939.53 – ₹4,476.75 (Including tax)

SKU: rz24320970

Product Type	Development board
Model Type	ATSAME51
SPI Flash	2Mb
Voltage Regulator	3.3V
USB Type	USB Type-C

Adafruit Feather M4 Express – Featuring ATSAMD51 – ATSAMD51 Cortex M4

Adafruit Feather M4 Express – Featuring ATSAMD51 – ATSAMD51 Cortex M4

Out of stock

₹3,163.33 – ₹3,594.69 (Including tax)

SKU: rz24320992

Microcontroller	ATSAMD51
Operating Voltage (VDC)	3.3 ~ 5
Flash Memory	2mb
USB	MINI USB
Clock Speed	32.768 kHz (RTC)

Adafruit QT Py – SAMD21 Dev Board with STEMMA QT

Adafruit QT Py – SAMD21 Dev Board with STEMMA QT

Out of stock

₹1,192.97 – ₹1,355.65 (Including tax)

SKU: rz24320938

Model	ATSAMD21E18 32-bit Cortex M0
Flash Memory	256 KB (internal)
RAM	32KB
USB Type	USB Type-C

Arduino Pro Mini 328 – 3.3V/8 MHz

Out of stock

₹2,148.29 – ₹2,441.25 (Including tax)

SKU: rz2435662

Microcontroller	ATmega328
Clock Speed	8 MHz
Input Voltage Range(VDC)	3.3V up to 12V
Analog I/O Pins	8
Max Output Current (mA)	150mA
Digital I/Os	14

DFRduino Nano (Arduino Nano Compatible)

Out of stock

₹1,372.09 – ₹1,559.19 (Including tax)

SKU: rz2436762

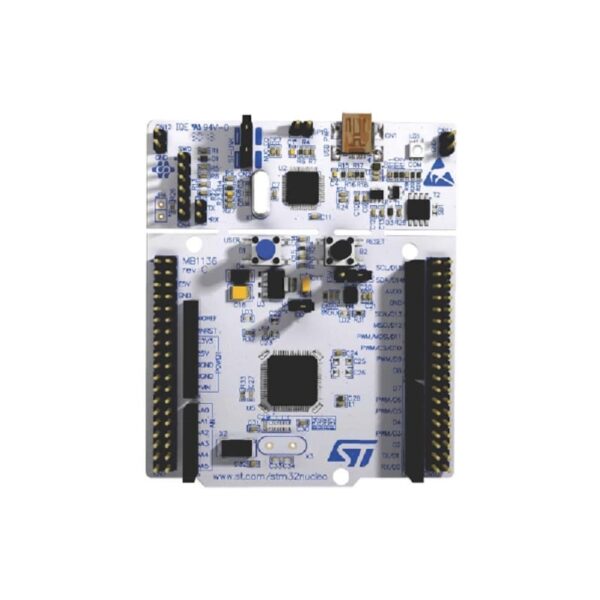

STMICROELECTRONICS Development Board, STM32F091RC MCU, mbed Enabled, Arduino Uno V3 and ST Morpho Connectivity

Out of stock

₹1,431.79 – ₹1,627.05 (Including tax)

SKU: rz2435976

Model	STM32F091RC MCU
Voltage	3.3 V , 5 V , 7 – 12 V
Supported by	wide choice of Integrated Development Environments (IDEs) including IAR , Keil , GCC-based IDEs
Debugger	On-board ST-LINK/V2-1 debugger/programmer with SWD connector.
Two types of extension resources	Arduino Uno Revision 3 connectivity STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
Applications	Consumer Electronics , Embedded Design & Development , Portable Devices , Hobby & Education

Uno R3 Board without Cable

Out of stock

₹703.37 – ₹799.27 (Including tax)

SKU: rz2436496

Analog I/O Pins	6
Clock Speed	16 MHz
Color	Blue
DC Current per I/O Pin (mA)	50
Digital I/O Pins	14 (of which 6 provide PWM output)
EEPROM	1 KB (ATmega328)
Flash Memory	32 KB
Input Voltage(Recommended)	7-12V
Operating Voltage (VDC)	5
PWM Output Pins	6
SRAM	2
Weight (gm)	26

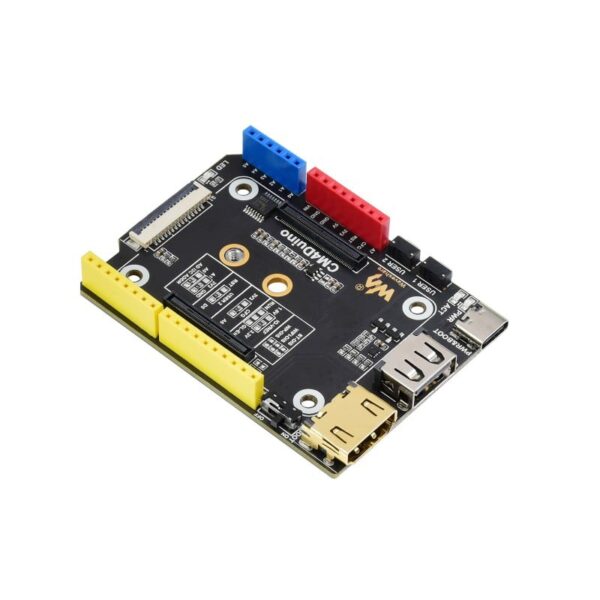

Waveshare Arduino Compatible Base Board For Raspberry Pi Compute Module 4 HDMI USB M.2 Slot 3
