Description

If you’re tired of needing a parallel port and an outdated PC to run Mach3, this is the solution you’ve been waiting for! Our newest interface board runs through any standard USB port for communication. You simply need to install the card’s plugin for Mach3 and follow the setup instructions.

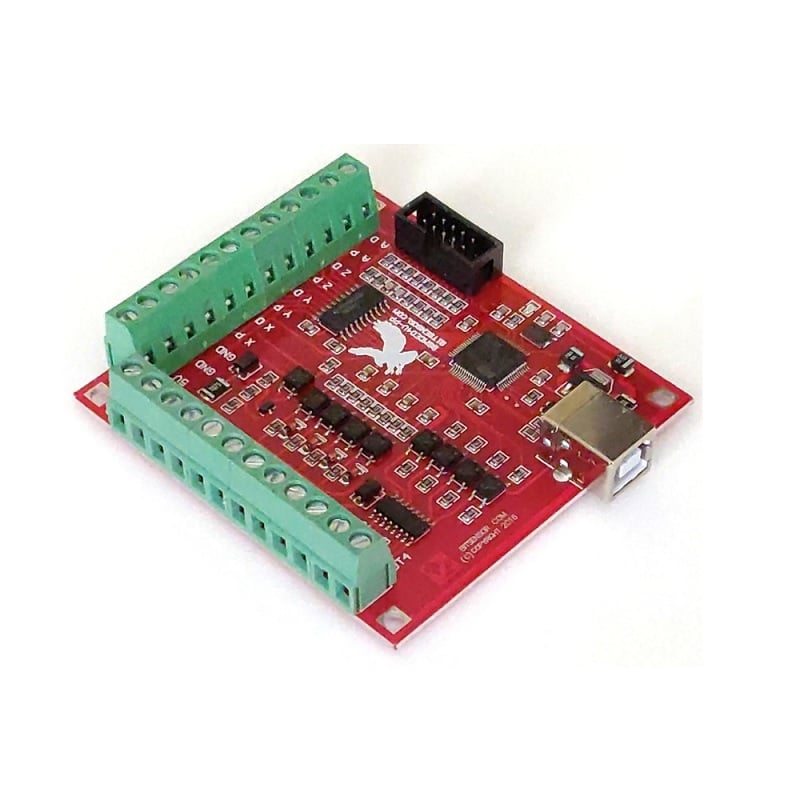

This Mach3 USB Controller will run Mach3 through a standard USB port on a PC. You can use Windows 10 and older Windows version 32-bit or 64-bit.

Connection Diagram:

Features and Specifications:

1. Supports up to 4- axis linkage control. The fourth axis can be set as driven axis
2. Output pulse 100K , using the smallest error interpolation algorithm, high precision machining
3. USB interface for any PC compatible computer with USB interface for netbooks, laptops, desktops, and tablets
4. Compatible in windows 7/8/10.
5. Drive-free design, to better compatible with a variety of hardware and software environment
6. Support auto-zero
7. The driven shaft automatically adjusts to zero
8. Support automatic knife
9. Support emergency stop input
10. Support limit switch access
11. Support spindle control (PWM mode and relay mode)
12. Provides 4 channels with optocoupler isolation digital signal input
13. Provides up to 12 digital signal input
14. provides 4 channels with optocoupler isolation relay output
15. Support hand wheel interface
16. Anti-jamming design, the import of industrial components assembly, high reliability

Package Includes:

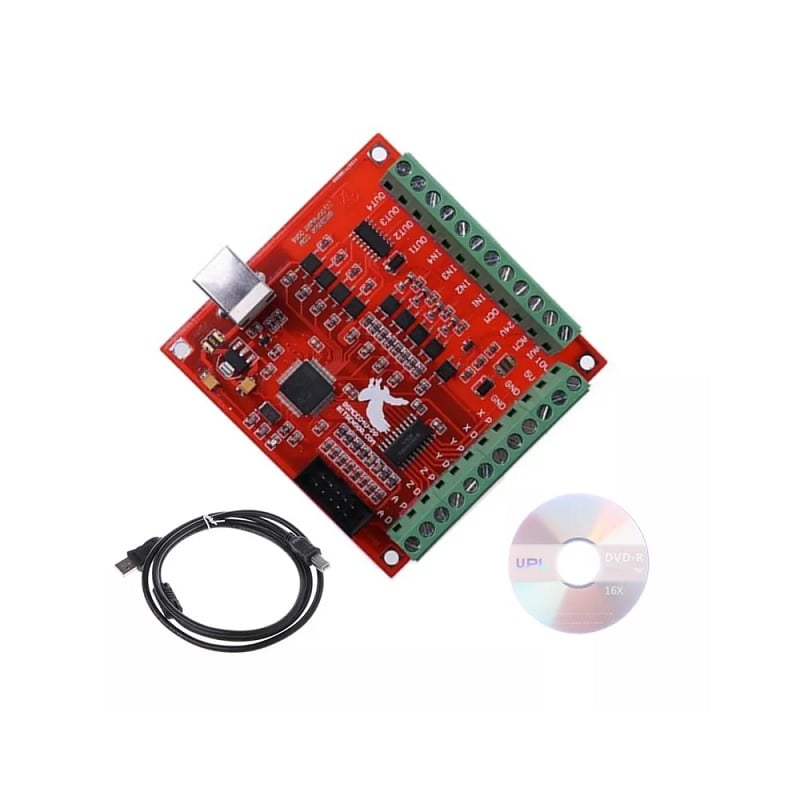

1 x USB Interface MACH3 Motion Control Card Flying Carving Card +USB Cable+CD
