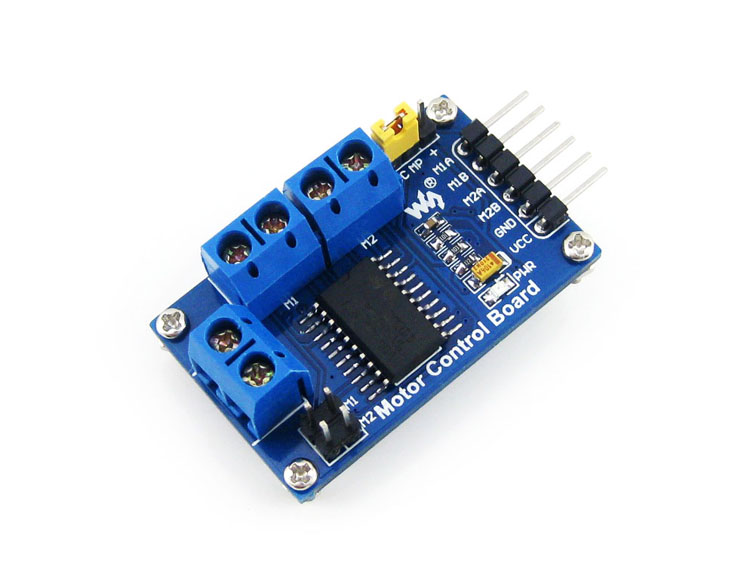

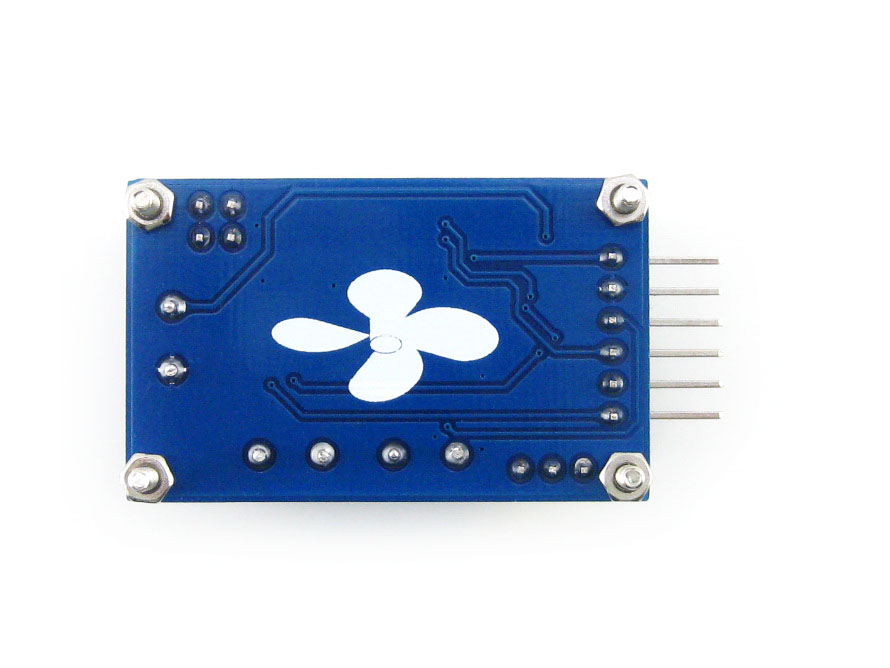

Waveshare Motor Control Board
₹499.00
- operating voltage:5V
- motor drive voltage:4.5V-36V
- Dimension : 43mm*27mm
- Mounting hole size: 2mm
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist
+91-7231900002 Connect on Whatsapp
Description

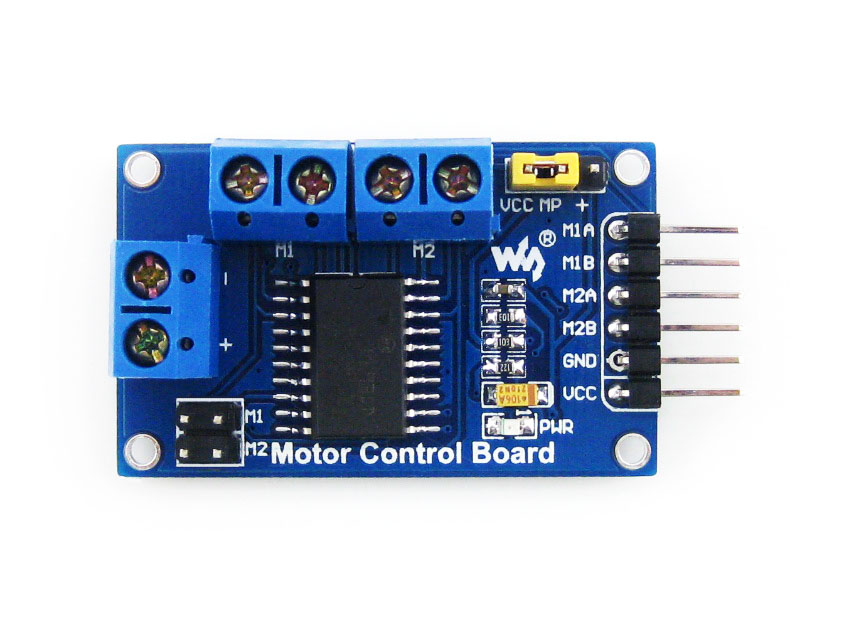

This is a Waveshare Motor Control Board. The Control Board consists of onboard dual H-bridge driver L293D. It’s easy to use Arduino or another development platform to drive the motor by this diver board. The motor driver drives 2 DC motors or 1 stepping motor at one time.

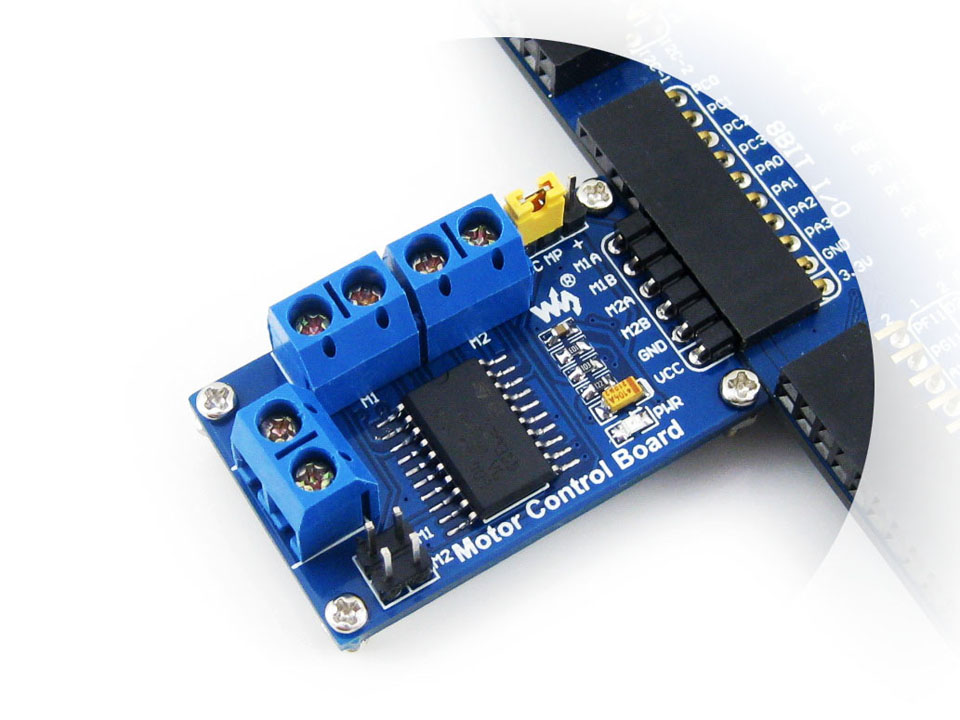

How to Use:
- M1A/M1B: connects to MCU digital IO, motor1 rotation controlling
- M2A/M2B: connects to MCU digital IO, motor2 rotation controlling
- GND: ground
- VCC: 5V power supply
| M1A/M2A | M1B/M2B | M1/M2 |
| 1 | 0 | Counterclockwise/Clockwise |
| 0 | 1 | Clockwise/Counterclockwise |
| 1 | 1 | Stop |
| 0 | 0 | Stop |
Features:
- Onboard dual H-bridge driver L293D
- Drives 2 DC motors or 1 stepping motor at one time
- 600mA output current (peak 1.2A) per single bridge
- ESD protection
Package includes:
1 x Waveshare Motor Control Board
Additional information
| Operating Voltage (VDC) | 5 |
|---|---|
| Max. Output Current (A) | 600mA |
| Mounting Holes Diameter (mm) | 2 |
| Storage condition (℃) | -25~130 |
| Length (mm) | 50 |
| Width (mm) | 25 |
| Height (mm) | 11.4 |
| Weight (gm) | 10 |
