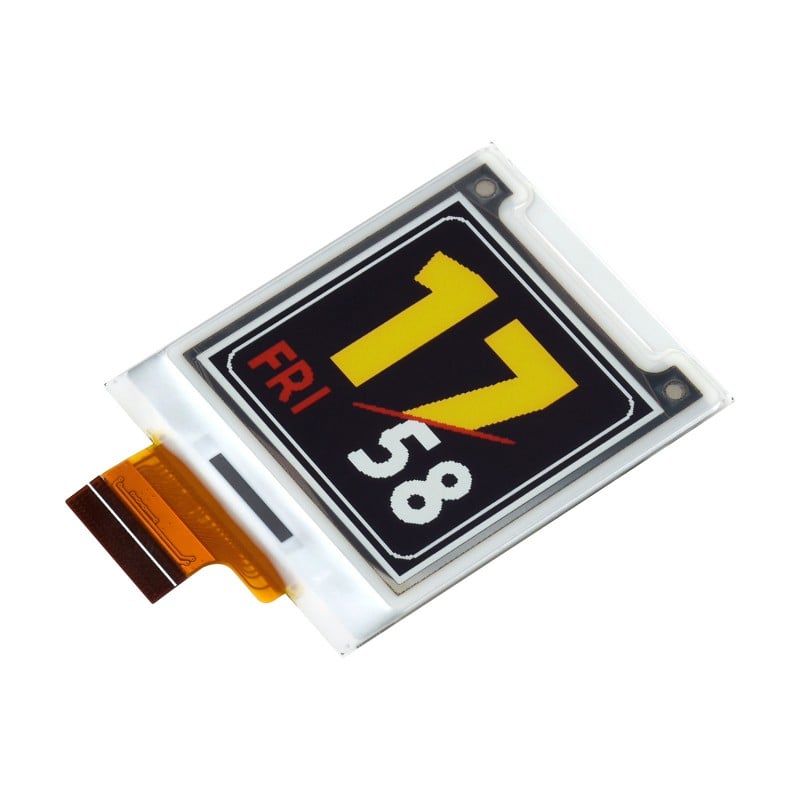

Waveshare 1.64inch square E-Paper (G) Display 168×168 Red/Yellow/Black/White

SKU: rz24310484
In Stock

1,249.00

  1. Brand: Waveshare
  2. Product: 1.64inch square E-Paper (G) raw display, 168 × 168
  3. Operating Voltage: 3.3V
  4. Display Color: Red/Yellow/Black/White
  5. Interface: 3-wire SPI, 4-wire SPI
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

1.64inch Square E-Paper (G) Raw Display, 168 × 168, Red/Yellow/Black/White E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in the clear fluid will move to sides of microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.


Useful link:

To do Hardware and Software setup, please follow this tutorial.


Features:

  1. No backlight keeps displaying last content for a long time even when power down
  2. Ultra-low power consumption, basically power is only required for refreshing
  3. Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Package Includes:

1 x Waveshare 1.64inch square E-Paper (G) Display

Additional information

Operating Voltage

3.3V

Display Color

Red/Yellow/Black/White

Interface

3-wire SPI, 4-wire SPI

Grey Scale

2

Outline Dimensions

45.5 × 36.4 × 0.91mm

Full  Refresh Time

12s

Display Size

29.568 × 29.568mm

Refresh Power

<57mW (typ.)

Dot Pitch

0.176 × 0.176mm

Stand Current

<0.01uA (almost none)

Resolution

168×168 pixels

Viewing Angle

>170°
