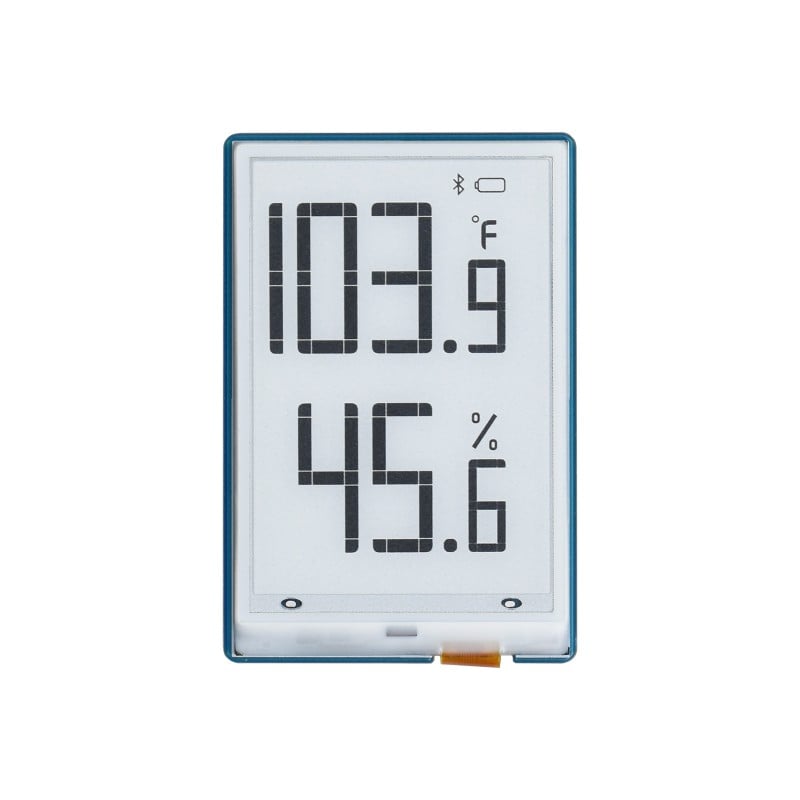

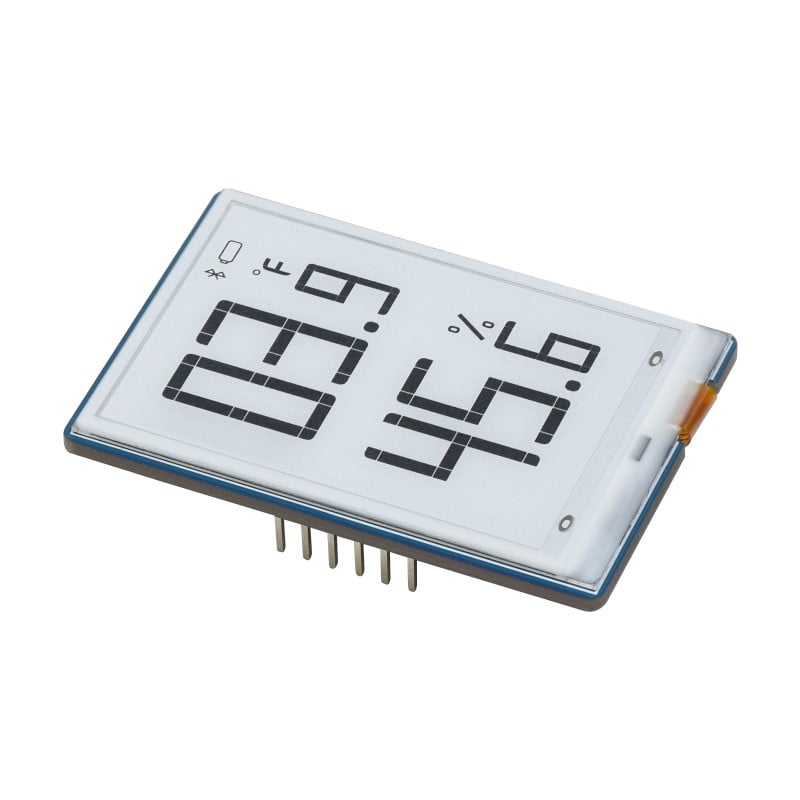

Waveshare 1.9 inch Segment E-Paper Module for Temperature and humidity meter, Humidifier, Digital Meter

18 People watching this product now!

SKU: rz24310033 Category: e-Ink Display

Description

1.9-inch Segment E-Paper Module, 91 Segments, I2C Bus, Ideal for Temperature And Humidity Meter, Humidifier, Digital Meter. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in the clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Features:

No backlight keeps displaying the last content for a long time even when power down
Ultra-low power consumption, basically power is only required for refreshing

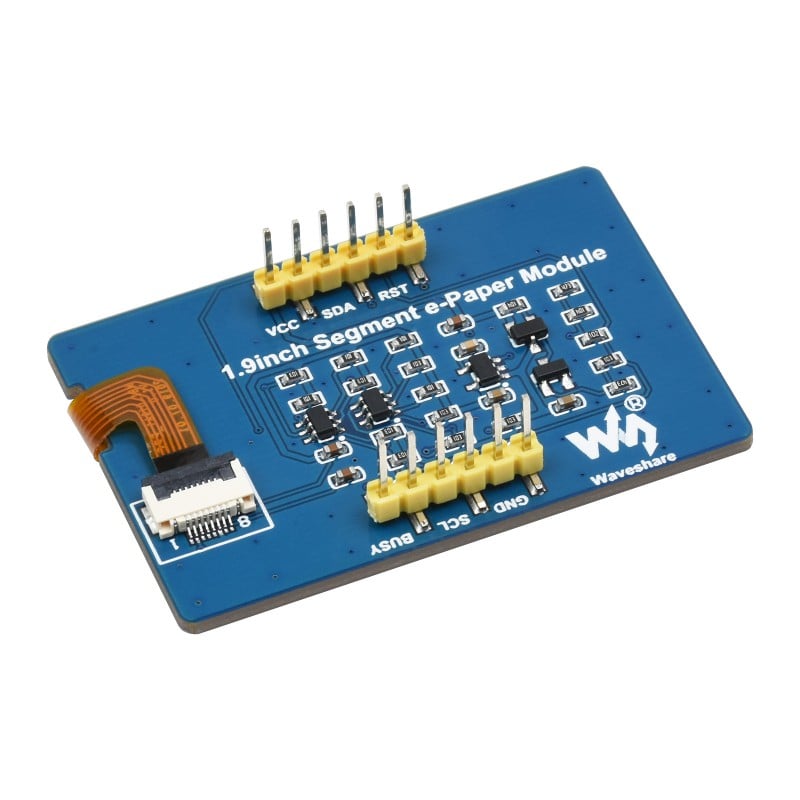

I2C interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.
Onboard MOS voltage translating circuit, compatible with 3.3V/5V MCUs

Package Includes:

1 x 1.9inch Segment e-Paper Module

1 x 6 Pin Cable

Additional information

Operation Voltage	3.3V/5V
Interface	I2C
Display Size	41.35 × 28.11 mm
Segments	91
Display Color	Black/White
Grey Scale	2
Partial Refresh Time	0.3s
Full Refresh Time	2s
Refresh Power	<5mW (typ.)
Standby Current	STANDBY CURRENT
Viewing Angle	>170°
Length (mm)	51
Width (mm)	31
Weight (gm)	4
