Hey geeks, here is one more revolutionary product in the Waveshare E-paper display range. This is an NFC-powered 1.54inch e-Paper Module, with a 200×200 resolution that takes data like images, text, or any craft you want to show on your display wirelessly via NFC. It can be done through the mobile phone itself via android and ios app.

Click here and Scan the QR code and get the latest NFC app for your android phone

Useful link:

To use this module, please follow this tutorial.

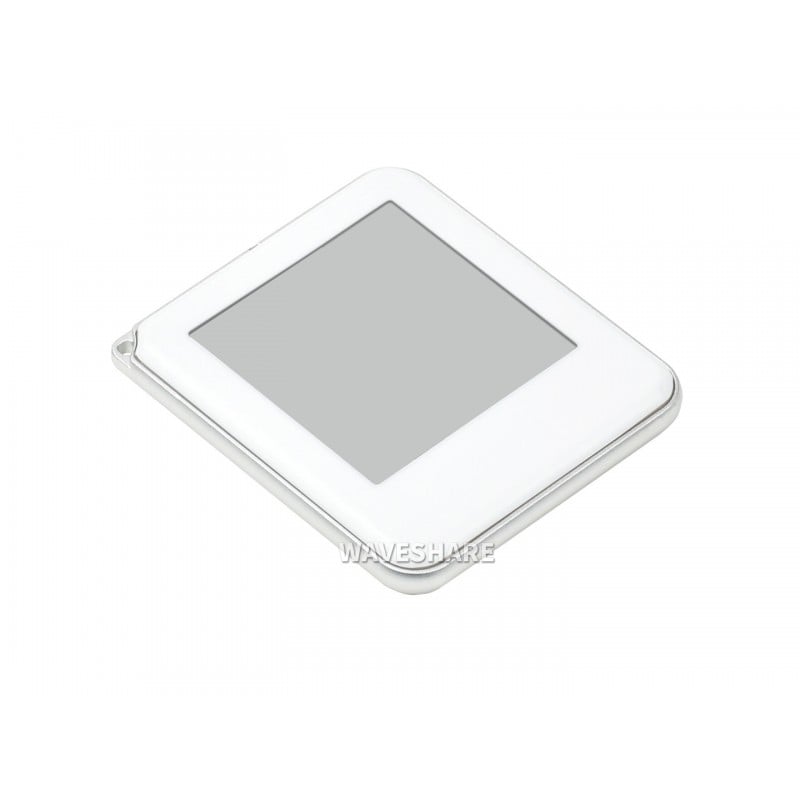

1.54″ Passive NFC-Powered E-Paper

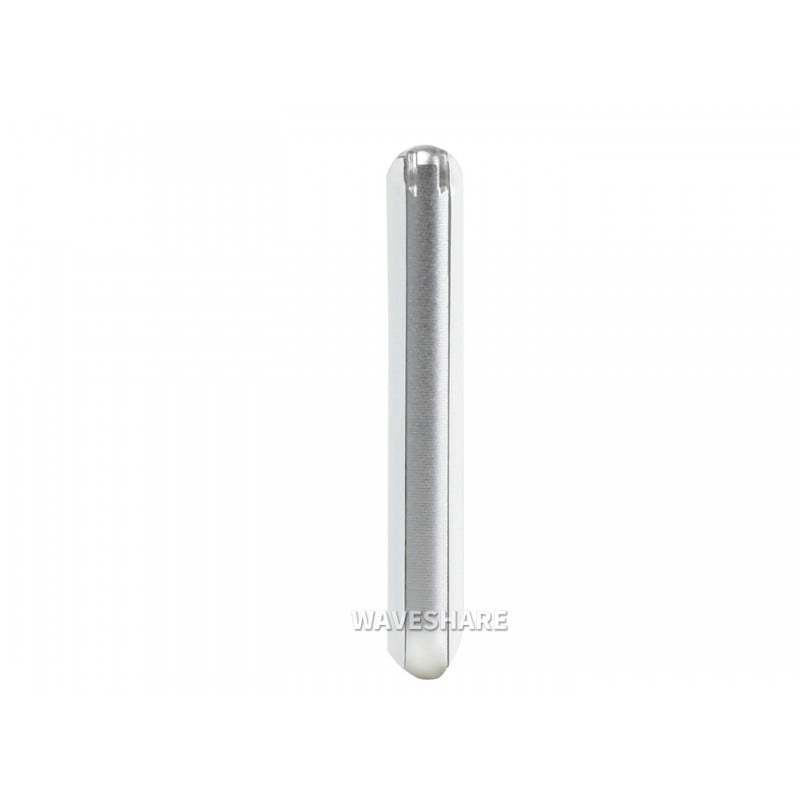

Rounded Metal Border, Nice Looking, Stunning Quality

Red / Black / White Three-color Displaying

Wireless NFC-Powered Display Refreshing

Passive NFC Solution, No Battery Required, No Messy Wiring

How It Works

Wireless Powering & Data Transfer

To Refresh The Display Content, Use A Smart Phone With NFC Function, Or An NFC Reader, Close To The E-Paper, It’ll Be Done In A Few Seconds

A Born Hanging Ornament

Features Corner Hang Hole, Ideal For Handbag Decoration, Key Fob, Etc.

Application Examples

Suitable For Smartphone / Key Fob, Contact Card QR Code, Hanging Ornament…

Outline Dimensions

The best part is as it is an e-paper display this display doesn’t require any power to operate

if you don’t have NFC enabled phone, no need to worry. You can do it via NFC writer.

Features:

1. No backlight required, e-Paper keep displaying the last content for a long time without power
2. No power adapter required
3. You can modify the display content by smartphone
4. Compare with ABS case
5. App is provided

Package Includes:

1 x 1.54inch NFC-Powered e-Paper (B)

1.64inch Square E-Paper (G) Raw Display, 168 × 168, Red/Yellow/Black/White E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in the clear fluid will move to sides of microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Features:

1. No backlight keeps displaying last content for a long time even when power down
2. Ultra-low power consumption, basically power is only required for refreshing
3. Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Package Includes:

1 x Waveshare 1.64inch square E-Paper (G) Display

1.9-inch Segment E-Paper Module, 91 Segments, I2C Bus, Ideal for Temperature And Humidity Meter, Humidifier, Digital Meter. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in the clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Features:

1. No backlight keeps displaying the last content for a long time even when power down
2. Ultra-low power consumption, basically power is only required for refreshing
3. I2C interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.
4. Onboard MOS voltage translating circuit, compatible with 3.3V/5V MCUs

Package Includes:

1 x 1.9inch Segment e-Paper Module

1 x 6 Pin Cable

This is an E-Ink display for Raspberry Pi, 2.13inch, 250×122 resolution, with an embedded controller, communicating via SPI interface, supports the black, and white color display.

There is no backlight so it can keep displaying the last content for a long time even when the power is down. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight,  Basically, power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc… SPI interface can be used.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Features:

1. 2.13″ capacitive touch e-Paper display, 5-point touch, 250×122 pixels
2. Supports waken up by user-defined gesture
3. No backlight keeps displaying last content for a long time even when power down
4. Ultra-low power consumption, basically power is only required for refreshing
5. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
6. Comes with development resources and manual (examples for Raspberry Pi)

Specifications:

1. Operating Voltage: 3.3V
2. Gray Scale: 2
3. Interface: 3-wire SPI, 4-wire
4. SPI Partial Refresh Time: 0.3s
5. Full Refresh Time: 2s
6. Refresh Power:  26.4mW(Typ.)
7. Dot Pitch : 0.194 x0.194mm
8. Standby Current: <0.01uA (almost none)
9. Viewing  Angle: >170°
10. Display Color: black, white
11. Touch Point: 5 (max)

Package Includes:

1 x Waveshare 2.13inch Touch E-Paper E-Ink Display for Raspberry Pi Zero, 250×122, ABS Case

3-inch E-Paper Module (G), 400 × 168, Red/Yellow/Black/White. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in the clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Features:

1. No backlight keeps displaying last content for a long time even when power down
2. Ultra-low power consumption, basically power is only required for refreshing
3. SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
4. Onboard voltage translator, compatible with 3.3V/5V MCUs
5. Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Package Includes:

1 x 3inch e-Paper Module (G)

1 x PH2.0 20cm 8Pin

3.52inch E-Paper Raw Display, 360 × 240, SPI Interface. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in the clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect. Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, and Conference Name Tags.

Features:

1. No backlight keeps displaying last content for a long time even when powered down
2. Ultra-low power consumption, basically power is only required for refreshing
3. Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Package Includes:

1 x Waveshare 3.52inch e-Paper Display 360 × 240 SPI Interface
