Waveshare 2.8inch Touch LCD Shield for Arduino

₹2,169.85 (Including tax)

  1. I/O Voltage: 3.3V/5V
  2. LCD Type: TFT
  3. LCD Interface: SPI
  4. LCD Controller: ST7789
  5. Touch screen type: Resistive
  6. Color: RGB, 65K colors
  7. Resolution:320×240 (Pixel)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%₹2,061.35 (Including tax)
11 - 208%₹1,996.26 (Including tax)
21 - 4010%₹1,952.87 (Including tax)
41 - 10012%₹1,909.47 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare
Add to wishlist
16 People watching this product now!
SKU: rz24323376 Category:
Description

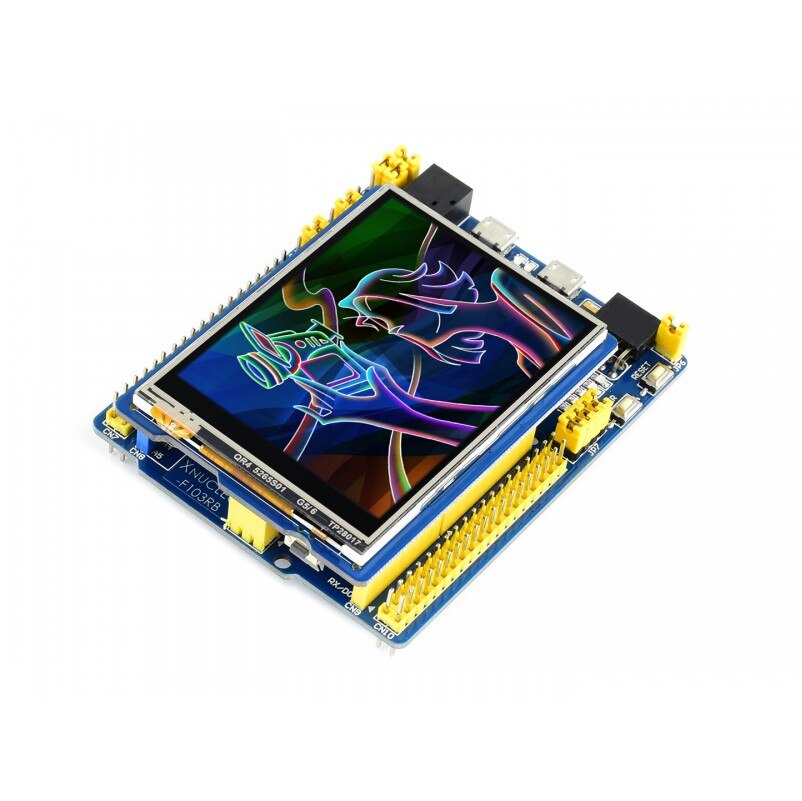

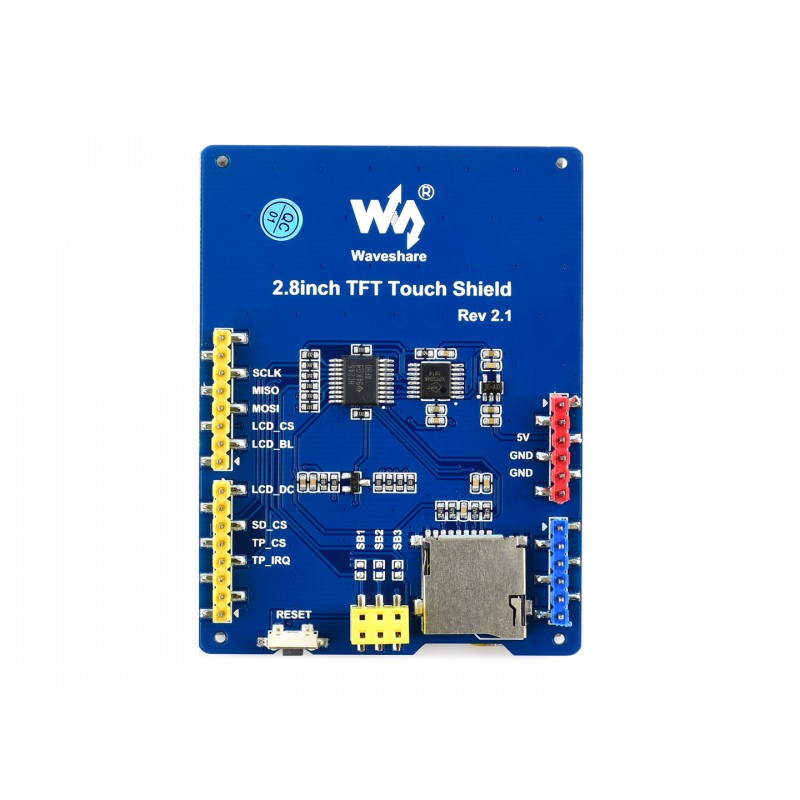

The Waveshare 2.8inch Touch LCD Shield for Arduino is fully assembled, tested, and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you‘ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board

So spice up your Arduino UNO project with a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (2.8″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

The Display comes with 320×240 pixels with individual pixel control. .  As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Features:

  1. Resistive touch screen TFT LCD, 2.8inch, 320×240 resolution
  2. Standard Arduino interface, compatible with development boards like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  4. Micro SD slot, provides an easy way to store photos for displaying
  5. Controlled via SPI, only a few Arduino pins are used
  6. Backlight adjustable by program, lower power consumption

Package Includes:

1 x Waveshare 2.8inch Touch LCD Shield for Arduino

Additional information
Input Voltage (V)

3.3 to 5

Display Resolution

320×240

Colors

RGB

,

65K colors

Touch Type

Resistive

Controller

ST7789

Interface Type

SPI

Length (mm)

72

Width (mm)

55

Height (mm)

15

Weight (gm)

38
