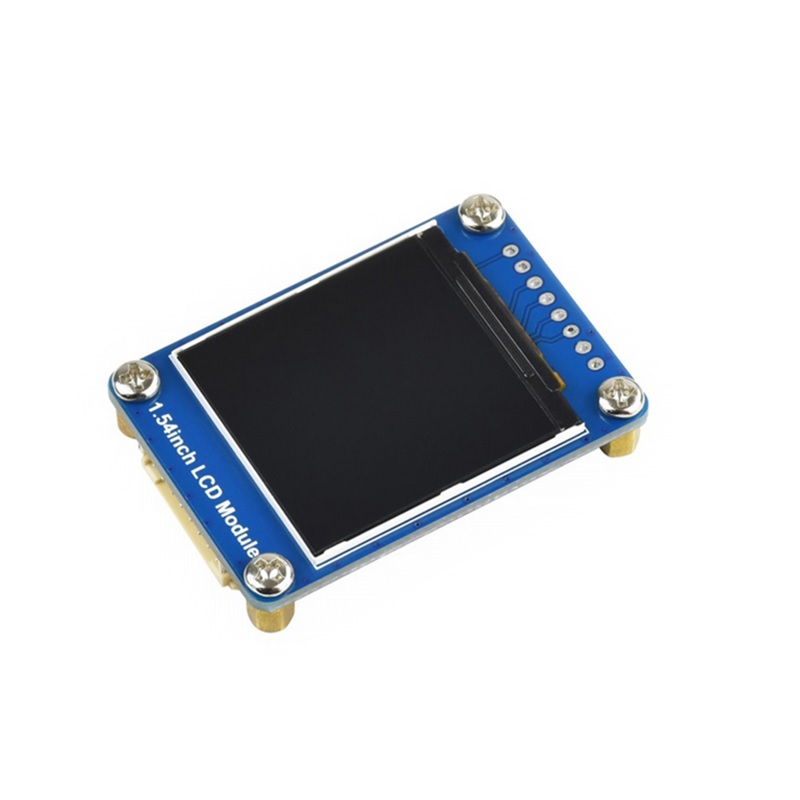

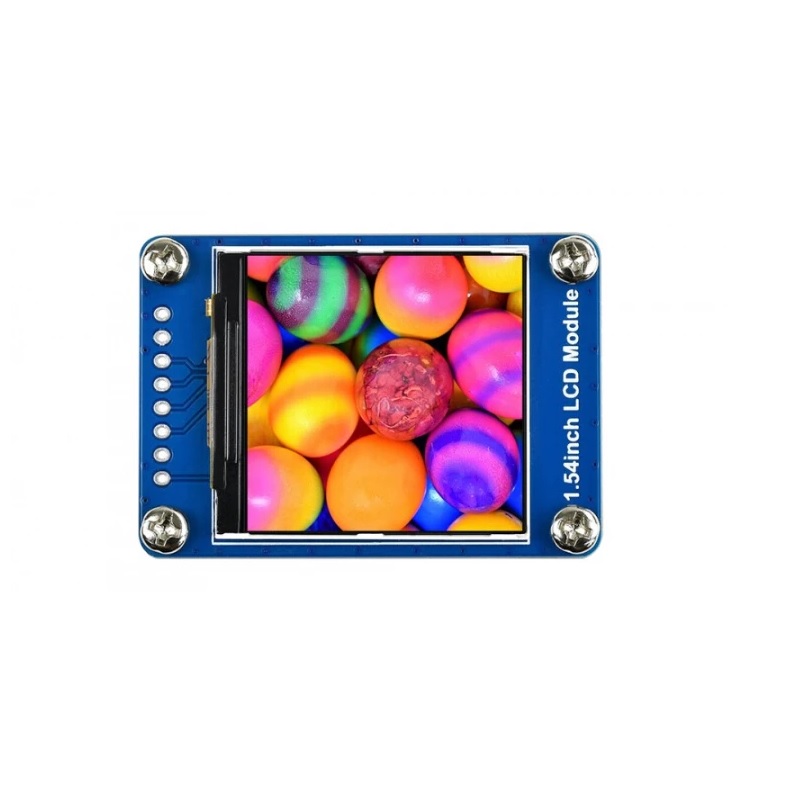

Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB

15 People watching this product now!

SKU: rz24323377 Category: LCD Displays

Description

This is a general LCD display Module from Waveshare with a TFT screen, 1.54inch diagonal, 240X240 resolution, and embedded controller ST7789 communicating via SPI interface.

This lovely little display breakout is the best way to add a small, colorful, and bright display to any project. Even a very small one with low memory and few pins available!

And the 1.54 Inch SPI 240X240 TFT LCD Display Module will always come with the same driver chip so there are no worries that your code will not work from one to the other.

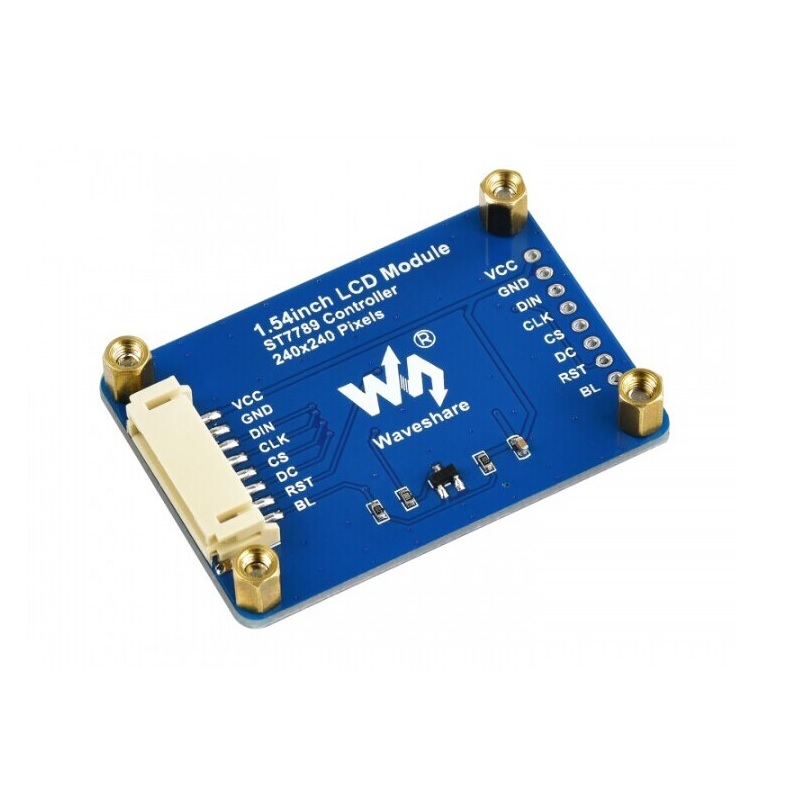

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Features:

SPI interface requires minimum GPIO for controlling.
Compatible with the 3.3/5V operation voltage level.
Features Backlight Control Circuit.
The basic functions have been encapsulated on the demo, which can realize picture rotation, draw dots, lines, circles, rectangles, and display pictures.

Package Includes:

1 x Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB

Additional information

Operating Voltage (VDC)	3.3
Driver	ST7789
Interface	SPI
Display Color	RGB , 65K color
Pixel Resolution	240×240
Length (mm)	50
Width (mm)	34
Height (mm)	9.4
Weight (gm)	16
