₹10,515.39 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹9,989.62 (Including tax) |
11 - 20 | 8% | ₹9,674.16 (Including tax) |
21 - 40 | 10% | ₹9,463.86 (Including tax) |
41 - 100 | 12% | ₹9,253.55 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

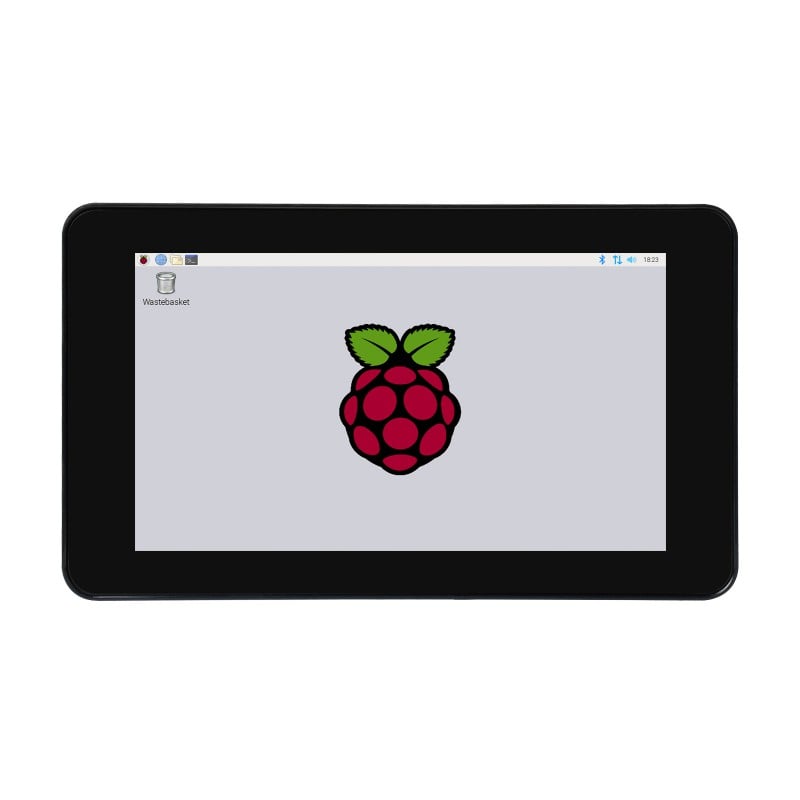

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024×600, DSI Interface
Hardware Connection
1 x Waveshare 7inch Capacitive Touch IPS Display
1 x Protection Case
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
Power Input |
5V |
---|---|
CM4 Socket |
Suitable for all variants of Compute Module 4 |
USB |
USB 2.0 × 1 |
Connector |
MIPI CSI 22PIN 0.5mm camera connector |
Display |
2.8″ fully laminated screen ,480 × 640 pixels ,5-point capacitive touch ,toughened glass panel |
Video |
micro HDMI × 1 ,supports 4K 30fps output |
Storage |
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
Out of stock
Out of stock
Input Power |
5V |
---|---|
CM4 Socket |
Suitable for all variants of Compute Module 4 |
Networking |
Gigabit Ethernet RJ45 connector |
M.2 M Key |
Supports NVME SSD |
POE |
PoE header (additional PoE HAT is required to enable PoE feature) |
USB |
USB 2.0 × 4 |
Display |
5″ screen ,800 × 480 pixels ,5-point capacitive touch |
Camera Mipi |
CSI-2 port × 2 (15pin 1.0mm FPC connector) |
Video HDMI |
Supports 4K 30fps output |
RTC |
Real-time clock with a battery socket and ability to wake Compute Module 4 |
Storage |
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
Fan header |
Allows speed adjustment and measurement ,5V / 12V |
Dimensions |
127.7 × 87.45mm |
Out of stock
Operating Voltage(V) |
3.3V (Supplied by Raspberry Pi display interface) |
---|---|
Max Current (A) |
320mA |
Screen off Current |
100mA |
Resolution Ratio |
800×480 |
Video Interface |
Raspberry Pi DSI |
Number of Touch Points |
5 |
Viewing Angle |
60°/70°/70°/70° |
RGB888 |
16 Mega True Color |
Refresh Frequency |
60Hz |
Luminous Frequency |
280 cd/m2 |
Operating Temperature (°C) |
-20℃~70℃ |
Mounting Holes Diameter (mm) |
M2.5 |
Outside mounting hole position |
113mm × 68mm/ 4.45" × 2.68" |
Inside Mounting hole position |
58mm x 49mm/ 2.28" x 1.93" |
Dimensions (mm) LxWxH |
121mm×76mm / 4.76" × 2.99" |
