₹3,974.65 (Including tax)
Brand: Waveshare
Model number: IMX219-200 Camera
Minimum focal length: 0.087 cm
Item weight: 16 Grams
Are Batteries Included: No
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹3,775.91 (Including tax) |
11 - 20 | 8% | ₹3,656.68 (Including tax) |
21 - 40 | 10% | ₹3,577.20 (Including tax) |
41 - 100 | 12% | ₹3,497.69 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

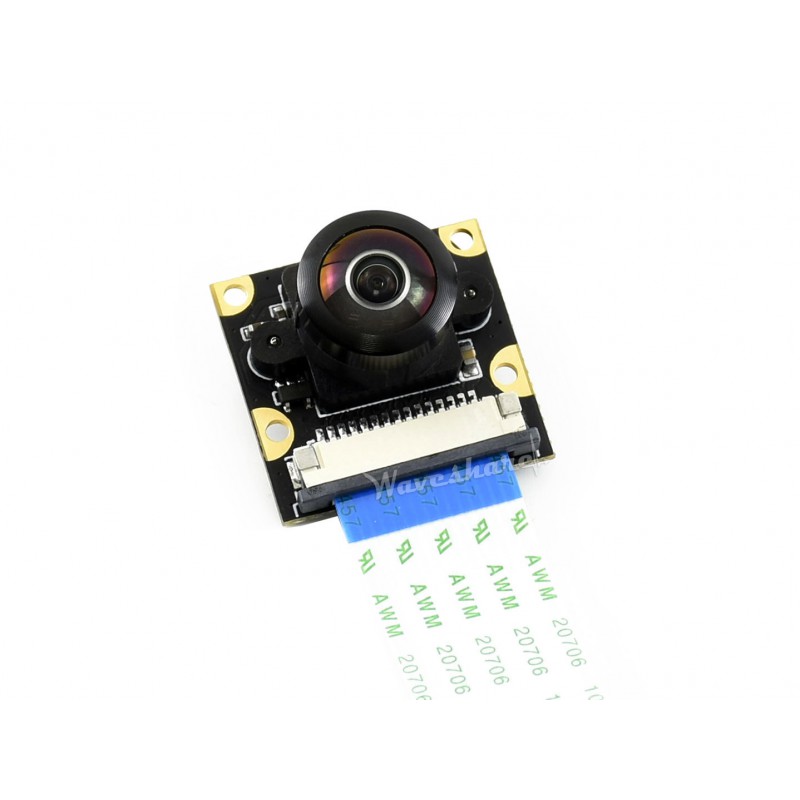

IMX219-200 Camera, Applicable For Jetson Nano, 8 Megapixels, 200°. You can also use it with CM3/CM3+ expansion boards like Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare and the Stereo Pi board.
Applications:
1 X IMX219-200 Camera
1 X 15-pin FFC (opposite sides contact)
Supports |
CM3/3+/4 ,Jetson Nano ,Jetson Xavier NX |
---|---|
Pixels |
8MP |
Sensor |
IMX219 |
Resolution |
3280 × 2464 |
CMOS size |
1/4inch |
Aperture (F) |
2.0 |
Focal Length |
0.087 cm |
Angle of View (diagonal) |
200 degree |
Distortion |
<11% |
4 screw holes |
Provides 3.3V power output |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Camera |
OV2640 |
---|---|
Flash Memory |
4M |
Firmware default communication method |
UART: 115200bps 8N1 |
Maximum resolution |
2MegaPixel |
Unit CAM firmware default picture transfer rate |
12fps |
OV2640 supports output format |
YUV(422/420)/YCbCr422 ,8-bit compressed data ,RGB565/555 ,8-/10-bit Raw RGB data |
OV2640 supports the maximum image transfer rate |
UXGA/SXGA: 15fps ,SVGA: 30fps ,CIF: 60fps |
DFOV |
66.5° |
Length (mm) |
45 |
Width (mm) |
20 |
Height (mm) |
12 |
Weight (gm) |
5 |
Out of stock
Out of stock
Out of stock
Model |
IMX219-83 |
---|---|
Megapixels |
8 MP |
Sensor |
IMX219 |
Resolution |
3280 × 2464 (per camera) |
Lens specifications |
CMOS size: 1/4inch Focal Length: 2.6mm The angle of View: 83/73/50 degree (diagonal/horizontal/vertical) Distortion: <1% Baseline Length: 60mm |
ICM20948 Accelerometer |
Resolution: 16-bit Measuring Range (configurable): ±2 ,±4 ,±8 ,±16g Operating Current: 68.9uA |
Gyroscope |
Resolution: 16-bit Measuring Range (configurable): ±250 ,±500 ,±1000 ,±2000°/sec Operating Current: 1.23mA |
Magnetometer |
Resolution: 16-bit Measuring Range: ±4900μT Operating Current: 90uA |
Dimennsions |
24mm × 85mm |
