Waveshare IMX219-83 Stereo Camera, 8MP Binocular Camera Module, Depth Vision

8,140.65 (Including tax)

  1. product: Stereo Camera
  2. 8 Megapixels
  3. Sensor: IMX219
  4. Resolution: 3280 × 2464 (per camera)
  5. Dimension: 24mm × 85mm

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%7,733.61 (Including tax)
11 - 208%7,489.38 (Including tax)
21 - 4010%7,326.59 (Including tax)
41 - 10012%7,163.77 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

13 People watching this product now!
SKU: rz24310346 Category:
Description

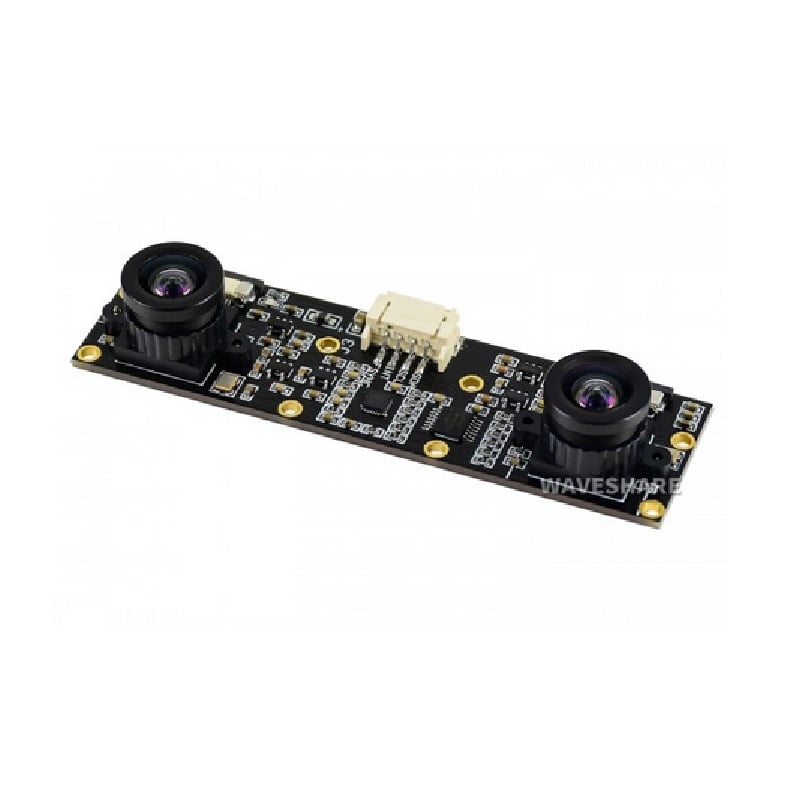

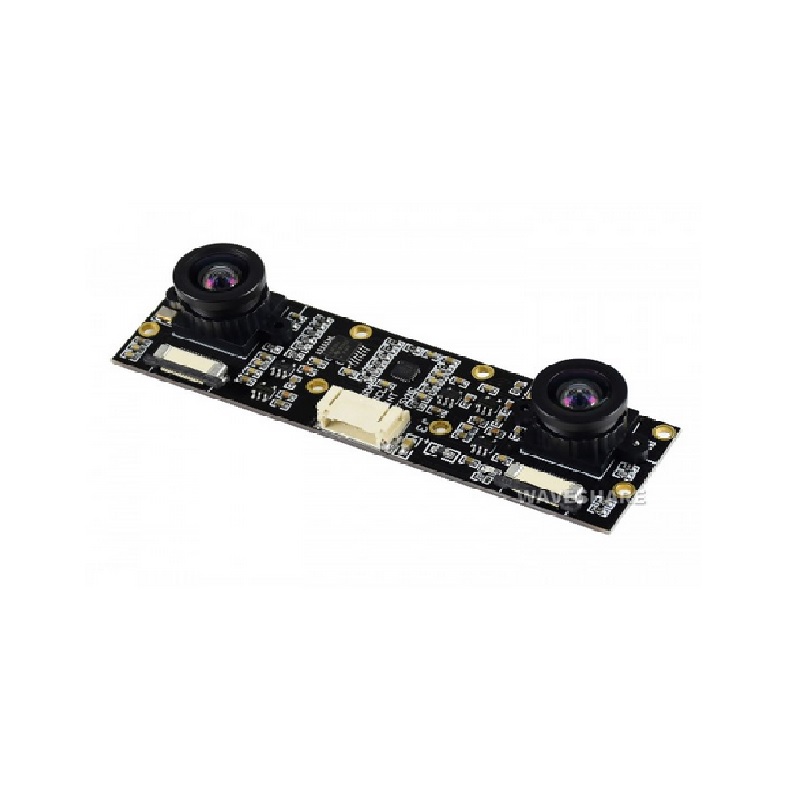

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

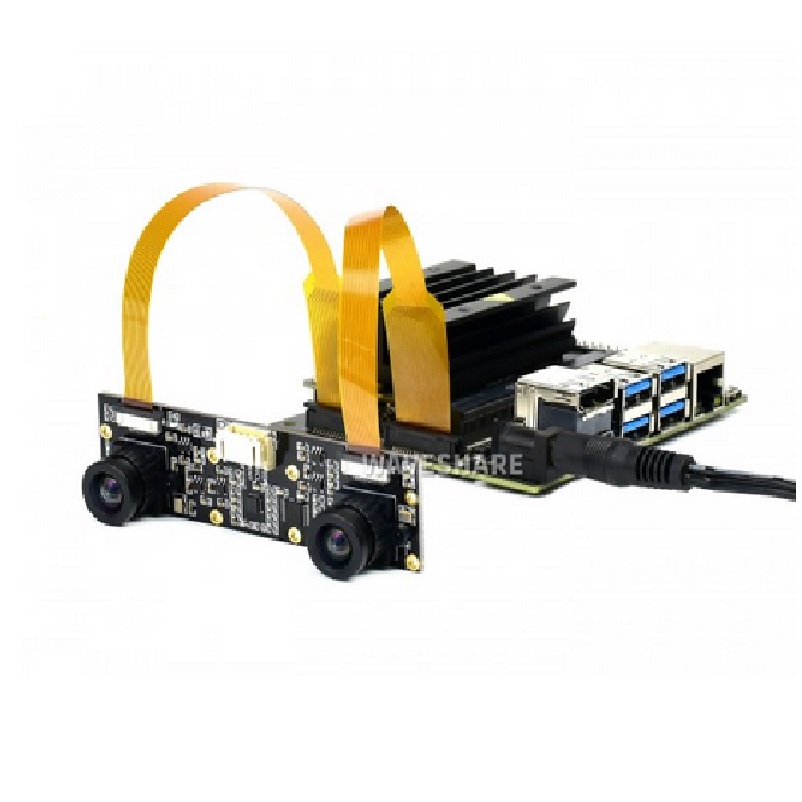

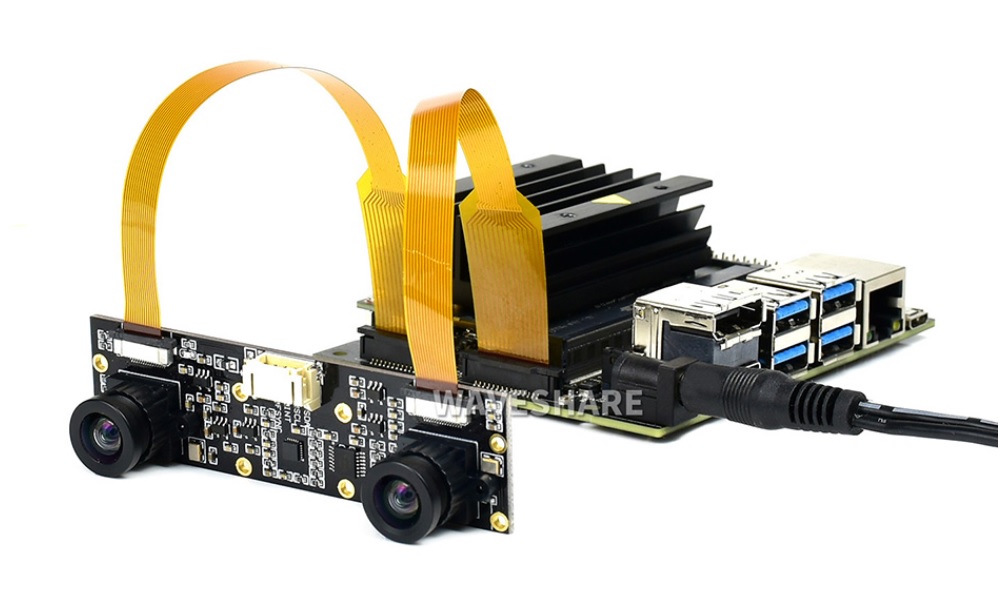

The module supports NVIDIA Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Application:

  1. Facial recognition
  2. Road mark recognition
  3. License plate number recognition
  4. AI vision applications like depth vision and stereo vision

Dimensions

jhhphup gyuiuy


Features:

  1. High Quality Camera
  2. Light weight
  3. suitable for AI applications
  4. Based on Sony IMX219 sensor
  5. Best for IoT projects
  6. Low power consumption

Packages Includes:

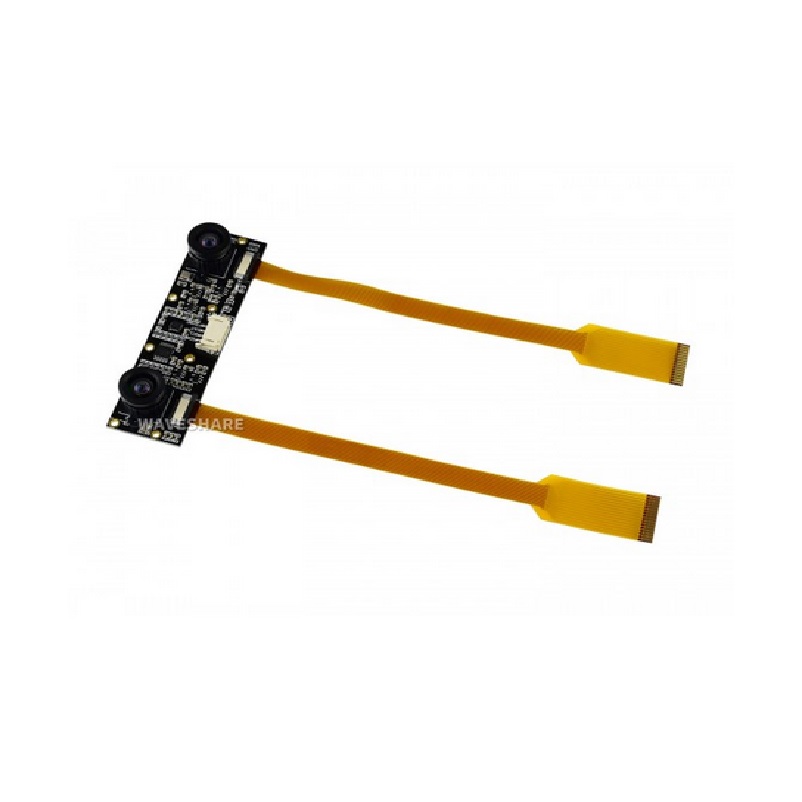

1 x IMX219-83 Stereo Camera

1 x FPC 15pin 2PCS

1 x FPC 15pin to 20pin 2PCS

1 x PH2.0 4PIN wire

Additional information
Model

IMX219-83

Megapixels

8 MP

Sensor

IMX219

Resolution

3280 × 2464 (per camera)

Lens specifications

CMOS size: 1/4inch Focal Length: 2.6mm The angle of View: 83/73/50 degree (diagonal/horizontal/vertical) Distortion: <1% Baseline Length: 60mm

ICM20948 Accelerometer

Resolution: 16-bit Measuring Range (configurable): ±2

,

±4

,

±8

,

±16g Operating Current: 68.9uA

Gyroscope

Resolution: 16-bit Measuring Range (configurable): ±250

,

±500

,

±1000

,

±2000°/sec Operating Current: 1.23mA

Magnetometer

Resolution: 16-bit Measuring Range: ±4900μT Operating Current: 90uA

Dimennsions

24mm × 85mm
