₹10,922.49 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹10,376.37 (Including tax) |
11 - 20 | 8% | ₹10,048.70 (Including tax) |
21 - 40 | 10% | ₹9,830.24 (Including tax) |
41 - 100 | 12% | ₹9,611.79 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

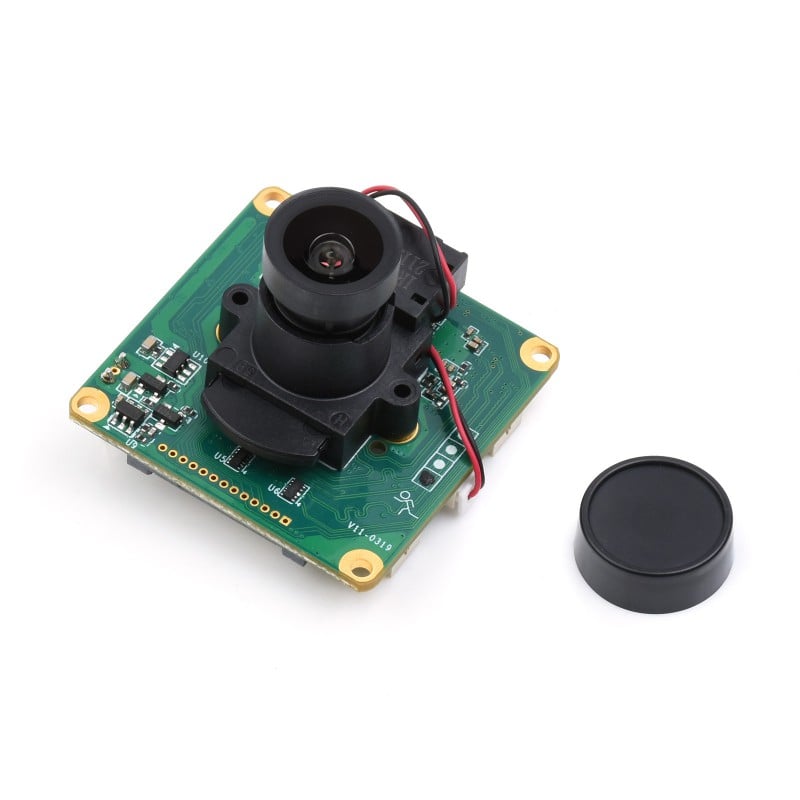

IMX462-127 IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, 2MP.Onboard 1/2.8 inch Sony starlight camera sensor, IMX462 2MP Starlight Camera adopts back-illuminated pixel technology, which can realize high-quality imaging in visible light and near-infrared band.
Onboard IR-CUT, IXM462 2MP Starlight Camera can be switched to day or night mode freely with a resolution up to 1920 x 1080. With ISP, the camera has a better imaging effect. Also, we provide 99° and 127° field of view options, which you can choose according to your needs.e IMX462 camera is used on the NVIDIA platform to install the relevant driver and load the new device tree file. Currently supports Jetson Nano, Jetson Xavier NX, Jetson TX2 NX, and Jetson AGX Xavier.
Note: AGX Xavier and other interfaces are packaged differently, and you need to purchase or make an adapter board to support them.
1 x IMX462-127 2MP Starlight Camera
1 x Connecting Cables
Sensor |
IMX462-127 |
---|---|
CMOS Size |
1/2.8 inch |
Pixels |
2MP (1920 × 1080) |
Camera Type |
Color |
Focusing |
Fixed focus |
Shutter |
Rolling Shutter |
Aperture |
F1.61 |
Focal Length |
3.18mm |
Field of view |
127.9° |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
CMOS size |
1/4inch |
---|---|
Aperture (F) |
2.35 |
Focal Length |
3.15mm |
Angle of View (diagonal) |
160 degree |
Distortion |
<14.3% |
Supports |
CM3/3+/4 ,Jetson Nano ,Jetson Xavier NX |
Pixels |
8 MP |
Sensor |
IMX219 |
Resolution |
3280 × 2464 |
4 screw holes |
Used for attachment ,Provides 3.3V power output |
Product weight |
15g |
Dimensions |
25mm × 24mm |
Out of stock
Model |
IMX219-83 |
---|---|
Megapixels |
8 MP |
Sensor |
IMX219 |
Resolution |
3280 × 2464 (per camera) |
Lens specifications |
CMOS size: 1/4inch Focal Length: 2.6mm The angle of View: 83/73/50 degree (diagonal/horizontal/vertical) Distortion: <1% Baseline Length: 60mm |
ICM20948 Accelerometer |
Resolution: 16-bit Measuring Range (configurable): ±2 ,±4 ,±8 ,±16g Operating Current: 68.9uA |
Gyroscope |
Resolution: 16-bit Measuring Range (configurable): ±250 ,±500 ,±1000 ,±2000°/sec Operating Current: 1.23mA |
Magnetometer |
Resolution: 16-bit Measuring Range: ±4900μT Operating Current: 90uA |
Dimennsions |
24mm × 85mm |
Out of stock
Out of stock
Out of stock
Pixels |
5MP |
---|---|
Sensor |
OV5640 |
Interface |
USB 2.0 |
Camera Details |
size 1/4 inch Aperture: (F) 2.8 Focal length: (EFL) 3.29 mm Field of view: (FOV) 68° Distortion: < 1% |
Focusing (B) |
AF Auto-Focus (C): FF Fixed-Focus |
Image |
Format support MJPG ,YUV422 |
Resolution |
Static image2592 × 1944 Video recording: 15 FPS 2592 × 1944 30 FPS: 1920 × 1080 30 FPS: 1280 × 720 |
Operating voltages |
5V ± 5% |
Camera size |
8.5 × 8.5 mm |
Module size |
9 × 62 mm         |
Out of stock
Out of stock
