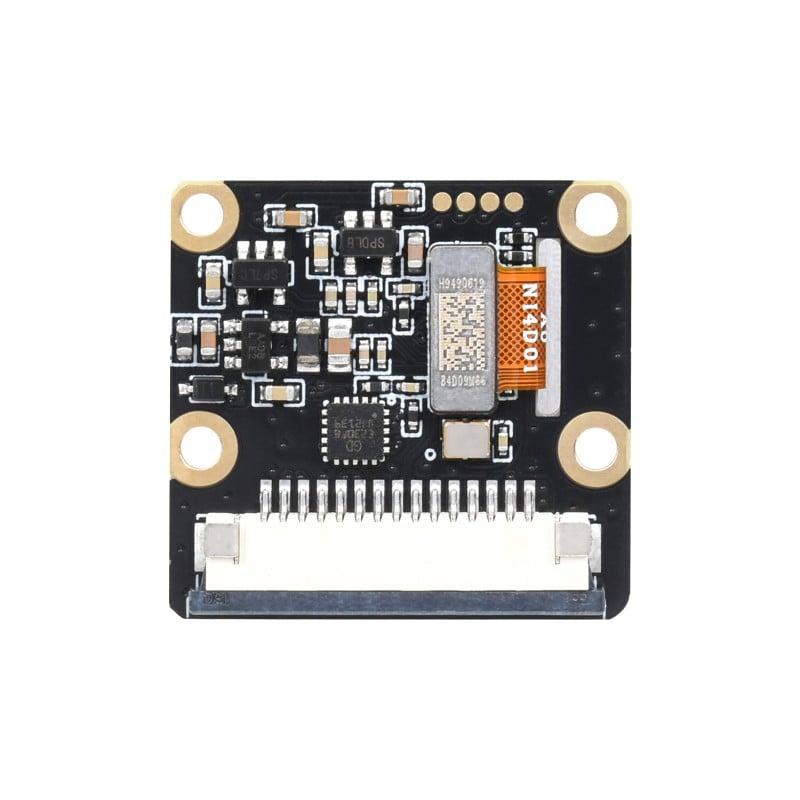

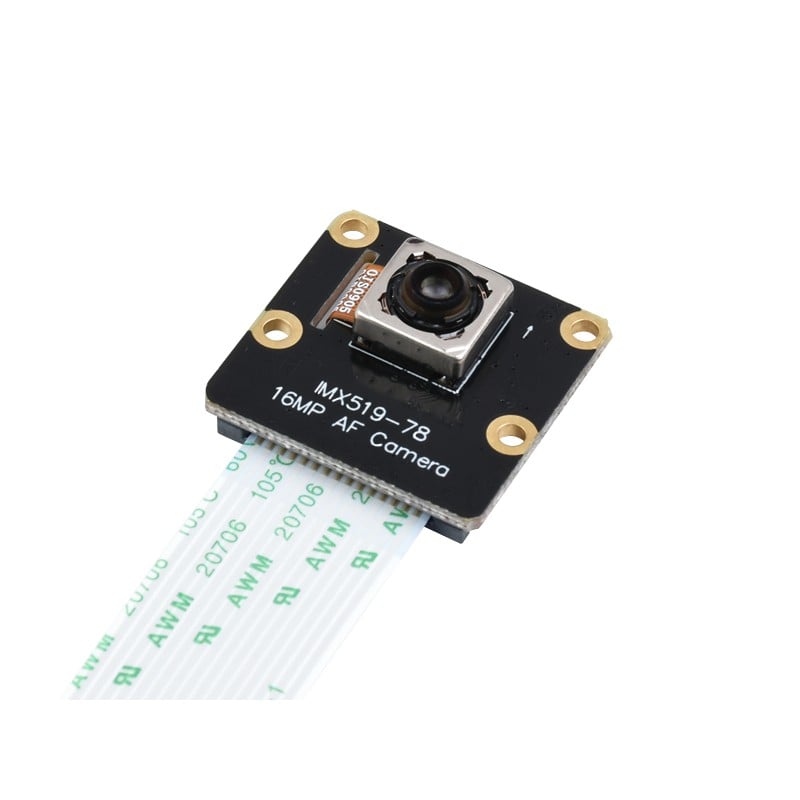

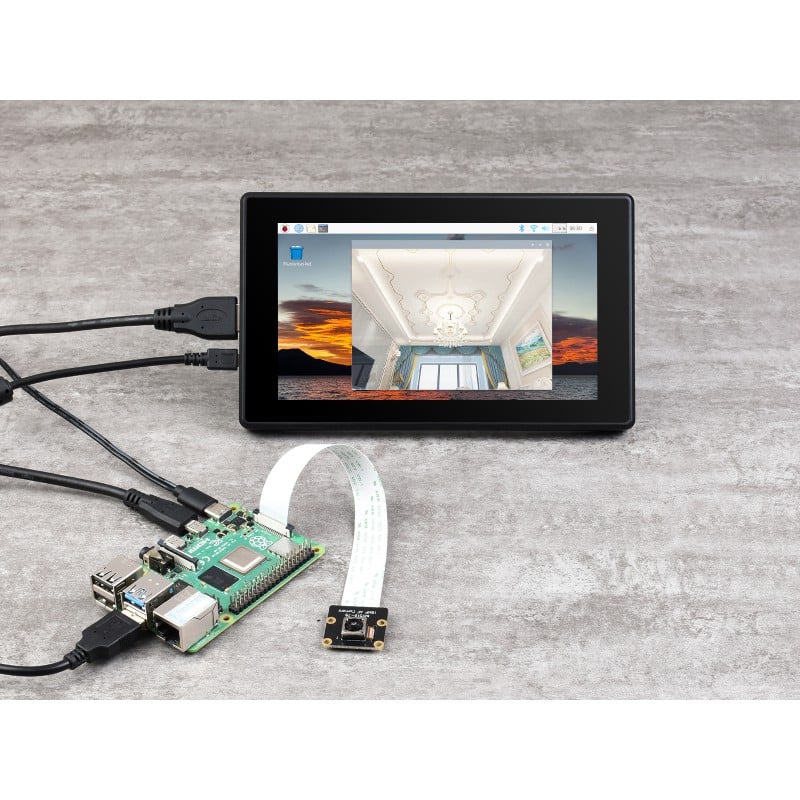

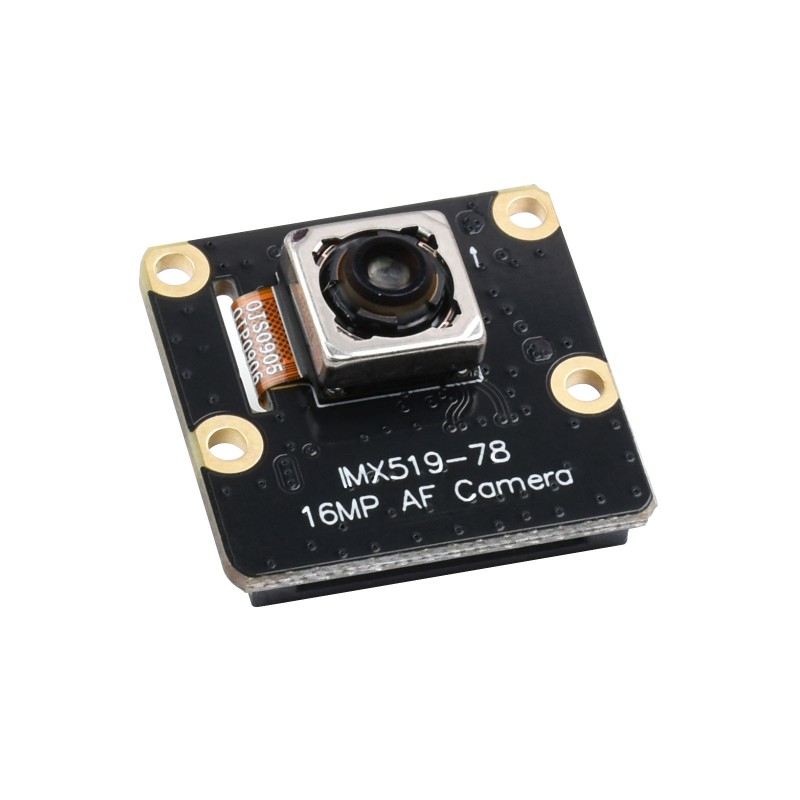

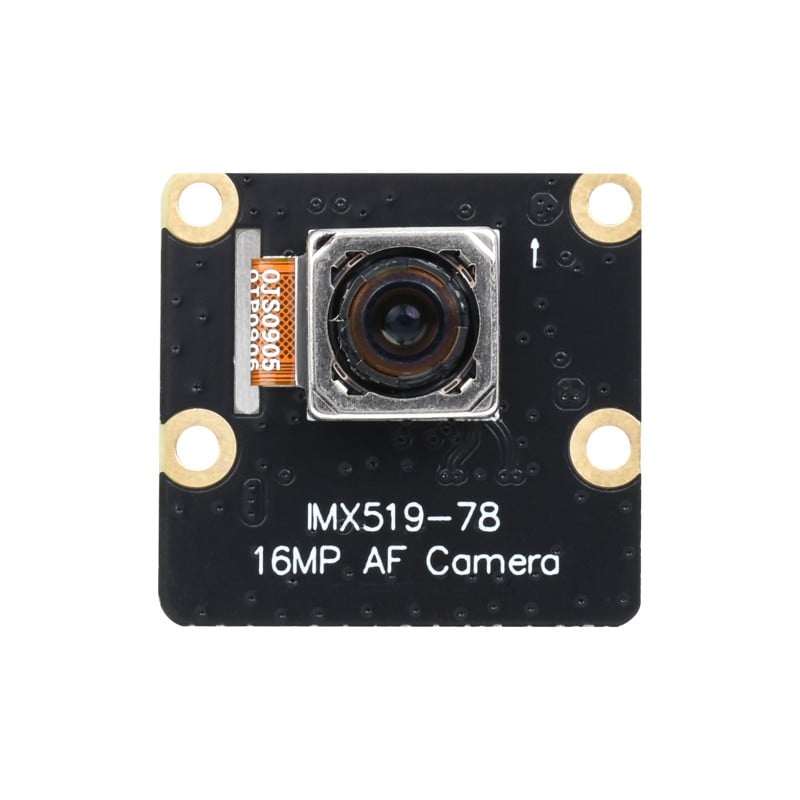

IMX519-78 16MP AF Camera, Auto-Focus, High-Resolution Camera For Raspberry Pi.Onboard a Sony IMX519 sensor, IMX519-78 16MP AF Camera supports 16MP, autofocus, FOV 78°. The autofocus function of IMX519 requires the support of drivers and related software tools.
After the Bullseye version of the Raspberry Pi image, the underlying Raspberry Pi driver was switched from Raspicam to lb camera. Libcamera is an open-source software stack (will be called driver later, which is easy to understand), which is convenient for third-party porting and development of their own camera drivers. As of 2021-12-20, there are still many bugs in libcamera, and the current lib camera does not support python, so the Raspberry Pi official still provides a method for installing and downloading Raspicam. For users who are difficult to switch to libcamera but need to use the latest system, please directly refer to the Raspicam instructions.
1 x IMX519-78 16MP AF Camera
| Sensor |
IMX519 |
|---|---|
| CMOS Size |
1/2.534 inch |
| Pixels |
16MP (4656 x 3496) |
| Aperture |
F1.79 |
| Focal Length |
4.28mm |
| Field of View |
78.5° |
| Camera Type |
Color |
| Focusing |
Auto-Focus |
| Distortion |
< 1.0% |
| SHUTTER |
Rolling Shutter |
