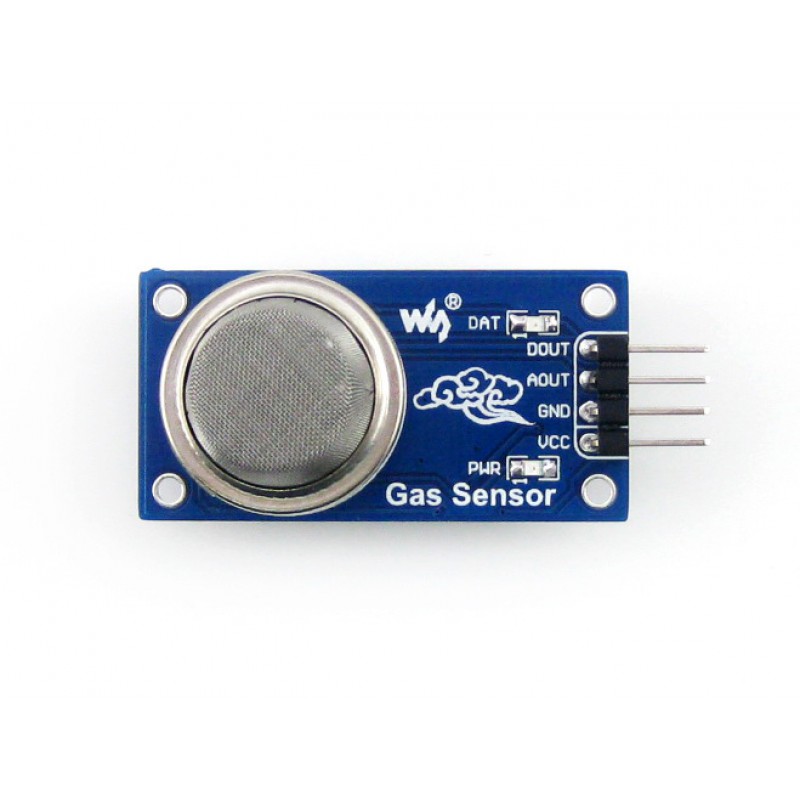

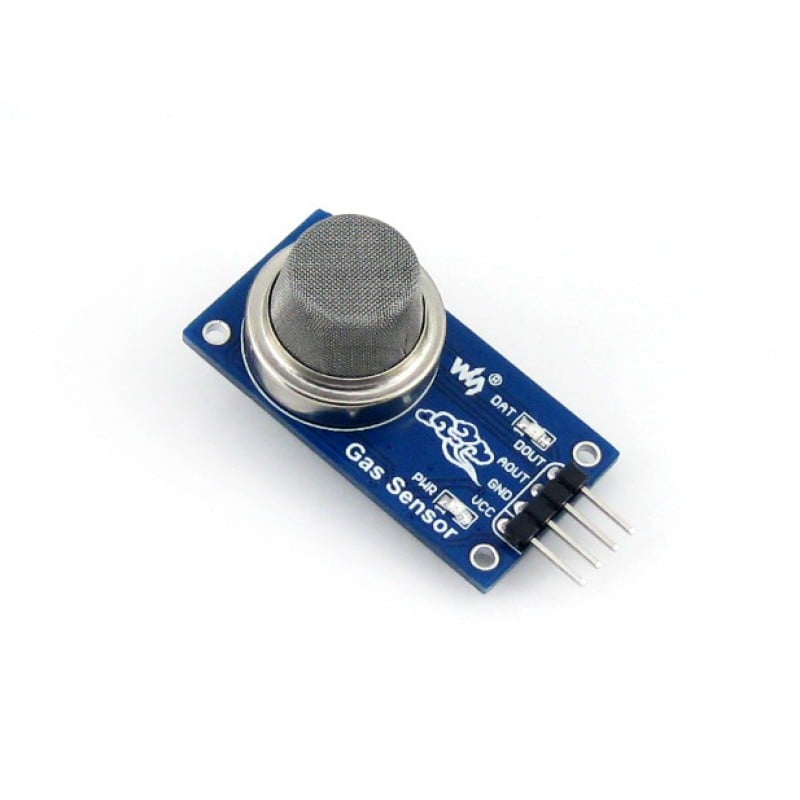

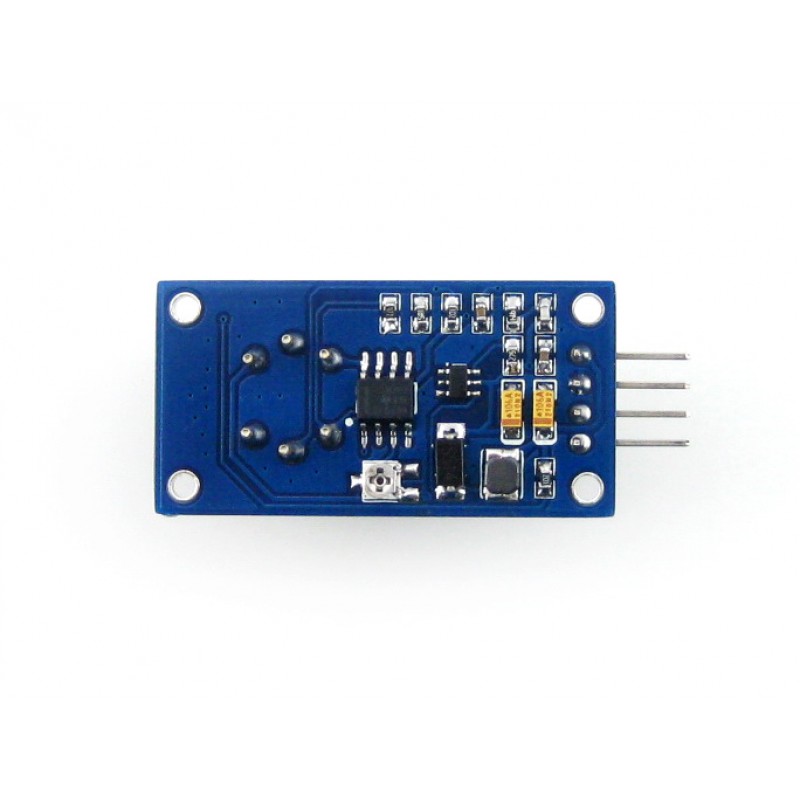

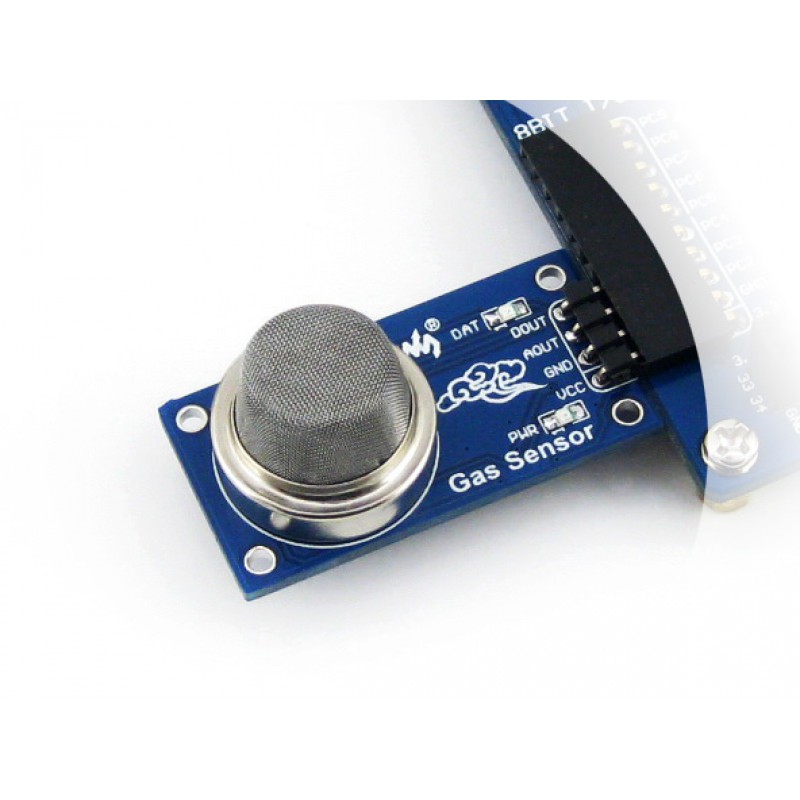

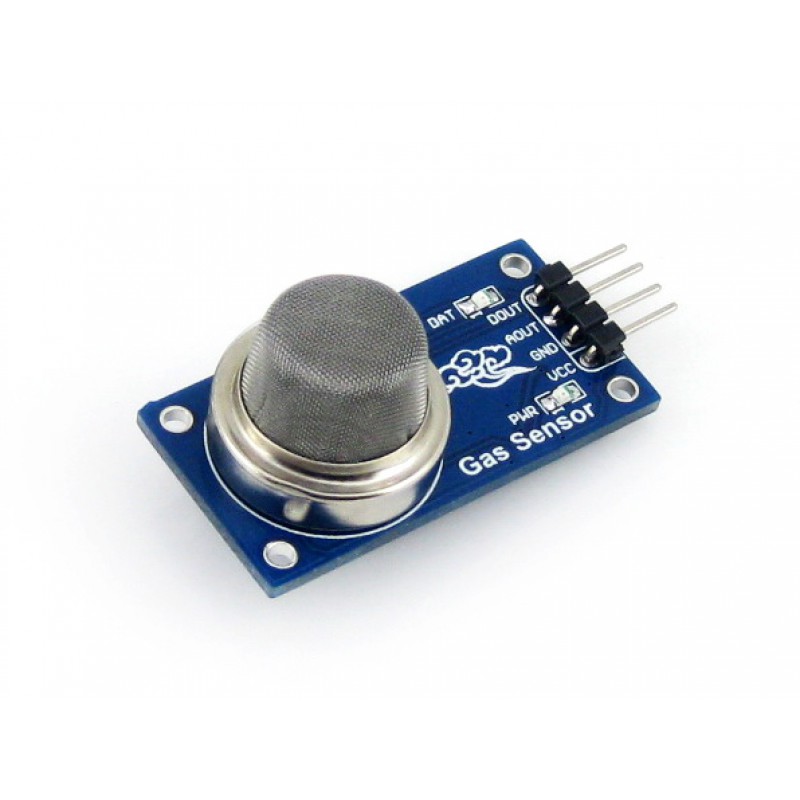

Waveshare MQ-2 Gas Sensor

SKU: 1219076
In Stock

399.00

  1. Power supply: from 2.5 V to 5 V
  2. Analog and digital output
  3. Pins: goldpin connectors, 2.54 mm pitch
  4. Board sizes: 40 x 21 mm
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

The sensor detects the concentration of LPG, propane and hydrogen in the air, the result can be obtained by measuring the voltage on the analog output. The system is powered with a voltage from 2.5 V to 5 V. It has a digital and analog output, making it compatible with most of the commissioning modules, including Raspberry PiandArduino.

Operating principle:
MQ-2 gas sensor applies SnO2 which has a lower conductivity in the clear air as a gas-sensing material. In an atmosphere where there may be inflammable gases, the conductivity of the gas sensor raises along with the inflammable gas concentration increases. MQ-2 performs a good detection to different inflammable gases such as natural gas, especially sensitive to liquefied gas, propane and hydrogen. Its ability to detect various inflammable gases and lower cost make it an ideal choice of different applications of gas detection.


Features:

  1. Sensitive for LPG, propane, hydrogen
  2. Output voltage boosts along with the concentration of the measured gases increases
  3. Fast response and recovery
  4. Features boost circuit
  5. Adjustable sensitivity
  6. Signal output indicator

Package Includes:

1 x MQ-2 Gas Sensor
1 x 4-pin custom connector jumper wire

Additional information

Voltage (V)

2.5 V to 5 V

output Pin

Analog and digital

pin

Gold pin connectors, 2.54 mm pitch

Board Size

40 x 21 mm

Mounting Hole Diameter (mm)

2 mm

Interface

Analog output, Digital Output, GND, VCC Positive power supply (2.5V-5.0V)

Weight (g)

8

Quick Comparison

SettingsWaveshare MQ-2 Gas Sensor removeDFRobot Gravity H2 Sensor (Calibrated) – I2C, UART and analog removeFigaro LPM2610-D09 Butane and Propane Gas Sensor Module removeTE CONNECTIVITY Thermopile Sensor, Infrared, TO-18, CO2 Gas Detection removeFigaro TGS2610-C00 LP Gas Sensor removeAmphenol SGX Sensortech Gas Sensor Module, Methane remove
NameWaveshare MQ-2 Gas Sensor removeDFRobot Gravity H2 Sensor (Calibrated) – I2C, UART and analog removeFigaro LPM2610-D09 Butane and Propane Gas Sensor Module removeTE CONNECTIVITY Thermopile Sensor, Infrared, TO-18, CO2 Gas Detection removeFigaro TGS2610-C00 LP Gas Sensor removeAmphenol SGX Sensortech Gas Sensor Module, Methane remove
SKU121907613562431468920137398014689251341742
Rating
Price399.0019,269.001,399.001,669.00399.005,869.00
Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
AvailabilityIn StockIn StockIn StockIn StockIn StockIn Stock
Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Description
  1. Power supply: from 2.5 V to 5 V
  2. Analog and digital output
  3. Pins: goldpin connectors, 2.54 mm pitch
  4. Board sizes: 40 x 21 mm
    1. Factory calibrated, accurate measurement
    2. High sensitivity, low power consumption
    3. Excellent stability and anti-interference
    4. Three output modes: I2C, UART and analog
    5. Detection Gas: Hydrogen (H2)
    6. Working Voltage: 3.3~5.5V DC
    7. Working Current: <5mA
  1. Product: Figaro LPM2610-D09 Butane and Propane Gas Sensor Module
  2. Circuit Voltage: 5.0±0.2V DC
  3. Heater Current: 56±5mA
  1. Product: Thermopile Sensor, Infrared, TO-18, CO2 Gas Detection
  2. Rise Time: 22 ± 5
  3. Ambient Temperature Sensor: Ni-RTD
  4. Ambient Temperature Sensor Resistance: 1000 ± 4
  1. Product: Figaro TGS2610-C00 LP Gas Sensor
  2. Heater Current: 56±5mA
  3. Heater Resistance: approx 59Ω at room temp
  4. Heater Voltage: 5.0±0.2V DC
  5. Load Resistance: variable 0.45 kΩ min.
  1. Detectable gases: methane
  2. Maximum concentration: 5% v/v.
  3. Sensor sensitivity: >10 mV/% CH4
  4. Sensor response time: <30 s
  5. Zero drift: <0.1%v/v
Content

The sensor detects the concentration of LPG, propane and hydrogen in the air, the result can be obtained by measuring the voltage on the analog output. The system is powered with a voltage from 2.5 V to 5 V. It has a digital and analog output, making it compatible with most of the commissioning modules, including Raspberry PiandArduino.

Operating principle:
MQ-2 gas sensor applies SnO2 which has a lower conductivity in the clear air as a gas-sensing material. In an atmosphere where there may be inflammable gases, the conductivity of the gas sensor raises along with the inflammable gas concentration increases. MQ-2 performs a good detection to different inflammable gases such as natural gas, especially sensitive to liquefied gas, propane and hydrogen. Its ability to detect various inflammable gases and lower cost make it an ideal choice of different applications of gas detection.


Features:

  1. Sensitive for LPG, propane, hydrogen
  2. Output voltage boosts along with the concentration of the measured gases increases
  3. Fast response and recovery
  4. Features boost circuit
  5. Adjustable sensitivity
  6. Signal output indicator

Package Includes:

1 x MQ-2 Gas Sensor
1 x 4-pin custom connector jumper wire

This is a sensor that detects hydrogen concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen in the environment. Can be widely used in the detection of hydrogen in industrial and environmental protection fields.The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years.

The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino ESP32, and RASPBERRY PI. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen concentration detector.

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

Application:

  1. Industrial hydrogen fluoride detection
  2. Environmental protection device

Connection Diagram


Features:

  1. Factory calibrated, accurate measurement
  2. High sensitivity, low power consumption
  3. Excellent stability and anti-interference
  4. Three output modes: I2C, UART and analog
  5. Long service life(2 years)
  6. Compatible with 3.3~5.5V main controllers
  7. 32 modifiable I2C addresses
  8. Reverse connection protection
  9. Temperature compensation
  10. Threshold alarm
  11. It use I2C, UART and analog communication protocol to make smooth commutation between sensor and micro-controller.

Package Includes:

1 x DFRobot Gravity H2 Sensor (Calibrated) – I2C, UART and analog

The LPM2610 is a pre-calibrated module for LP gas alarms which is precisely calibrated in Figaro’s humidity and temperature-controlled facility. The module uses TGS2610-D00 which incorporates a filter to eliminate the influence of interference gases such as alcohol, resulting in highly selective response to LP gas. The most important process in manufacturing reliable residential gas alarms is adjusting the alarm point. Calibration is a complicated and time-consuming process that also requires a substantial investment in calibration equipment. By
eliminating the costly calibration process, this module enables users to easily and simply manufacture residential LP gas alarms. Figaro has taken the complexity out of designing a gas detector circuit by providing users with a temperature compensation circuit that combines a built-in thermistor and individually adjusted load resistor together with Figaro’s low-power LP gas sensor.

Note: For more technical details go through Datasheet in the Attachment section


Features:

  1. Factory calibrated * Residential LP gas alarm
  2. Temperature compensation circuit
  3.  Interferent-resistant sensor TGS2610
  4.  Compact size
  5.  Meets RoHS regulations

Package Includes:

1 x Figaro LPM2610-D09 Butane and Propane Gas Sensor Module

Thermopiles are mainly used for contactless temperature or non-dispersive infrared measurement in many applications. Their function is to transfer the heat radiation emitted from the objects or other infrared sources into a voltage output.


Features:

  1. Very High Signal
  2. Accurate Reference Sensor
  3. 4.26 μm Narrow Band Pass
  4. Small TO-18 package

Specifications:

  1. Voltage Response: depends on the light source
  2. Temperature Coefficient of Voltage Response: -0.45 ± 0.08 %/K
  3. Noise Equivalent Voltage: 130
  4. Rise Time: 22 ± 5
  5. Ambient Temperature Sensor: Ni-RTD
  6. Ambient Temperature Sensor Resistance: 1000 ± 4

Package Includes:

1 x Thermopile Sensor, Infrared, TO-18, CO2 Gas Detection

TGS2610-C00 is a semiconductor type gas sensor which combines very high sensitivity to LP gas with low power consumption and long life. Due to miniaturization of its sensing chip, TGS2610-C00 requires a heater current of
only 56 mA and the device is housed in a standard TO-5 package. TGS2610-C00 possesses small size and quick gas response, making it suitable for gas leakage checkers. The TGS2610-C00 is able to satisfy the requirements of performance standards such as UL1484 and EN50194.

Note: For more technical details go through Datasheet in the attachment section


Features:

  1. Quick response
  2.  Low power consumption
  3.  Long life and low cost
  4.  Uses simple electrical circuit

Package Includes:

1 x Figaro TGS2610-C00 LP Gas Sensor

The Natural gas module is a battery-operated detection device designed for the detection of natural gas (methane) in concentrations below 100% LEL (4.4% CH4 in the air). The sensor is not suitable for measuring propane and butane. The sensor is equipped with a test button as well as an audible alarm option realized with an embedded buzzer.

The heart of the device is an MP-7227 MEMS pellistor sensor which allows for low-power operation on standard AA-type batteries. The module is equipped with visual (LED) and audible (buzzer) alarms to inform of potential gas leakage as well as transmit data related to the actual state of the module and concentration of gas if the module is connected to an external receiver working with serial RS232 standard

For Complete technical details go through the datasheet in the attachments


Package Includes:

1 x Amphenol SGX Sensortech Gas Sensor Module, Methane

Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Voltage (V)

2.5 V to 5 V

output Pin

Analog and digital

pin

Gold pin connectors, 2.54 mm pitch

Board Size

40 x 21 mm

Mounting Hole Diameter (mm)

2 mm

Interface

Analog output, Digital Output, GND, VCC Positive power supply (2.5V-5.0V)

Weight (g)

8

Detection Gas

Hydrogen (H2)

Detection range

0~1000ppm

Working Voltage

3.3~5.5V DC

Working Current

<5mA

Output Signal

I2C, UART (0~3V), analog voltage

Working Temperature

-20~50℃

Working Humidity

15~90%RH (non-condensing)

Storage Temperature

-20~50℃

Communication Protocol

I2C, UART and analog

Compatibility

Arduino, ESP32, Raspberry pi

Storage Humidity

15~90%RH (non-condensing)

Lifespan

>2 years (in the air)

Adapter Plate Size

37 x 32mm

Heater voltage

5.0±0.2V DC

Circuit Voltage

5.0±0.2V DC

Heater Current

56±5mA

Minimum impedance between Pin#2,3 and GND

2.5MΩ

Operating conditions

0˚~40˚C, 30~95%RH

Temperature differential between inside and outside detector casing

≤10˚C max. (see NOTE 1)

Test gas conditions

1250±100ppm iso-butane in air at 20˚±2˚C, 65±5%RH

Circuit conditions

VH=5.0±0.05V DC VC=5.0±0.05V DC

Model No.

TGS2610-C00

Heater Current

56±5mA

Heater Resistance

approx 59Ω at room temp.

Heater Voltage

5.0±0.2V DC

Load Resistance

variable 0.45kΩ min

Sensing Principle

MOS type

Circuit Voltage

5.0±0.2V DC

Sensor Resistance

1.0~10.0kΩ in 1800ppm iso-butane

Standard Package

TO-5 metal can

Target Gases

Butane, LP gas

Test Gas Conditions

iso-butane in air at 20±2˚C, 65±5%RH

Heater power consumption

280mW VH = 5.0V DC
