Waveshare PN532 NFC HAT for Raspberry Pi, I2C / SPI / UART

0 Reviews
Available on backorder

3,065.47 (Including tax)

  1. Model: PN532 NFC HAT
  2. Operating voltage: 3.3V/5V
  3. NFC controller: PN532
  4. Operating frequency: 13.56MHz
  5. Communication interfaces: I2C, SPI, UART
  6. Standard Raspberry Pi 40PIN GPIO extension header

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%2,912.20 (Including tax)
11 - 208%2,820.22 (Including tax)
21 - 4010%2,758.93 (Including tax)
41 - 10012%2,697.61 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24310814

Product details

Near Field Communication (NFC) technology allows users to make secure transactions, exchange digital content, and connect electronic devices with a touch. NFC transmissions are short range (from a touch to a few centimeter) and require the devices to be in close proximity.

Near-field communication technology allows two devices to communicate wirelessly. The technology can be embedded in a small tag to facilitate data transfer between nearby mobile phones, laptops, tablets, and other electronics. NFC tags are often compared to RFID, but the two are different

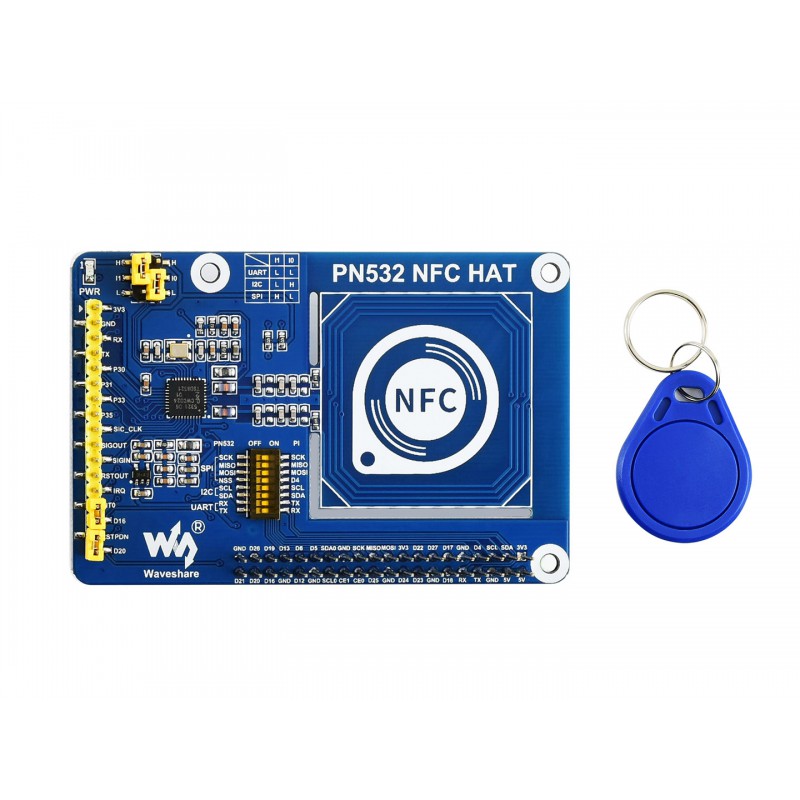

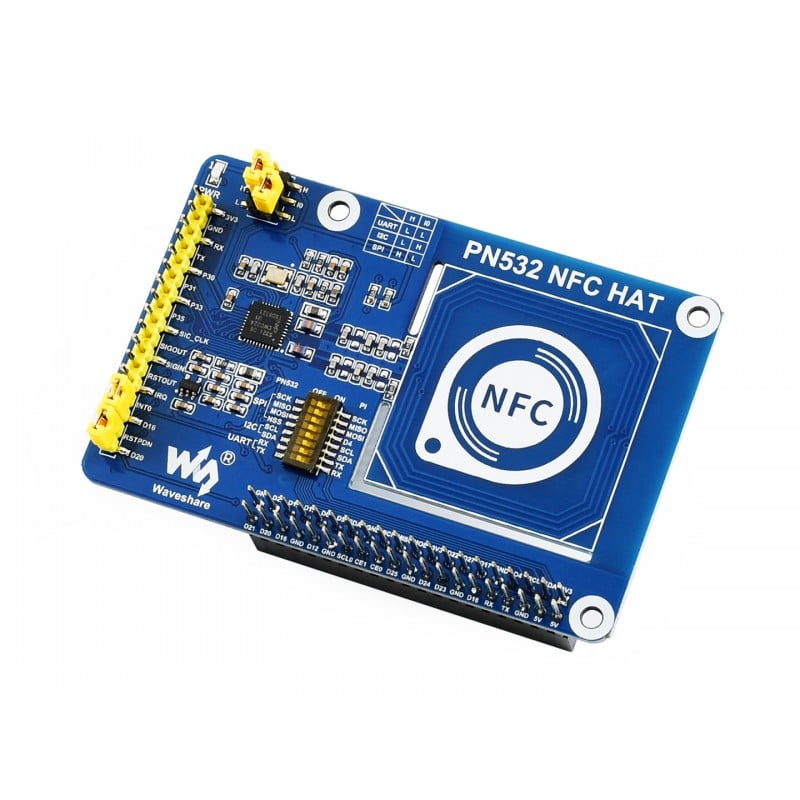

This is a Raspberry Pi NFC HAT based on PN532 operating in the 13.56MHz frequency range. It supports three communication interfaces: I2C, SPI, and UART. NFC (Near Field Communication) is a wireless technology allows contact-less point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control system, smart tickets, meal card, etc.

Based on the popular NFC controller PN532 with multi interface options, this HAT will easily enable NFC function for your Raspberry Pi. Operating mode :reader/writer mode supporting ISO/IEC 14443A / MIFARE scheme ,reader/writer mode supporting FeliCa scheme ,reader/writer mode supporting ISO/IEC 14443B scheme ,card operation mode supporting ISO 14443A / MIFARE scheme ,card operation mode supporting FeliCa scheme ,card operation mode supporting ISO/IEC18092, ECM340 point-to-point

Application:

  1. Contact-less payment system
  2. Bluetooth and WiFi devices chaining
  3. Social sharing function like sharing contacts, photos, and videos
  4. Smart phone NFC app

jifoidfjfiOIIRUEWNWE G


Features:

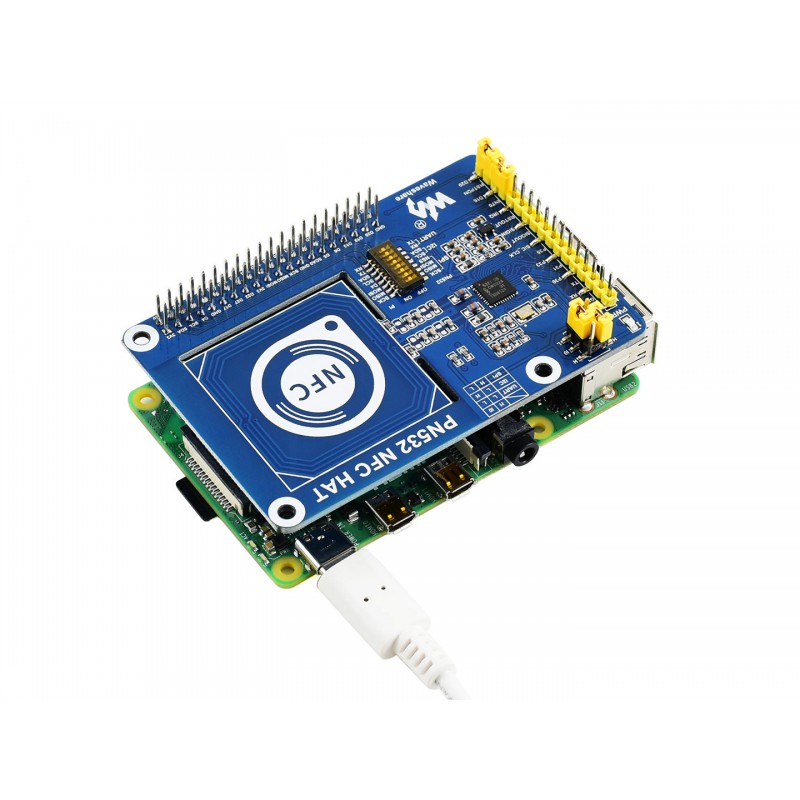

  1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  2. Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc.
  3. Three interface options: I2C, SPI, and UART, configured via jumpers and switches
  4. Breakout control pins, for easily connecting with host boards like STM32/Arduino
  5. Comes with development resources and manual (examples for Raspberry Python/C, STM32, Arduino)
  6. Near-field communication technology allows two devices to communicate wirelessly

Package include:

1 X PN532 NFC HAT

1 X MIFARE Classic 1K Card

Additional information

Model

PN532 NFC

Product

NFC HAT

Operating voltage

3.3V/5V

Operating frequency

13.56MHz

Communication interfaces

I2C, SPI, UART (default)

Default baud-rate

115200 bps

Product weight

38g

Operating modes

reader/writer mode supporting ISO/IEC 14443A / MIFARE scheme reader/writer mode supporting FeliCa scheme reader/writer mode supporting ISO/IEC 14443B scheme card operation mode supporting ISO 14443A / MIFARE scheme card operation mode supporting FeliCa scheme card operation mode supporting ISO/IEC18092, ECM340 point-to-point
