Waveshare RPi IR-CUT Camera, Better Image in Both Day and Night

SKU: rz24311060
In Stock

2,289.00

  1. Brand: REES52 XYG-Raspberry Pi
  2. Connector Type: Infrared
  3. Special Feature: Infrared, Night Vision
  4. Video Capture Resolution: 1080p
  5. Are Batteries Included: No
  6. Camera CCD size: 1/4inch
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

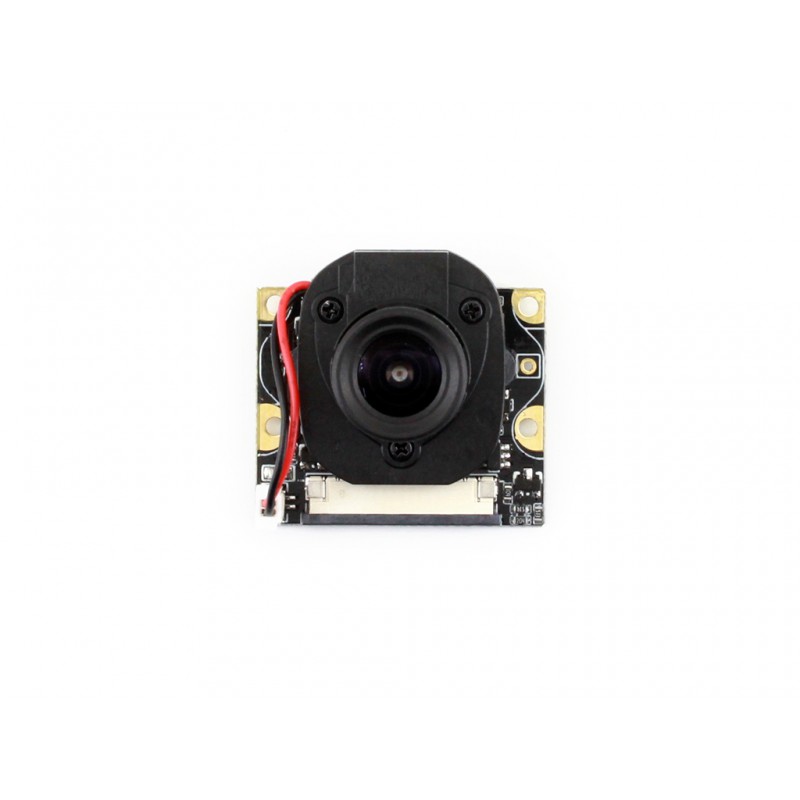

Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision.to test the camera you need to connect a HDMI display for previewing .The connectors of the DSI interface (display) and the CSI interface (camera) look the same, please take care of it when you connect the camera. The CSI interface is placed between the Audio jack and the HDMI port. the CSI connector of Pi zero is beside the Power interface. If you use Compute Module, please check the actual place of the carrier board.


Features:

  1. Raspberry Pi Camera, supports all revisions of the Pi
  2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight
  3. Comes with infrared LED  supports night vision
  4. 5 megapixel OV5647 sensor
  5. Adjustable focus distance
  6. Supports connecting infrared LED and/or fill flash LED

Package Include:

1 X RPi IR-CUT Camera

2 X Infrared LED Board

1 X 15-pin FFC (opposite sides contact)

Additional information

Camera CCD size

1/4inch

Aperture (F)

2

Focal Length

3.6mm

Angle of View (diagonal)

50 degree

Sensor best resolution

1080p

4 screw holes

Provides: 3.3V power output, Supports connecting infrared LED
