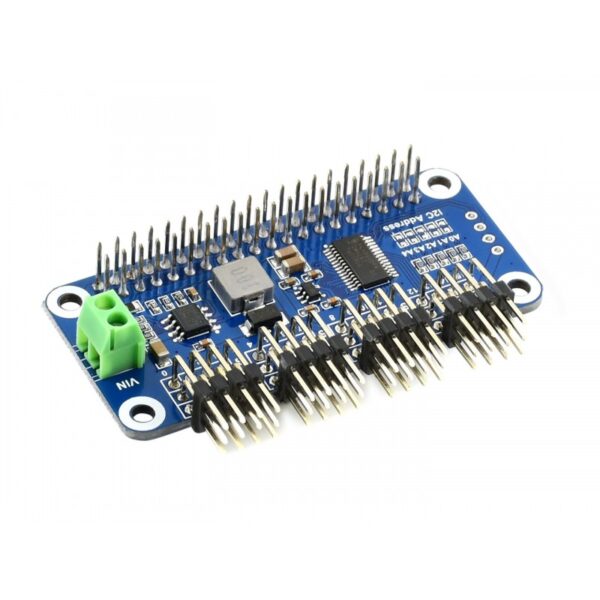

Waveshare Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C

14 People watching this product now!

SKU: rz24323336 Category: Raspberry Pi Hats

Description

This is a Waveshare Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C. Needless to say, the Raspberry Pi is powerful enough in most cases, yet it’s not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally, get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you.

This HAT can be used to drive servos such as:

SG90 Servo
MG90S Servo
MG996R Servo

Note: Raspberry pi is not included in this kit. You have to buy it separately

Features:

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
I2C controlled, using only 2 pins
Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal
Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
Reserved I2C control pins, allows working with other control boards
Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)

Package Includes:

1 x Waveshare Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C

Additional information

Input Voltage (V)	5V (Pi connector) OR 6V~12V (VIN terminal)
Logic Input (V)	3.3
Driver	PCA9685
Interface Type	I2C
Mounting Holes Diameter (mm)	3
Length (mm)	65
Width (mm)	30
Height (mm)	19
Weight (gm)	22
