Waveshare SIM7600G-H M.2 4G HAT for Raspberry Pi LTE CAT4 High Speed 4G/3G/2G GNSS Global Band

10 People watching this product now!

SKU: rz24313925 Category: Raspberry Pi Hats

Description

This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high-speed LTE CAT4 global band connection. By connecting it to a PC, Raspberry Pi, or Jetson Nano host board, it is easy to enable 4G high-speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.

Features:

Supports dial-up, phone calls, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high-speed 4G communication
Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
The onboard USB-C connector, enabled via a switch, for connecting the standalone power supply for the module, allows more loads, a stable and flexible power supply
Onboard power supply on/off switch, reset button, and LED indicator, easy to turn on/off the module or monitor the operating status
Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
Onboard audio jack and audio decoder, allow audio operation like making a phone call
High-efficiency power supply circuit, up to 3A output current

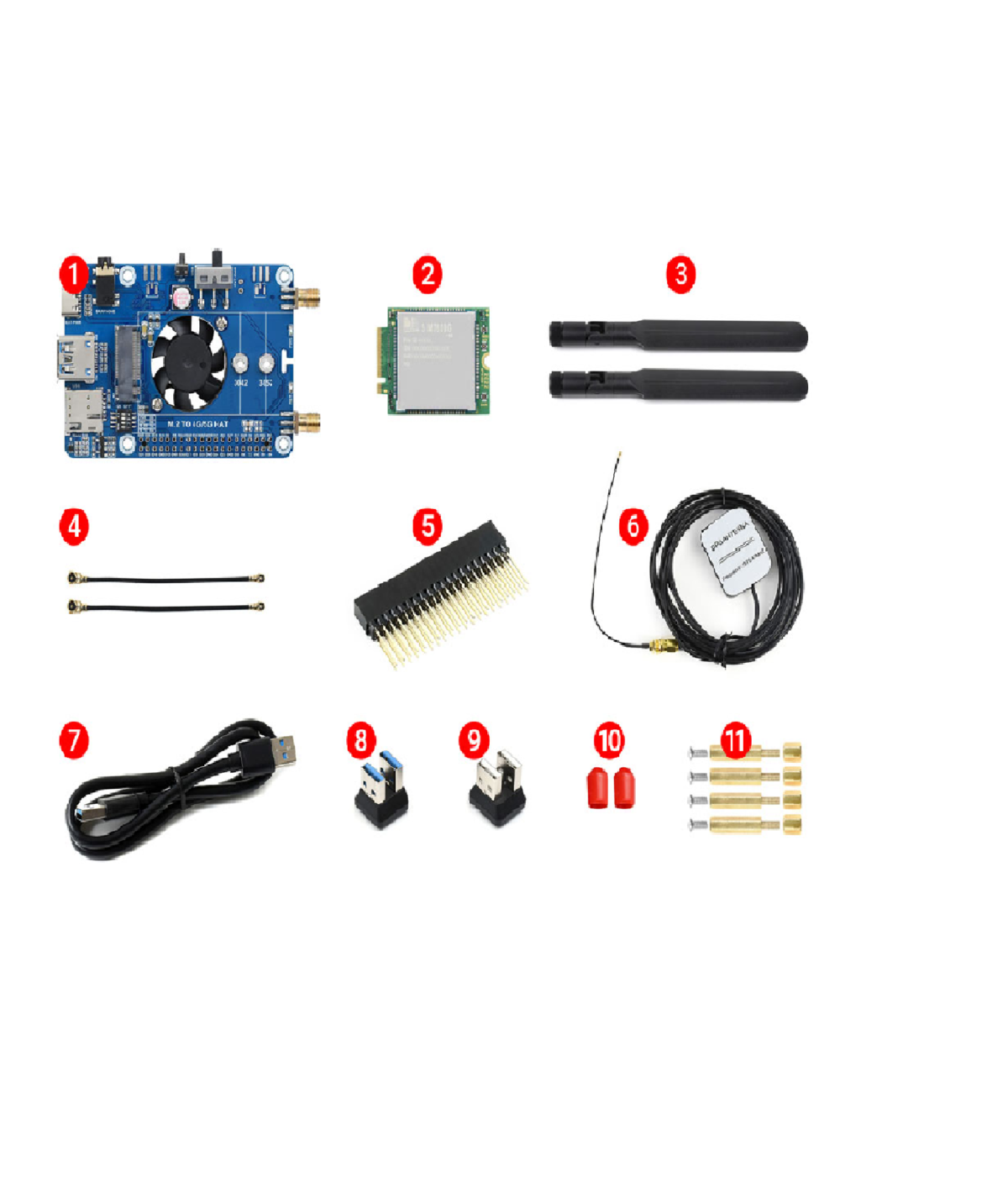

Packages Includes:

1 x Waveshare SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 High Speed, 4G/3G/2G, GNSS, Global Band

Additional information

FREQUENCY BAND	LTE Cat-4: LTE-FDD: B1 , B2 , B3 , B4 , B5 , B7 , B8 , B12 , B13 , B18 , B19 , B20 , B25 , B26 , B28 , B66 LTE-TDD: B34 , B38 , B39 , B40 , B41 3G: UMTS/HSDPA/HSPA+: B1 , B2 , B4 , B5 , B6 , B8 , B19 2G: GSM/GPRS/EDGE: 850 , 900 , 1800 , 1900 MHz
GNSS	Satellite systems: GPS , Beidou , GLONASS , GALILEO , QZSS Receiver: type 16-channel , C/A Code Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) , Cold starts: -148 dBm Time-To-First-Fix (open air) Cold starts: <35s , Hot starts: <1s
SMS AND AUDIO	SMS Supported types: MT , MO , CB , Text , PDU , Storage: USIM card and ME (default) Audio feature: Supports echo cancellation , Supports noise reduction
