Waveshare Solar Power Management Module, for 6V~24V Solar Panel

1,097.81 (Including tax)

  1. Model: Waveshare Solar Power Management Module
  2. Solar panel input voltage : 6V~24V
  3. Micro USB input voltage : 5V
  4. Pinheader / USB output : 5V 1A
  5. Charging cutoff Voltage: 4.2V±1%

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%1,042.91 (Including tax)
11 - 208%1,009.98 (Including tax)
21 - 4010%988.04 (Including tax)
41 - 10012%966.07 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
SKU: rz24310813 Category:
Description

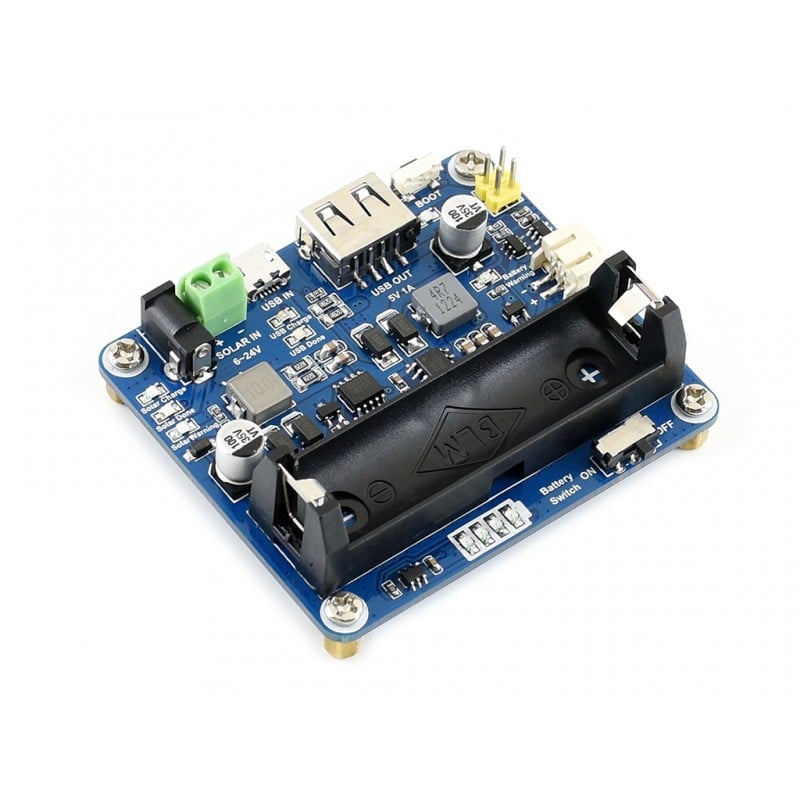

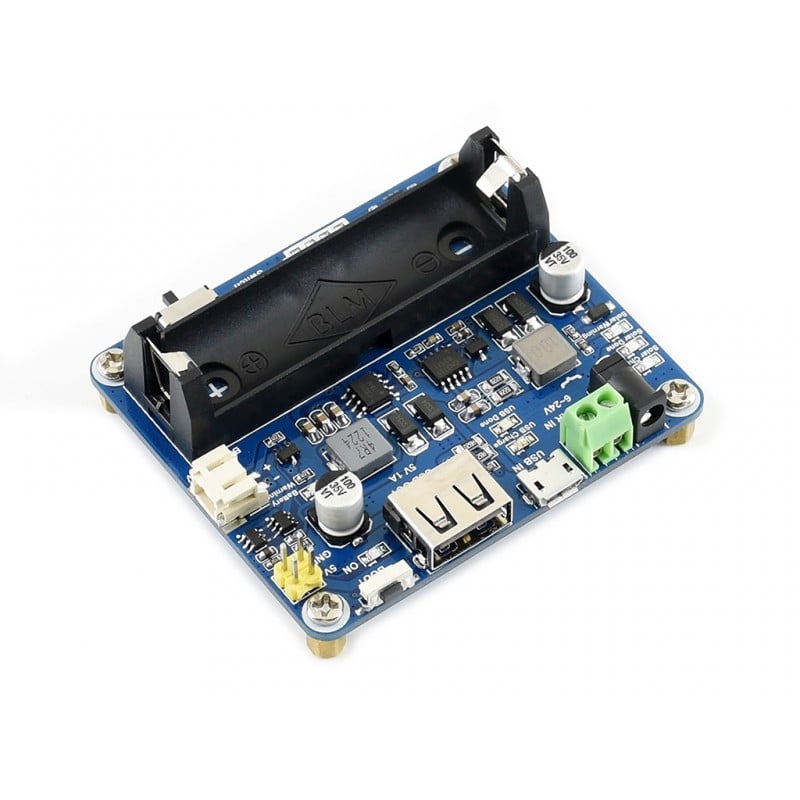

This solar power management module is designed for 6V~24V solar panel. It can charge the 3.7V rechargeable Li battery through solar panel or USB connection, and provides 5V/1A regulated output.

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar powered, low-power IoT, and other environmental protection projects.


Features:

  1. Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  2. Supports solar panel / USB connection battery charging
  3. For 6V~24V solar panel, DC-002 jack input or screw terminal input

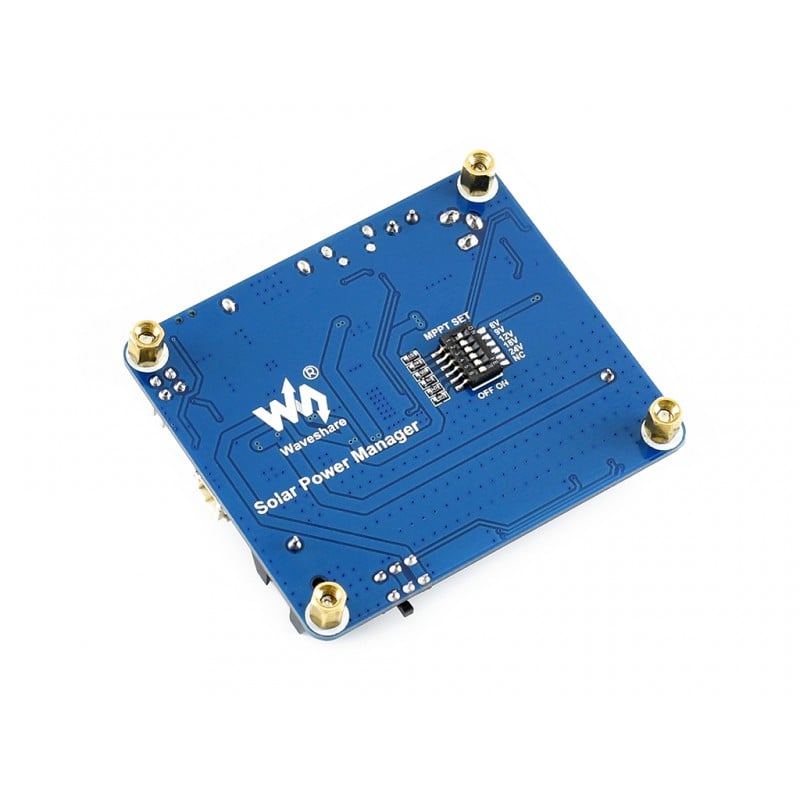

  4. Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
  5. Two 5V output interfaces: pin headers and USB port
  6. Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance

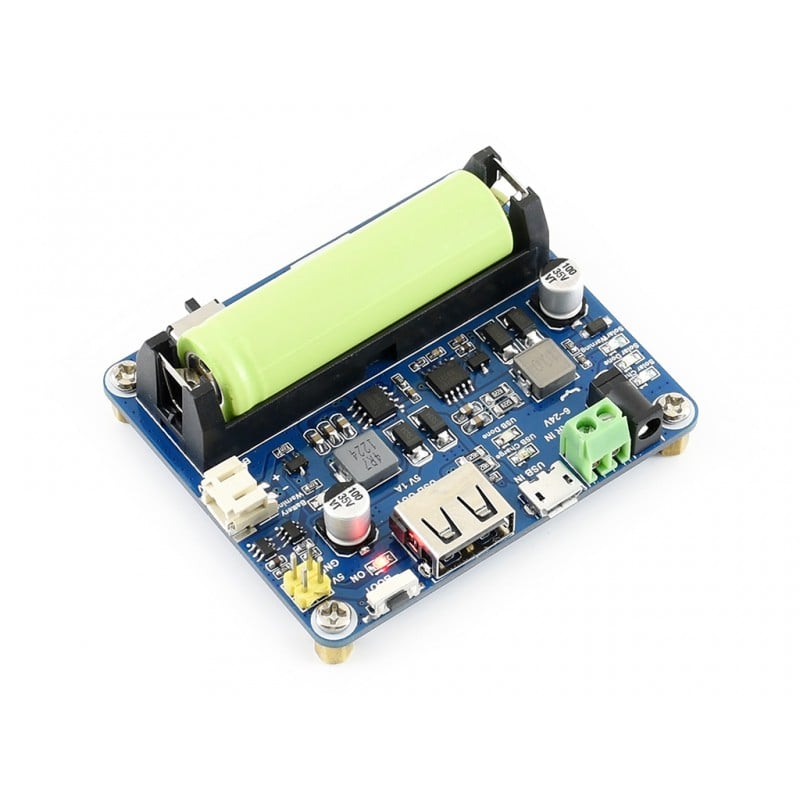

  7. 14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V rechargeable Li battery
  8. Several LED indicators, for monitoring the status of solar panel and battery
  9. Multi protection circuits: Over charge / over discharge / reverse protection / over heat / over current, stable and safe to use

Package include:

1 X Solar Power Manager

Additional information
Solar panel input voltage

6V~24V

Micro USB input voltage

5V

Pin header / USB output

5V 1A

Charging cutoff Voltage

4.2V±1%

Over discharging protection voltage

2.9V±1%

Solar panel charge efficiency

~78%

USB charge efficiency

~82%

3.7V battery boost output efficiency

~86%

Max quiescent current

<2mA

Operating Temperature

-40℃~85℃

Product Weight

29g
