₹5,717.05 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹5,431.18 (Including tax) |
11 - 20 | 8% | ₹5,259.67 (Including tax) |
21 - 40 | 10% | ₹5,145.34 (Including tax) |
41 - 100 | 12% | ₹5,031.00 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

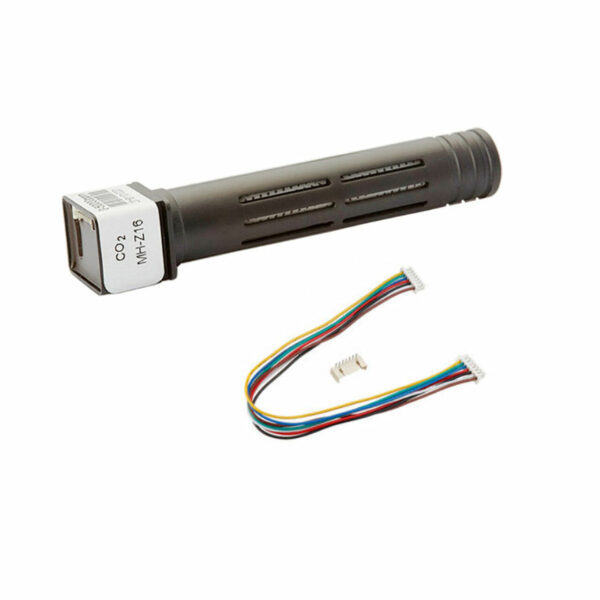

MH-Z16 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature sensor can do temperature compensation; and it has digital output . This commons type infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, Precision optical circuit design and superior circuit design.
1 x Winsen MH-Z16 NDIR CO2 SENSOR
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Detection Gas |
Oxygen concentration |
---|---|
Detection range |
0~100% |
Working Pressure Range |
0.5~2.0Bar |
Working Voltage |
3.3~5.5V DC |
Output Signal |
I2C ,UART (0~3V) ,analog voltage |
Lifespan |
>2 years (in air) |
Working Humidity Range |
0-99% RH (non-condensing) |
Working Temperature Range (°C) |
-20°C ~ +50°C |
Product Dimensions |
32mm x 27mm/1.26 x 1.06 inch |
Response Time ( μS) |
<5S |
Mounting Holes Diameter (mm) |
inner diameter 3.1mm(0.12 inch)/outer diameter 6mm(0.24 inch) |
Out of stock
Out of stock
Out of stock
Out of stock
Model No. |
TGS2602-B00 |
---|---|
Heater Voltage |
5.0±0.2V DC |
Circuit Voltage |
5.0±0.2V DC |
Heater power consumption |
280mW (typical) |
Heater Current |
56±5mA |
Sensing Principle |
MOS type |
Heater Resistance |
approx 59Ω at room temp. (typical) |
Load Resistance |
variable 0.45kΩ min |
Sensor Resistance |
10kΩ ~ 100kΩ in air |
Standard Package |
TO-5 metal can |
Target Gases |
Air contaminants (VOCs ,ammonia ,H2S ,etc.) |
Test Gas Conditions |
normal air at 20±2˚C ,65±5%RH |
Out of stock
Model No. |
TGS2610-C00 |
---|---|
Heater Current |
56±5mA |
Heater Resistance |
approx 59Ω at room temp. |
Heater Voltage |
5.0±0.2V DC |
Load Resistance |
variable 0.45kΩ min |
Sensing Principle |
MOS type |
Circuit Voltage |
5.0±0.2V DC |
Sensor Resistance |
1.0~10.0kΩ in 1800ppm iso-butane |
Standard Package |
TO-5 metal can |
Target Gases |
Butane ,LP gas |
Test Gas Conditions |
iso-butane in air at 20±2˚C ,65±5%RH |
Heater power consumption |
280mW VH = 5.0V DC |
Out of stock
Model No. |
TGS3870-F00 |
---|---|
Circuit Voltage |
5.0±0.2V DC pulse |
Load Resistance |
variable (>0.75kΩ) |
Sensing Principle |
MOS type |
Sensor Resistance |
0.3kΩ~5.0kΩ in 3000ppm methane 2kΩ~40kΩ in 200ppm CO |
Standard Package |
Plastic base and metal can |
Target Gases |
Methane and Carbon Monoxide |
Test Gas Conditions |
Target gas in air at 20±2˚C ,65±5%RH |
Out of stock
Model No. |
TGS5042-A00 |
---|---|
Target Gases |
Carbon monoxide |
Typical detection range |
0 ~ 10 ,000ppm |
Output current in CO |
1.2~2.4nA/ppm |
Baseline offset(*1) |
<±10ppm equivalent |
Operating & storage temperature (*2,*3) |
-5ËšC ~ +55ËšC |
Operating humidity |
5 ~ 99%RH (no condensation) |
Response time (T90) |
within 60 seconds |
Standard test conditions |
20±2˚C ,40±10%RH |
