₹2,144.06 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹2,036.85 (Including tax) |
| 11 - 20 | 8% | ₹1,972.54 (Including tax) |
| 21 - 40 | 10% | ₹1,929.66 (Including tax) |
| 41 - 100 | 12% | ₹1,886.78 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

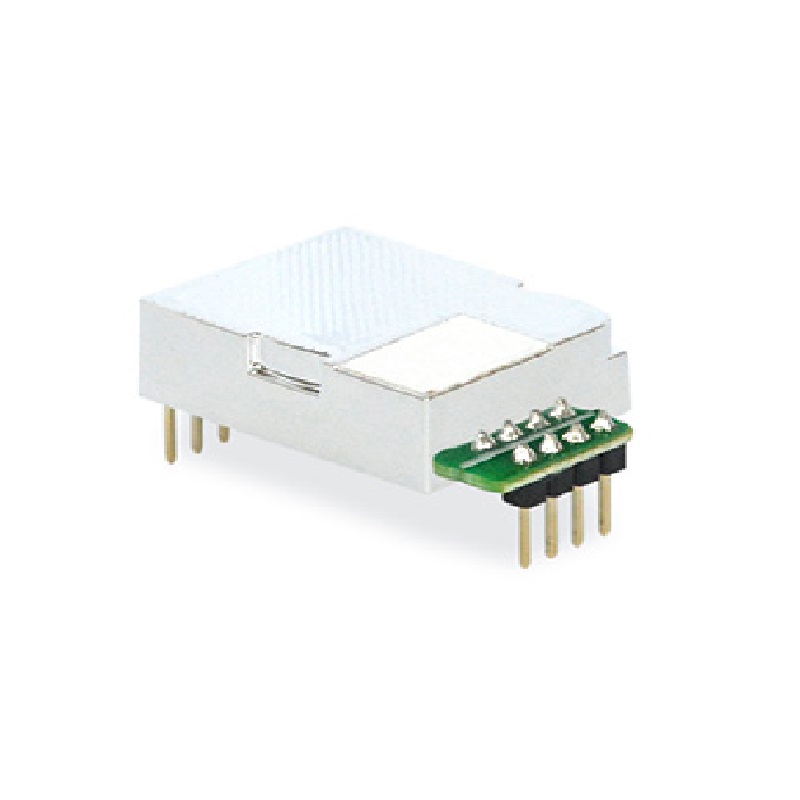

MH-Z19E NDIR infrared gas module is a common type, small size sensor, pins type or terminal type, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.
Applications:Â
1 x Winsen MH-Z19E NDIR CO2 sensor for indoor air quality monitoring
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
| Particle Measurement Range |
0.3~1.0μm; 1.0~2.5μm; 2.5~10μm |
|---|---|
| Particle Counting Efficiency |
50%@0.3μm ,98%@>=0.5μm |
| Resolution of Particle Mass Concentration |
1μg/mᶟ |
| Temperature Measurement Range |
0~99℃ |
| Temperature Measurement Resolution |
0.1℃ |
| Humidity Measurement Range |
0~99% |
| Humidity Measurement Resolution |
0.1% |
| Humidity Measurement Accuracy |
±2% |
| Single Response Time |
<1s |
| Comprehensive Response Time |
≤10s |
| DC Supply Voltage |
Typ: 5V Min: 4.5V Max: 5.5V |
| Working Current |
≤100mA |
| Standby Current |
≤200mA |
| Data Interface Level |
L<0.8V ,H>2.7V ,maximum level voltage 3.3V |
| Working Temperature Range |
10~50℃ |
| Working Humidity Range |
0~99% |
| Storage Temperature Range |
40~80℃ |
Out of stock
Out of stock
| Model No. |
TGS2602-B00 |
|---|---|
| Heater Voltage |
5.0±0.2V DC |
| Circuit Voltage |
5.0±0.2V DC |
| Heater power consumption |
280mW (typical) |
| Heater Current |
56±5mA |
| Sensing Principle |
MOS type |
| Heater Resistance |
approx 59Ω at room temp. (typical) |
| Load Resistance |
variable 0.45kΩ min |
| Sensor Resistance |
10kΩ ~ 100kΩ in air |
| Standard Package |
TO-5 metal can |
| Target Gases |
Air contaminants (VOCs ,ammonia ,H2S ,etc.) |
| Test Gas Conditions |
normal air at 20±2˚C ,65±5%RH |
Out of stock
| Model No. |
TGS3870-F00 |
|---|---|
| Circuit Voltage |
5.0±0.2V DC pulse |
| Load Resistance |
variable (>0.75kΩ) |
| Sensing Principle |
MOS type |
| Sensor Resistance |
0.3kΩ~5.0kΩ in 3000ppm methane 2kΩ~40kΩ in 200ppm CO |
| Standard Package |
Plastic base and metal can |
| Target Gases |
Methane and Carbon Monoxide |
| Test Gas Conditions |
Target gas in air at 20±2˚C ,65±5%RH |
Out of stock
| Model number |
TGS5141-P00 |
|---|---|
| Output current in CO |
1.2~3.2nA/ppm |
| Target Gases |
Carbon monoxide |
| Typical detection range |
0 ~ 5 ,000ppm |
| Baseline offset(*1) |
<±10ppm equivalent |
| Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
| Operating humidity |
10 ~ 95%RH (no condensation) |
| Response time (T90) |
within 60 seconds |
| Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
| Standard test conditions |
20±2˚C ,40±10%RH |
| Weight |
approx. 2.5g |
