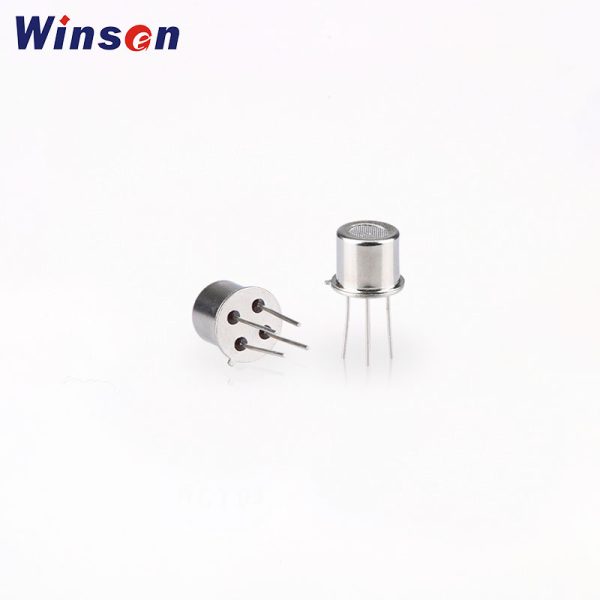

Winsen MP-3B Flat Surfaced Alcohol Sensor

11 People watching this product now!

SKU: rz24313530 Category: Gas and Dust Sensor

Description

MP-3B model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas (alcohol) exists , The sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electro circuit, Convert change of conductivity to correspond output signal of gas concentration.

Applications:

It is Used for detecting whether the driver and other people who drink alcohol, or detecting whether ethanol steamy exist in other places.

Feature:

Lower consumption
Small size
Fast response and resume
Highest sensitivity
Excellent stability and long life
Easy circuit and big signal output
Excellent selectivity
Heater consumption PH: ≤350mW

Specifications:

Model: MP-3B
Sensor Type: Flat surfaced semiconductor
Standard Encapsulation: Metal cap
Target Gas: Alcohol gas
Detection range: 0~500ppm alcohol
Loop Voltage Vc: ≤24V DC
Heater consumption PH: ≤350mW

Standard Circuit Conditions	Loop Voltage	Vc	≤24V DC
	Heater Voltage	VH	2.5V±0.1V AC or DC
	Load Resistance	RL	Adjustable
Sensor character under standard test conditions	Heater Resistance	RH	23.5Ω±4.5Ω (room tem.)
	Heater consumption	PH	≤350mW
	Resistance of sensitive material	RS	5KΩ～50KΩ(in50ppm C2H5OH)
	Sensitivity	S	Ro(in air)/Rs(50ppm C2H5OH)≥3
	Concentration Slope	α	≤0.6(R300ppm/R50ppmC2H5OH)
Standard test conditions	Tem. Humidity		22℃±2℃；55%±5%RH
	Standard test circuit		Vc:2.5V±0.1V VH:2.5V±0.1V
	Preheat time		Not less than 48 hours

Packages Includes:

1 x Winsen MP-3B Flat Surfaced Alcohol Sensor
