Wio RP2040 mini Dev Board

18 People watching this product now!

SKU: rz24318389 Category: Single Board Computer

Description

Wio RP2040 mini Dev Board is a development board based on the Wio RP2040 module with wireless function, supporting MicroPython programming. It has a dual-core 133MHz RP2040 cits hip, which is a low-power microcontroller with wireless functions. With powerful performance and small size, it is a perfect option for various IoT projects development.

The board has rich interfaces, including 28 GPIO PINs (19 PINs support PIO and PWM), 2 UART, 4 ADC, 2 SPI, 2 I2C. Some pins can be multiplexed, such as GP12 and GP13 with I2C, SPI, UART functions. That’s why 28 GPIO PINs can achieve more I/O Pins and interfaces. Wio RP2040 mini wireless development board supports a USB Type-C interface, which can supply power and download code. In addition to the onboard power LED light, we also added a user-controllable LED (it is connected to the GP13 pin). A RESET button (the screen is printed as “RUN” on the board) and a BOOT button (which can be used to re-upload the firmware).

Getting Started With Wio RP2040 mini Dev Board

Pinout:

Features:

Raspberry Pi Foundation’s RP2040 microcontroller
- Dual Cortex M0+ processors, up to 133 MHz
- 264 kB of embedded SRAM in 6 banks
2MB QSPI Flash Memory
On-board USB-C Connector for programming
- USB 1.1 Host/Device functionality
20x multifunctional GPIO Pins
2.4GHz Wireless connectivity
- Support IEEE802.11 b/g/n
- Support 2.4 ~ 2.4835 GHz
- Support Ap & Station mode
Buttons
- Boot
- Reset(RUN)
LEDs
- Power
- User-programmable LED(GP13)
Power Supply(2 methods)
- 5V via USB-C port(default)
- VIN(5V~3.6V) and GND header pins

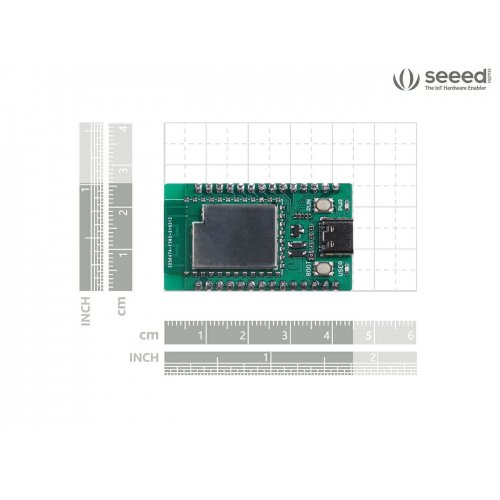

Dimensions: 25.8 x 45.5mm
Support programming languages
- MicroPython
- C/C++

Application:

Various Pico projects with wireless functions
Wireless control
Smart homes
Smart toys

Package Includes:

1 x Wio RP2040 mini Dev Board

Additional information

Operating Voltage(V)	3.3 to 5.5
Processor	Processors Dual Cortex M0+ processors , up to 133 MHz
Connectivity	Wireless connectivity 2.4〜2.4835 GHz
SRAM	264KB
Flash Memory	2mb
GPIO	20x multifunctional pins
Size ( L x W ) mm	25.8 x 45.5mm
