XT-90 High Current Connector Male-Female Pair

Original price was: ₹101.77.Current price is: ₹95.00. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%90.24 (Including tax)
11 - 208%87.40 (Including tax)
21 - 4010%85.49 (Including tax)
41 - 10012%83.60 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

14 People watching this product now!
Description

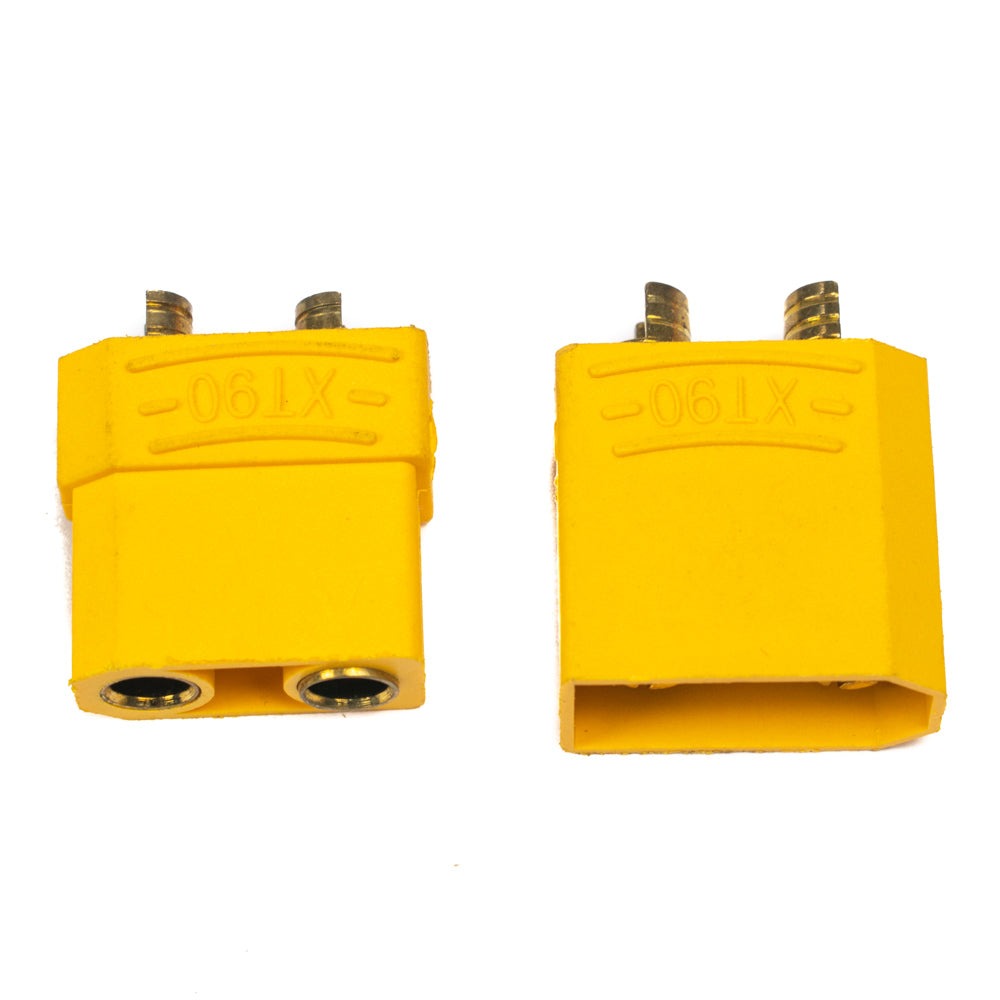

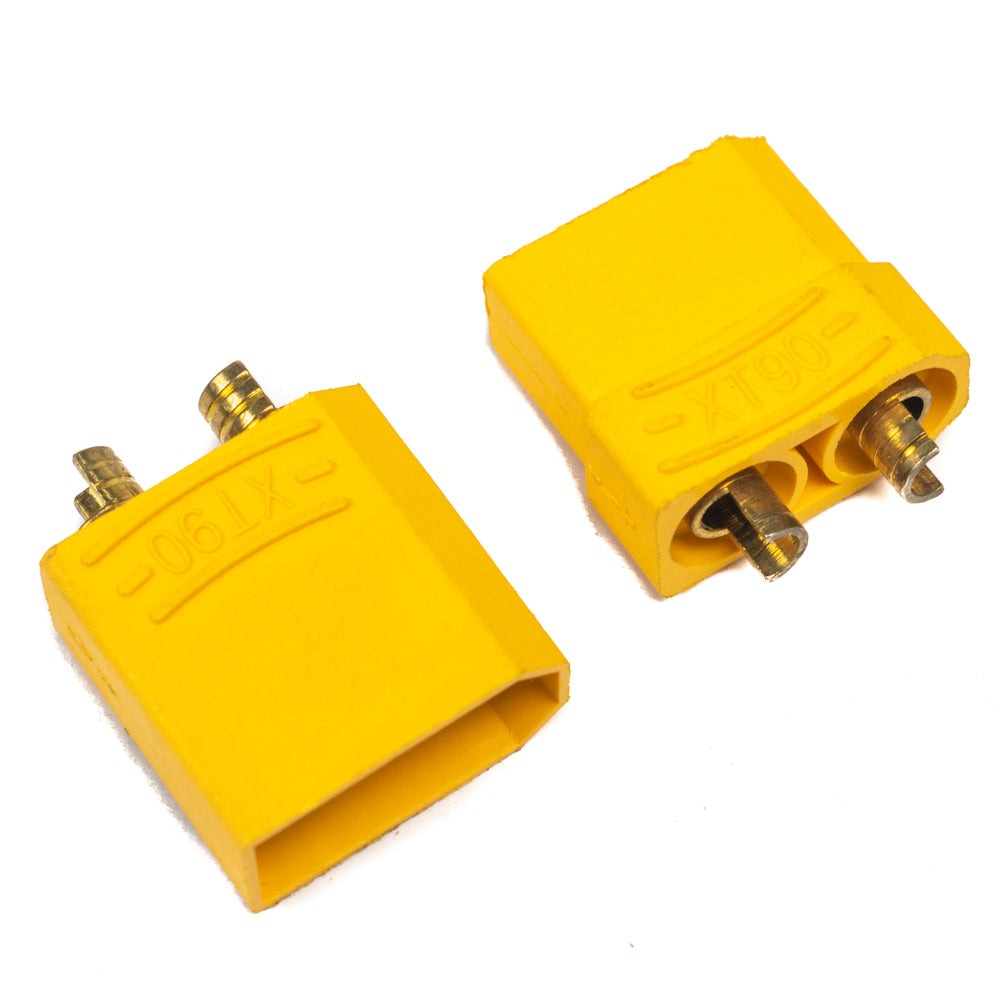

XT-90 connector has a female end for the battery and a male end for the charger. The design of the jacket’s rear concave shape can allow the shrink tube to be placed more deeply, protecting junctions from water vapour and making them easier to solder. Precision mould processing, close connection with no gaps, and leakproof. Clear “+” and “-” signs, and larger contact area, 4.5mm banana plug, can handle a continuous current of 90A, 120A high current peak. The new type housing and groove slot design make the connection stronger and eliminate any mistakes. Non-slip insulator that is simple to connect. The tail’s 180-degree outward shape allows wire to be soldered easily.

Features

  • Housing shape provides protection against shorting and reverse polarity
  • Can accept up to 8AWG wires
  • Semicircular solder terminals make it easy to install wires
  • Able to sustain 90A+ continuous current.
Specifications
Rated Operating Voltage 500V DC
Contact MaterialBrass
Current Handling Capacity90A
Allowed Wire Gauge14 ~ 12 AWG
Contact PlatingGold flash
Operating Temperature Range-20°C to 120°C
Flammability RatingUL94V-0
GenderMail-Female Pair
No. of Contact Points2
Connector TypeXT90
Metal Connector Size4.5mm
ColorYellow
Dimension38.6×21.5×11.2
Country of OriginChina
