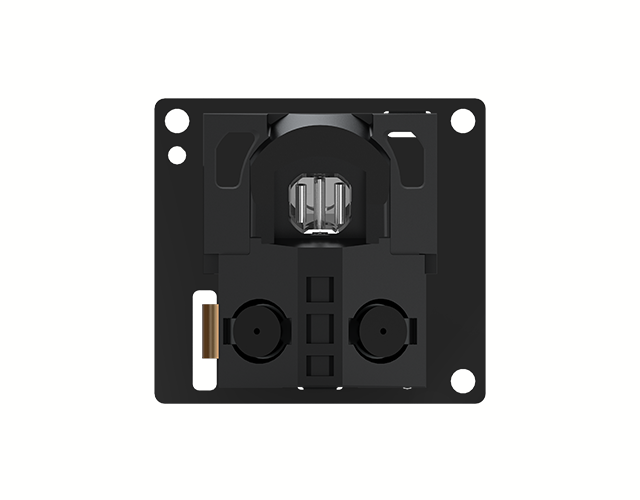

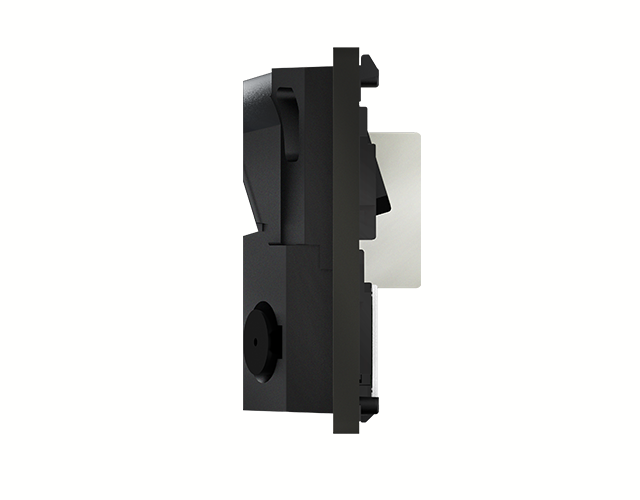

YDLIDAR GS2 Linear array solid LiDAR Sensor

19 People watching this product now!

SKU: rz24312533 Category: LiDAR Sensor

Description

YDLIDAR GS2 is a Linear array of solid LiDAR (hereinafter referred to as GS2). Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design, to achieve 100 degrees high-precision laser distance measurement, and output point cloud data of the scanning environment. It can be used for robot obstacle avoidance, path planning, etc.

Applications:

Robot obstacle avoidance
Obstacle avoidance of smart equipment
Navigation and obstacle avoidance of home service robots/vacuum clean robots

Features:

High accuracy, stable performance
High resolution of ranging angle, up to 0.6 degrees
Good obstacle avoidance effect, the smallest object with a diameter of 3mm can be
detected
Wide detection range, no blind zone in combination, FOV up to 100 degrees
Small detection range blind area, detectable distance is 25mm~300mm
Class I eye safety
10000h Service life

Packages Includes:

1 x YDLIDAR GS2 Linear array solid LiDAR Sensor

Additional information

Model	GS2
Product Type	Linear array solid LiDAR Sensor
Operating Voltage(V)	3.4 V
Operating Current (A)	95mA
Scan Angle	100°
Range Frequency	28Hz
Range Distance	25mm~300mm
Angle Resolution	0.6°
Baud rate	1500000bps
Life-time	10000h
Operating Temperature	40 ℃
Laser wavelength	860 nm
Laser power	25mW
