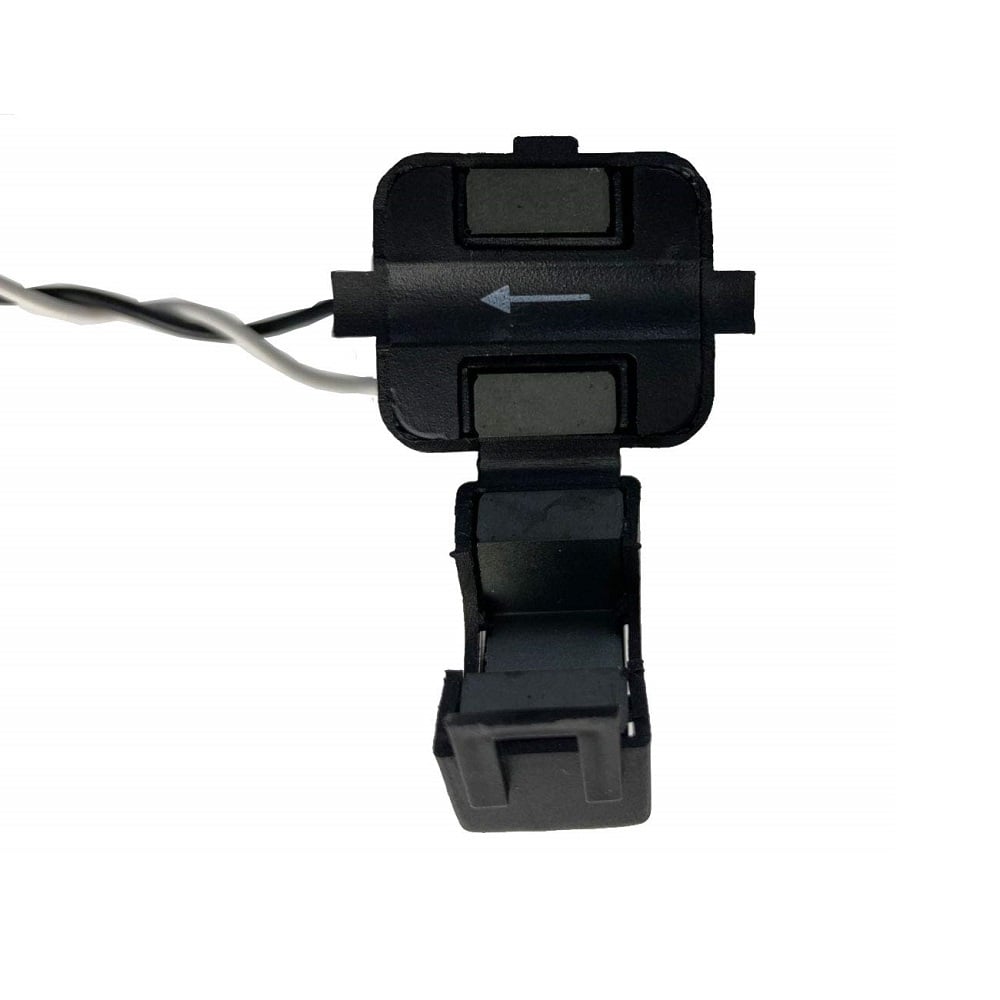

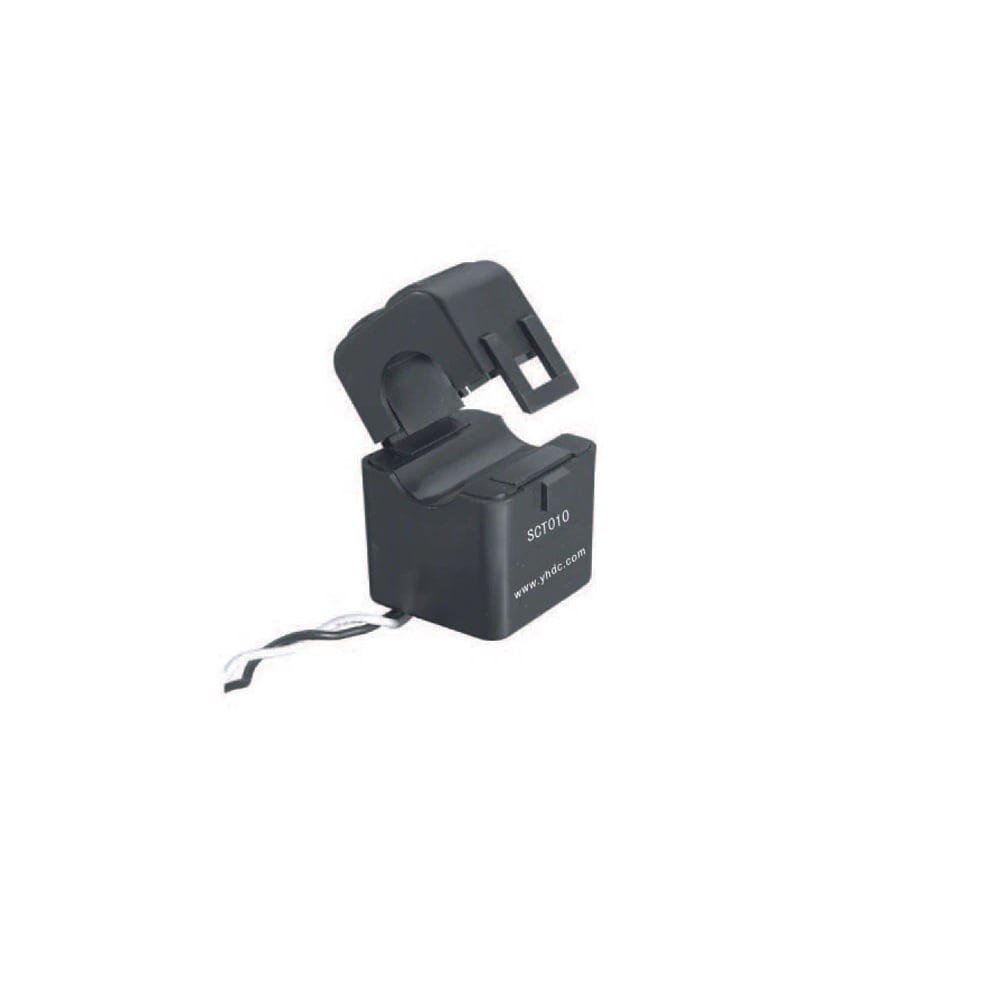

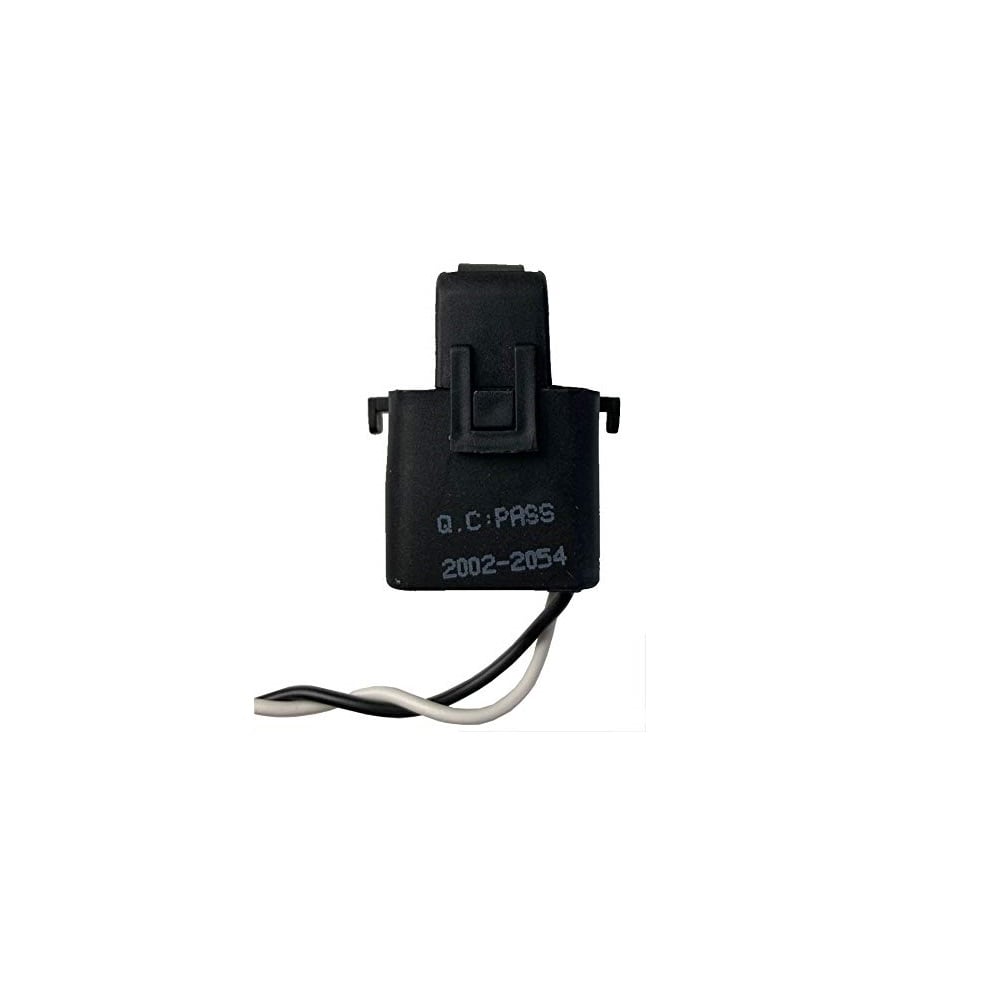

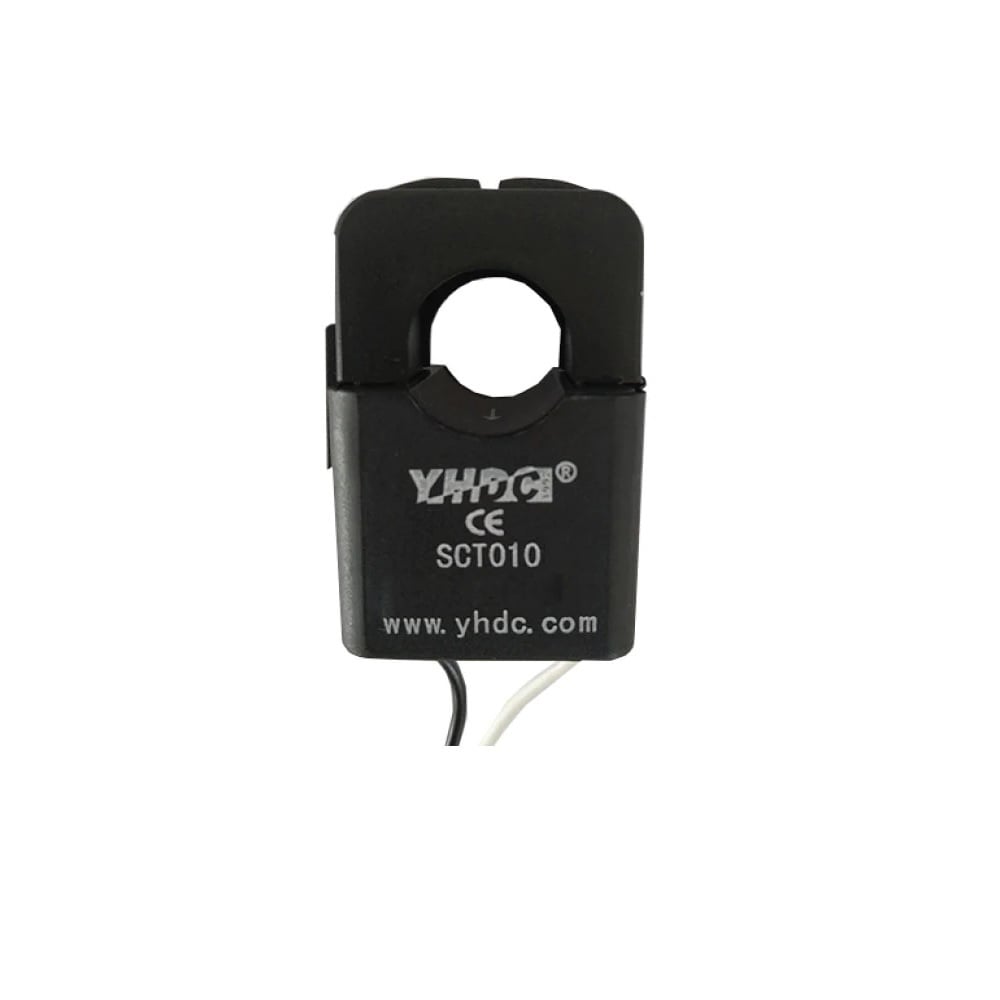

YHDC SCT010 50A:50mA Split Core Current Transformer

YHDC SCT010 50A:50mA Split Core Current Transformer is compatible with foreign products completely, built-in TVs.  Purpose: Applicable for the current measuring monitoring and protection of AC motor, lighting equipment, and air compressor.

Specifications:

1. Material of core: Ferrite
2. Working voltage: Phase voltage≤720V
3. Working temperature: -25℃～+60℃
4. Storage temperature: -30℃～+90℃
5. Frequency range: 50Hz～1KHz
6. Input: Bare conductor
7. Cable Length: 40 cm
8. output 50A: 50mA
9. Whole Diameter: 10
10. Dimensions (L x W x H) mm: 23 x 25 x 40
11. Weight: 35g

Package Includes:

1 x YHDC SCT010 50A:50mA Split Core Current Transformer
