Description

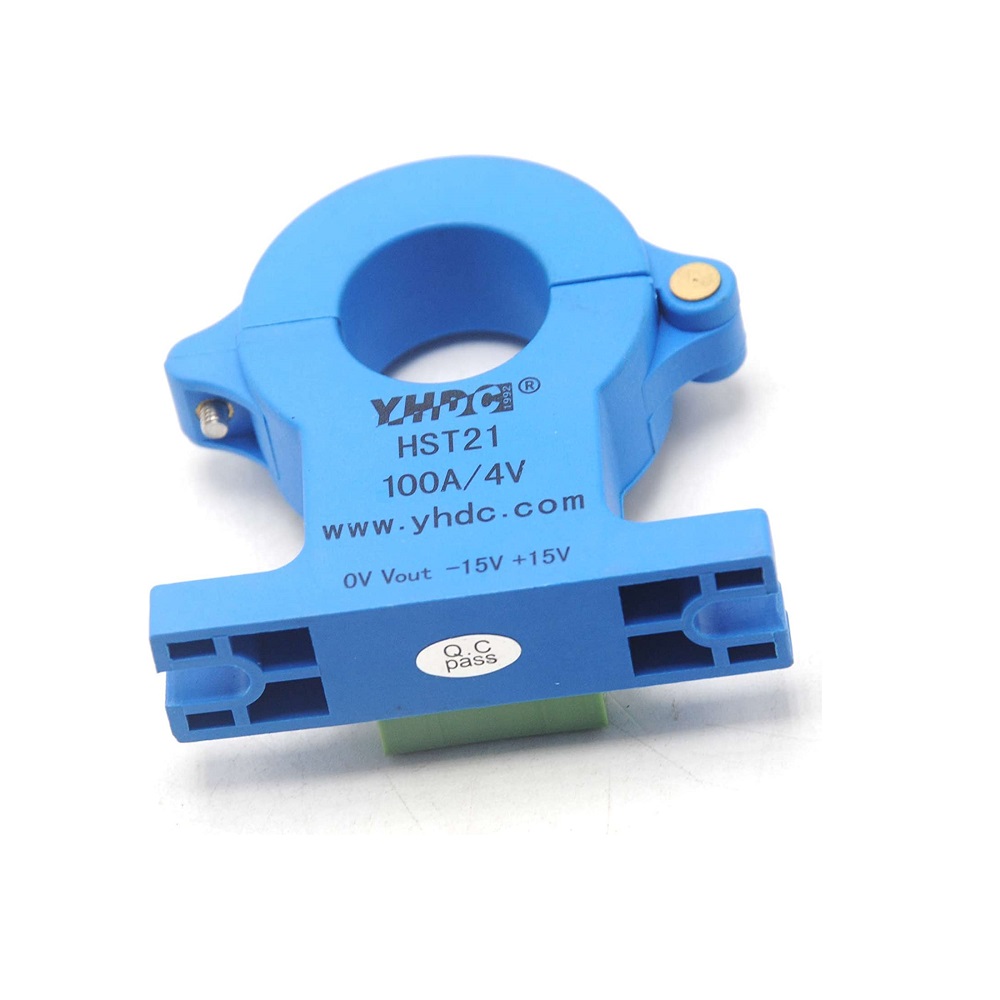

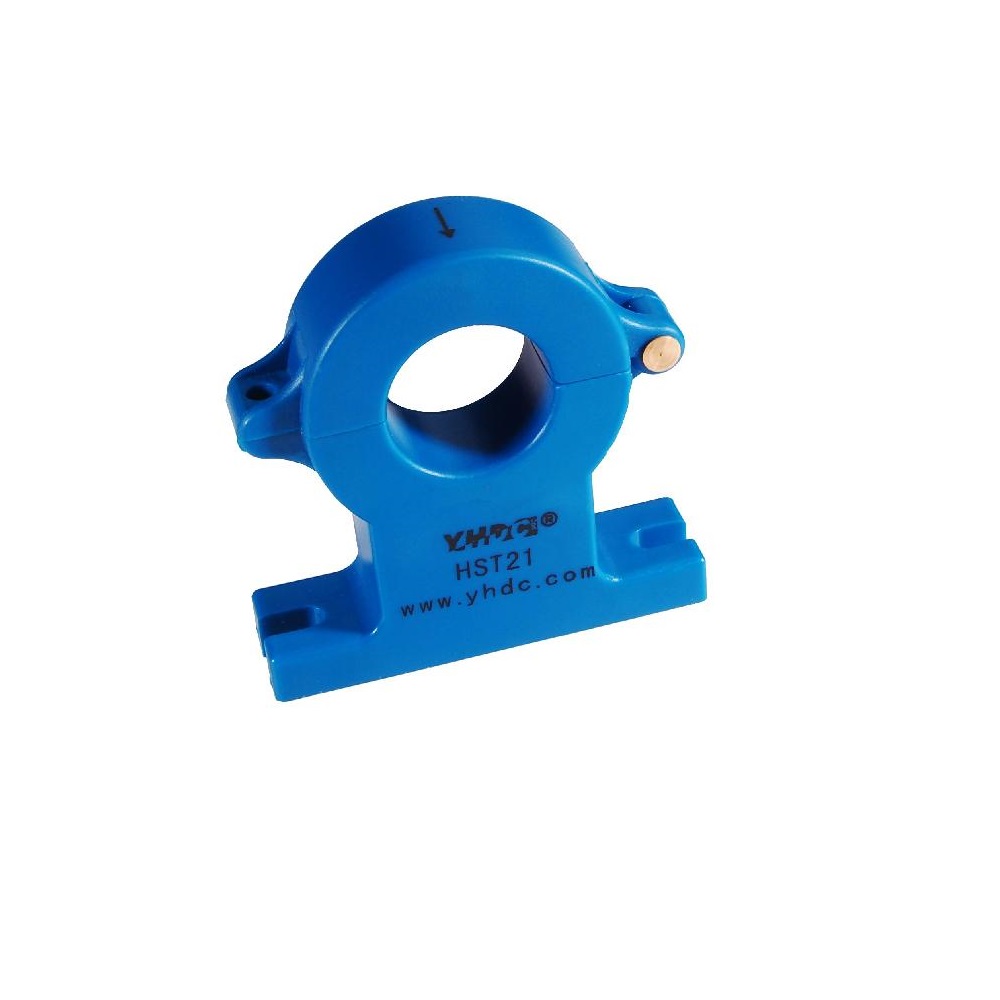

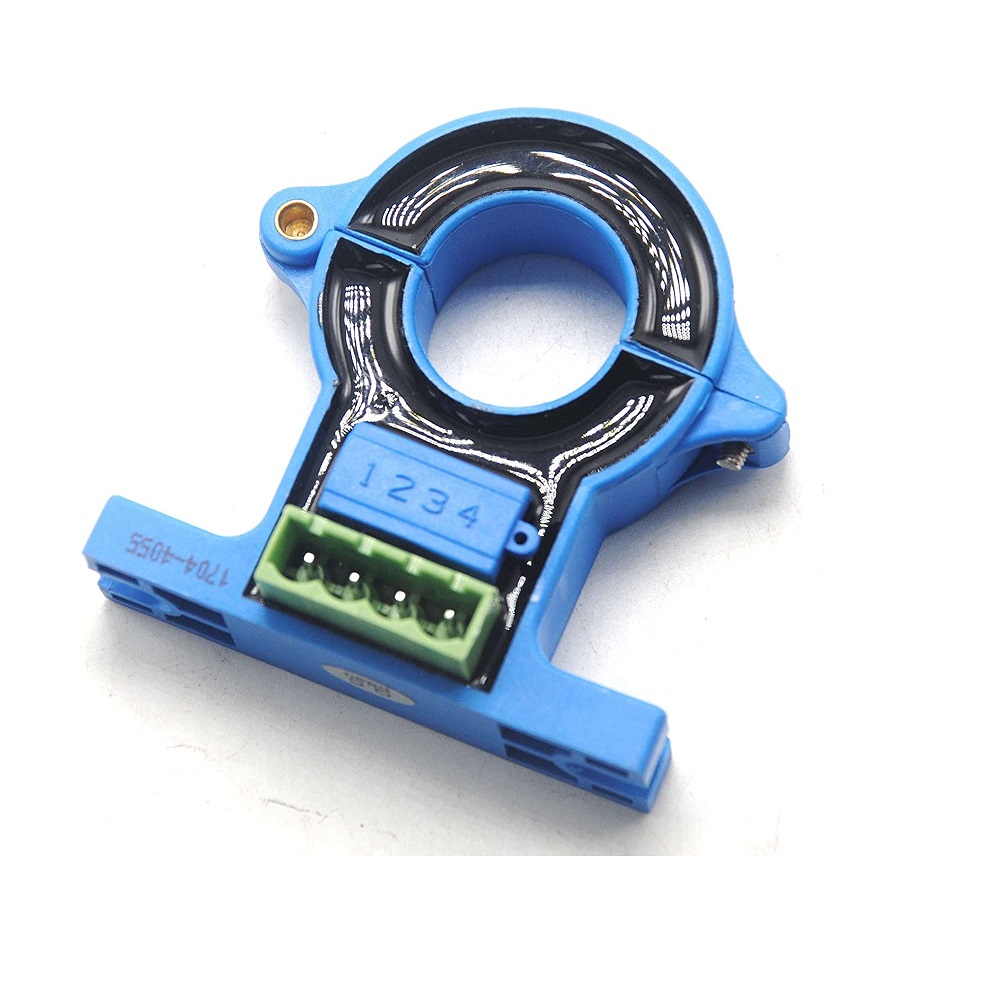

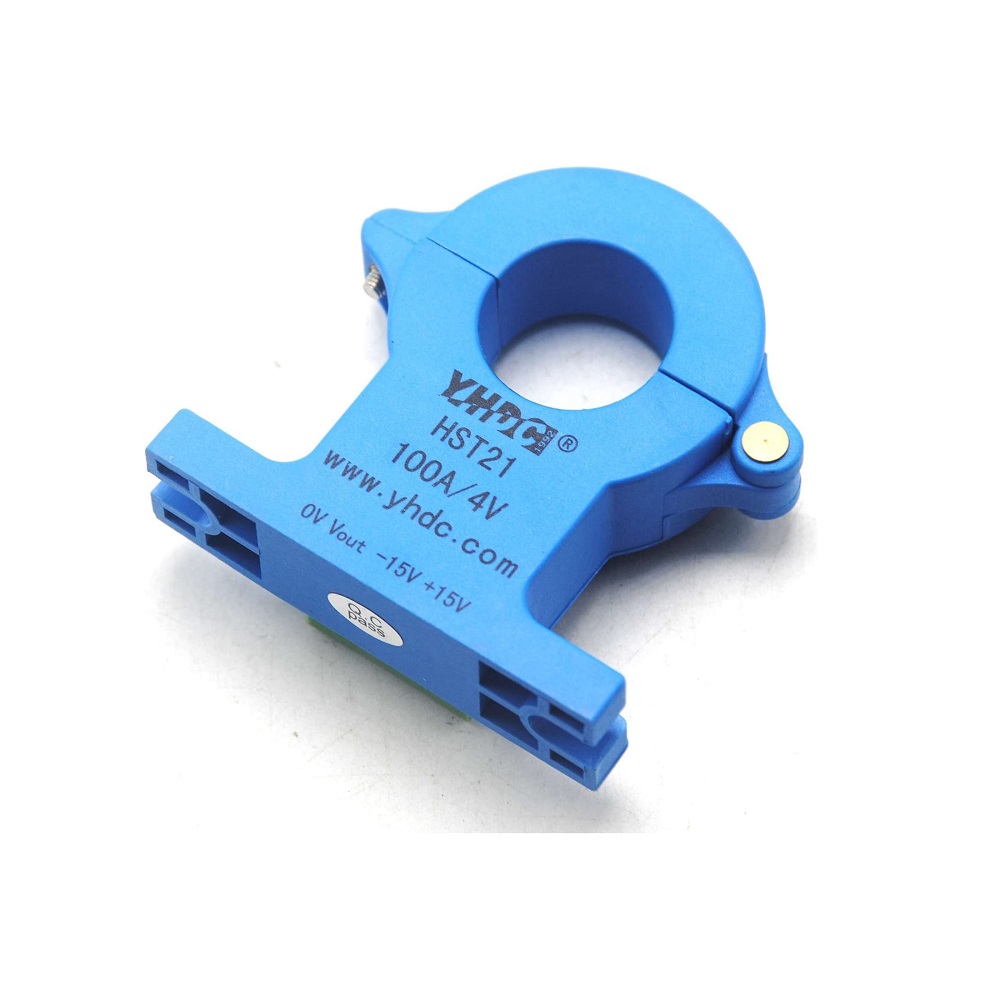

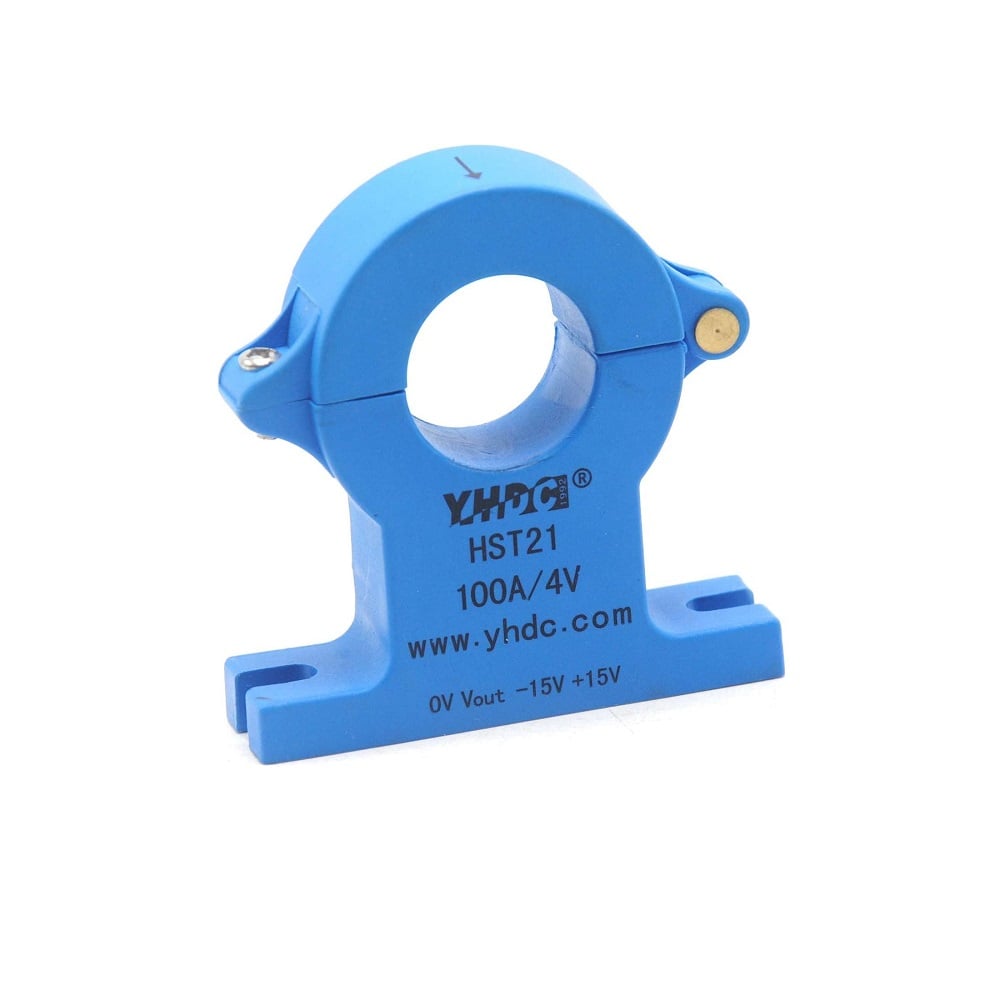

YHDC HST21 100A: 4V Split Core Current Sensor is Open loop, split core type, Sub-plate installation sensor which detects DC, AC, and pulse current. It is used for the current measuring monitoring and protection of AC motor, lighting equipment, and air compressor and Technical indicators.

Specifications and Features:

1. Input Current :100A
2. Power supply: 15V DC
3. Output voltage: 4V
4. Measure AC/DC / pulse current
5. Fire resistance: UL94-V0
6. Open loop hall current sensor
7. Split core current sensor hall effect
8. Work frequency: DC-20KHz
9. Dielectric strength: 6KV
10. Operating temperature: -40~+85°c

Package Includes:

1 x YHDC HST21-100A-4V Split Core Current Sensor
