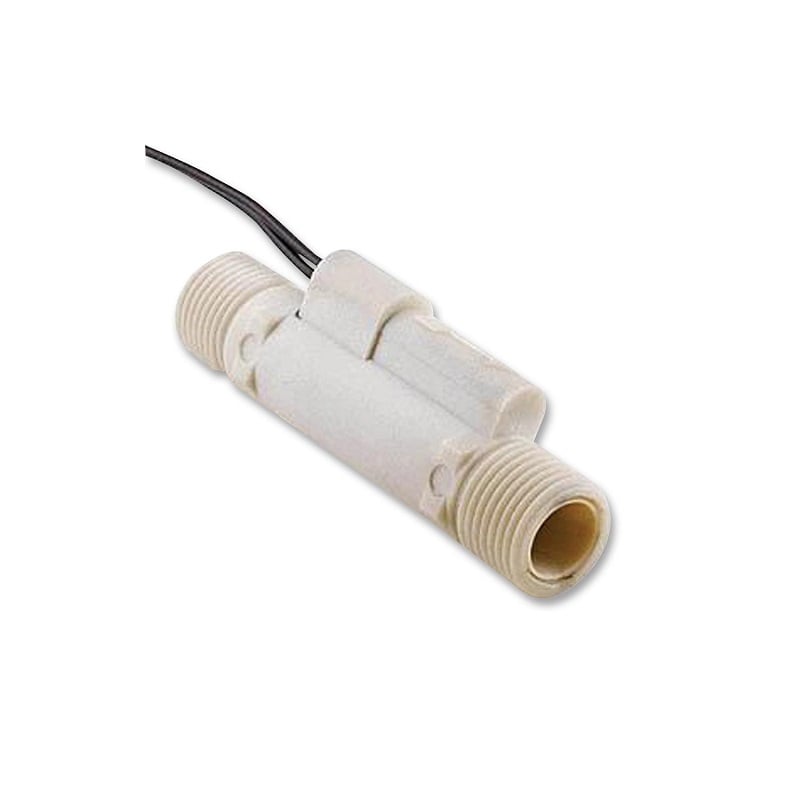

TE CONNECTIVITY Flow Switch, FCS Series, 0.1 l/min to 1.1 l/min, 9.525 mm Port Size, SPST-NO, 250 Vac, 1 A, PPS

The FCS-03 is a Flow Switch Sensor that offers design engineers reed switch reliability (file E125629). The design allows for sensing in line flow of liquid or air. 3/8-inch BSP male threaded fittings. Suitable for hot and cold potable water. Axis mounting. White PPS housing. Ruthenium contact.UL94-HB Flammability rating -30 to 100°C Operating temperature

Features:

1. Rugged high-grade Noryl
2.  Minimum pressure drop
3.  Operates from a small head of water
4.  Mount in any axis
5.  Suitable for water and air flow switching

Specifications:

1. Mounting: Any Axis
2. Housing Material: PPS
3. Housing Colour: White
4. Fitting: In Line
5. Contact Form: A
6. Contact Material: Ruthenium
7. Maximum Switching Volts (VAC): 250
8. Maximum Switching Volts (VDC): 200
9. Maximum Switching Current (Amp): 1
10. Maximum Power (Watt): 40
11. Operate Flow Rate (L/min): 0.6 +/- 0.5
12. Operate Temperature Range: -30ºC to +100ºC

Package Includes:

1 x TE CONNECTIVITY Flow Switch, FCS Series
