Single Board Computer
Explore our range of Single Board Computer products, designed to meet high standards and diverse needs. Perfect for enthusiasts and professionals alike.
- Features: Our single board computer are crafted with precision, ensuring durability and efficiency for various applications.
- Quality Assurance: Every product undergoes rigorous quality checks to meet industry standards, guaranteeing reliable performance.
- Delivery: We offer prompt and secure delivery to ensure that your single board computer reaches you on time, no matter where you are located.
Choose from our selection of single board computer and enhance your projects with top-notch components.
NVIDIA Jetson AGX Orin Developer Kit smallest and most powerful AI edge computer
Out of stock
| Product Name |
AI edge computer |
|---|---|
| AI Performance |
275 TOPS (INT8) |
| GPU |
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor Cores |
| Max GPU Freq |
1 GHz |
| CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Freq |
2 GHz |
| Memory |
32GB 256-bit LPDDR5 204.8 GB/s |
| Storage |
64GB eMMC 5.1 |
| CSI Camera |
Up to 6 cameras (16 via virtual channels*) 16 lanes MIPI CSI-2 D-PHY 1.2 (up to 40Gbps) ,C-PHY 1.1 (up to 164Gbps) |
| Video Encoder |
2x 4K60 ,4x 4K30 ,8x 1080p60 ,16x 1080p30 (H.265) |
| Video Decoder |
1x 8K30 ,3x 4K60 ,6x 4K30 ,12x 1080p60 ,24x 1080p30 (H.265) |
| UPHY |
2 x8 (or 1×8 + 2×4) ,1 x4 ,2 x1 (PCIe Gen4 ,Root Port & Endpoint) 3x USB 3.2 Single lane UFS |
| Networking |
1x GbE 4x 10GbE |
| Display |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| Other |
4x USB 2.0 4x UART ,3x SPI ,4x I2S ,8x I2C ,2x CAN ,DMIC & DSPK ,GPIOs |
| Power |
15W ,30W ,50W |
| Dimensions |
15W ,30W ,50W |
Jetson AGX Xavier H01 Kit with Jetson Xavier AGX processor, 32 TOPs, Wi-Fi, Aluminum case with cooling fan, pre-installed JetPack System
Out of stock
| Module |
Pre-installed Jetson AGX Xavier 32GB |
|---|---|
| Display |
1 x HDMI 2.0 (TYPE A) |
| Camera |
Esp.conn or USB Camera |
| Ethernet |
1 x Gigabit Ethernet Connector (10/100/1000) |
| M.2 Key |
E Wifi + Bluetooth |
| USB |
1 x USB 3.0; 2 x USB 3.0 Type A (Integrated USB 2.0); 1 x USB 2.0 Micro-AB |
| Misc. |
2 x SPI ,2 x I2C Link (+3.3V I/O); 1 x UART ,1x I2S (3.3V Level); 5 x GPIO |
| Fan |
1 x 12V PWM (default) or 1 x 5V PWM (optional) |
| POWER (VDC) |
: 9-19 |
| System |
Pre-installed Jetpack 4.6 OS |

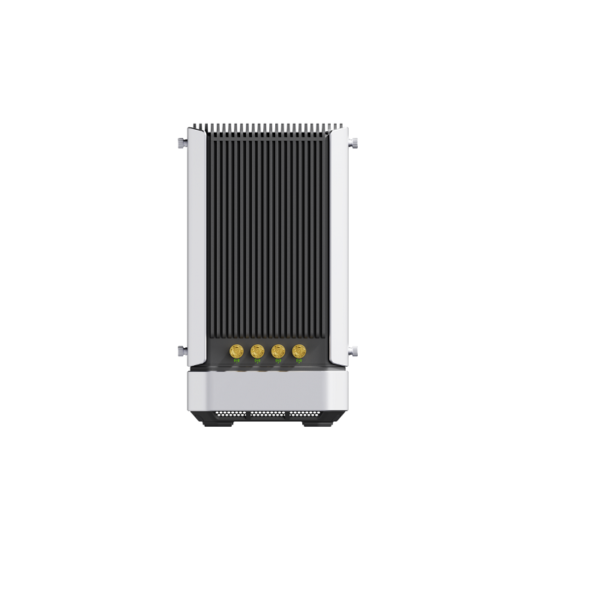

reServer J2032 Edge AI Device with Jetson Xavier NX 16GB, 256GB
Out of stock
| Module |
NVIDIA® Jetson Xavier™ NX 16GB |
|---|---|
| AI Perf |
21 TOPS |
| GPU |
NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores |
| CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 |
| DL Accelerator |
2x NVDLA Engines |
| Vision Accelerator |
7-Way VLIW Vision Processor |
| Memory |
8 GB 128-bit LPDDR4x @ 51.2GB/s |
| Storage |
16 GB eMMC 5.1 |
| Co-processor |
Raspberry Pi® RP2040 32-Bit Dual ARM Cortex-M0+ @ 133MHz |
NVIDIA Jetson AGX Xavier Module
Out of stock
| Product Name |
Jetson AGX Xavier Module |
|---|---|
| GPU |
512-core Volta GPU with Tensor Cores |
| CPU |
8-core ARM v8.2 64-bit CPU ,8MB L2 + 4MB L3 |
| Memory |
32GB 256-Bit LPDDR4x ,136.5GB/s |
| Storage |
32GB eMMC 5.1 |
| DL Accelerator |
(2x) NVDLA Engines* ,5 TFLOPS (FP16) ,10 TOPS (INT8) |
| Video Accelerator |
7-way VLIW Vision Processor |
| Video Encoder |
2x1000MP/sec ,4x 4K @ 60 (HEVC) ,8x 4K @ 30 (HEVC) ,16x 1080p @ 60 (HEVC) ,32x 1080p @ 30 (HEVC) |
| Video Decoder |
2x1500MP/sec ,2x 8K @ 30 (HEVC) ,6x 4K @ 60 (HEVC) ,12x 4K @ 30 (HEVC) ,26x 1080p @ 60 (HEVC) ,52x 1080p @ 30 (HEVC) ,30x 1080p @ 30 (H.264) |
| Size |
105 mm x 105 mm |

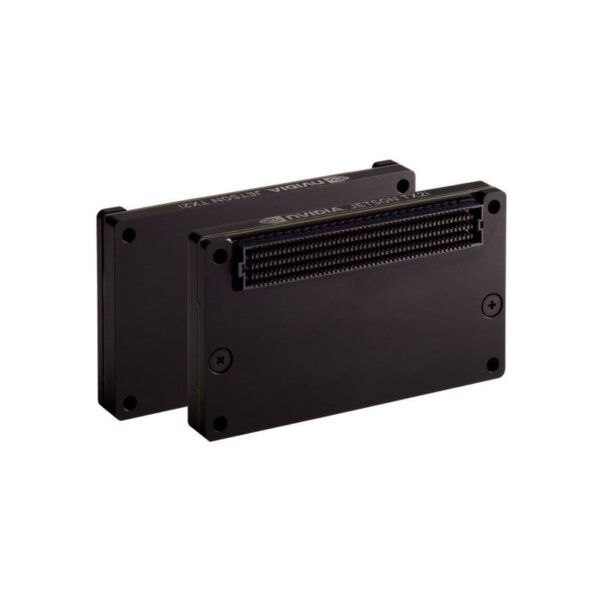

NVIDIA Jetson TX2i Module
Out of stock
| Product Name |
NVIDIA Jetson TX2i Module |
|---|---|
| Brand |
Seeed Studio |
| AI performance |
1.26 TFLOPs |
| GPU |
256-core NVIDIA Pascalâ„¢ GPU |
| CPU |
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM® Cortex®-A57 MP Core processor |
| Memory |
8 GB 128-bit LPDDR4 (ECC Support) 51.2GB/s |
| Storage |
32 GB eMMC 5.1 |
| Power |
10W / 20W |
| PCIE |
1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) |
| CSI Camera |
Up to 6 cameras (12 via virtual channels ,12 lanes MIPI CSI-2 ,D-PHY 1.2 (up to 30 Gbps) ,C-PHY 1.1 (up to 41Gbps) |
| Video Encoder |
500MP/sec ,1x 4K @ 60 (HEVC) ,3x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) |
| Video Decoder |
1000 MP/sec ,2x 4K @ 60 (HEVC) ,7x 1080p @ 60 (HEVC) ,20x 1080p @ 30 (HEVC) |
| Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 ,2 x4 DSI (1.5Gbps/lane) |
| Networking |
10/100/1000 BASE-T Ethernet |
| Mechanicals |
87 mm x 50 mm ,400-pin connector |
| Voltage Input |
9V – 19.6V DC |
| Module Power |
10W – 20W |
| Applications |
AI ,Compute ,Multimedia ,and Graphics libraries and APIs |
| Dimensions |
45 x 70mm |
Jetson SUB Mini PC-Blue with Jetson Xavier NX module, Aluminium case with cooling fan, 128GB SSD, WiFi, Antennas and pre-installed JetPack System
Out of stock
| Product Name |
Jetson SUB Mini PC-Blue with Jetson Xavier NX module |
|---|---|
| Module |
Jetson Xavier NX module |
| AI Performance |
21 TOPs(INT8) |
| OS |
JetPack 4.6 |
| CPU |
6-core 64-bit CPU ,NVIDIA Carmel ARMv8.2 |
| GPU |
384-core NVIDIA Volta GPU |
| Memory |
8 GB 128-bit LPDDR4x 59.7GB/s |
| Module Storage |
16 GB eMMC 5.1 |
| Power |
10 W ,15 W ,20W |
| PCIe |
1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4) ,total 144 GT/s* |
| CSI Camera |
Up to 6 cameras (24 via virtual channels) 12 lanes (3×4 or 6×2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Video Encoder |
2x 4K60 ,4x 4K30 ,10x 1080p60 ,22x 1080p30 (H.265) 2x 4K60 ,4x 4K30 ,10x 1080p60 ,20x 1080p30 (H.264) |
| Video Decoder |
2x 8K30 ,6x 4K60 ,12x 4K30 ,22x 1080p60 ,44x 1080p30 (H.265) 2x 4K60 ,6x 4K30 ,10x 1080p60 ,22x 1080p30 (H.264) |
| Networking |
10/100/1000 BASE-T Ethernet |
| Display |
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| Dimensions |
130mm x120mm x 50mm |
reComputer J4012-Edge AI Device with NVIDIA Jetson Orin NX 16GB module, 4xUSB 3.2, M.2 Key E & Key M Slot, Aluminum case, Pre-installed JetPack System on 128GB NVMe SSD
Out of stock
| Model |
reComputer J4012 |
|---|---|
| Variant |
Jetson Orin NX 16GB |
| AI Performance |
100 TOPS |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| GPU Max Frequency |
918 MHz |
| CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| CPU Max Frequency |
2 GHz |
| Memory |
16GB 128-bit LPDDR5 102.4GB/s |
| DL Accelerator |
2x NVDLA v2 |
| DLA Max Frequency |
614 MHz |
| Vision Accelerator |
1x PVA v2 |
| Video Encoder |
1x 4K60 (H.265) ,3x 4K30 (H.265) 6x 1080p60 (H.265) ,12x 1080p30 (H.265) |
| Video Decoder |
1x 8K30 (H.265) ,2x 4K60 (H.265) ,4x 4K30 (H.265) 9x 1080p60 (H.265) ,18x 1080p30 (H.265) |
| Display |
1* HDMI 2.1 |
| CSI Camera |
2* CSI （2-lane 15pin） |
| M.2 Key |
1* M.2 Key M 1* M.2 Key E |
| Fan |
1* 4 pin Fan Connector(5V PWM) |
| CAN |
1* CAN |
| Multifunctional Port |
1* 40-Pin Expansion header ,1* 12-Pin Control and UART header |
| RTC |
RTC 2-pin ,RTC socket |
| Operating Voltage |
9-19V |
| Power Supply |
DC 12V/5A(Barrel Jack 5.5/2.1mm) |
| Operating Temperature |
-10℃~60℃ |
| Dimension (mm) |
130 x 120 x 58.5 |

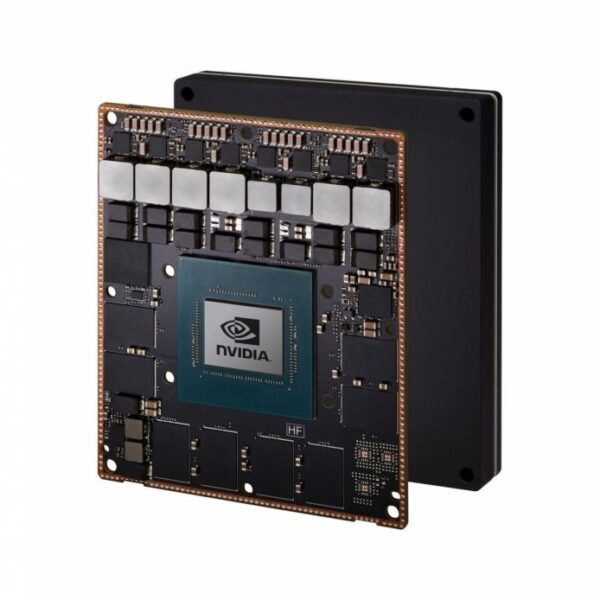

NVIDIA Jetson AGX Xavier 8GB Module
Out of stock
| Product Name |
Jetson AGX Xavier 8GB Module |
|---|---|
| GPU |
384-Core Volta GPU with 48 Tensor cores 5.5 TFLOPS (FP16) ,11.1 TOPS (INT8) |
| CPU |
6-core Carmel ARM v8.2 64-bit CPU ,6MB L2 + 4MB L3 |
| Memory |
8GB 256-bit LPDDR4x ,1333MHz – 85GB/s |
| Storage |
32GB eMMC 5.1 |
| DL Accelerator |
(2x) NVDLA Engines ,4.1 TFLOPS (FP16) ,8.2 TOPS (INT8) |
| Vision Accelerator |
7-way VLIW Vision Processor |
| Video Encoder |
2x464MP/sec ,2x 4K @ 30 (HEVC) ,6x 1080p @ 60 (HEVC) ,14x 1080p @ 30 (HEVC) |
| Video Decoder |
2x690MP/sec ,2x 4K @ 60 (HEVC) ,4x 4K @ 30 (HEVC) ,12x 1080p @ 60 (HEVC) ,24x 1080p @ 30 (HEVC) ,16x 1080p @ 30 (H.264) |
| Camera |
16x CSI-2 D-PHY 1.2 (Up to 40 Gbps) ,C-PHY 1.1 (Up to 64 GB/s) |
| UPHY |
3x USB 3.1 ,4x USB 2.0 ,1 x8 or 1 x4 or 1 x2 or 2 x1 PCIe (Gen3) |
| Display |
Three multi-mode DP 1.2/eDP 1.4/HDMI 2.0 |
| Other |
UART ,SPI ,CAN ,I2C ,I2S ,DMIC ,GPIOs |
| Connectivity |
10/100/1000 RGMII |
| Size |
100 mm x 87 mm |

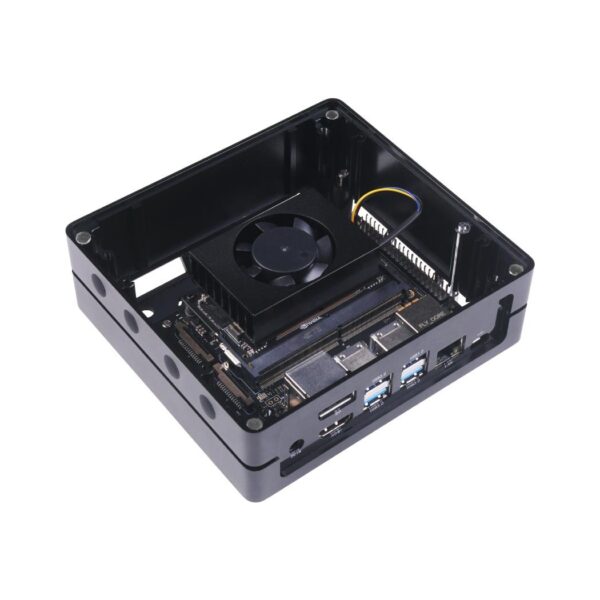

reComputer J2012 Edge AI Device with Jetson Xavier NX 16 GB module, Aluminium case, pre-installed JetPack System
Out of stock
| CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
|---|---|
| GPU |
384-core NVIDIA Voltaâ„¢ GPU with 48 Tensor Cores |
| Storage |
16 GB eMMC 5.1 Flash |
| Memory |
16 GB 128-bit LPDDR4x 59.7GB/s |
| Display |
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| Camera |
14 lanes (3×4 or 6×2) MIPI CSI-2 ,D-PHY 1.2 (up to 30 Gbps) ,Up to 6 cameras (24 via virtual channels) |
| Power |
10 W ,15 W ,20 W |
| AI Performance |
21 TOPS |
| DL Accelerator |
2x NVDLA Engines |
| Vision Accelerator |
7-Way VLIW Vision Processor |
| PCIe |
1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4) ,total 144 GT/s* |
| Video encoder |
2x 4K60 ,4x 4K30 ,10x 1080p60 ,20x 1080p30 (H.264) ,2x 4K60 ,4x 4K30 ,10x 1080p60 ,22x 1080p30 (H.265) |
| Video decoder |
2x 4K60 ,6x 4K30 ,10x 1080p60 ,22x 1080p30 (H.264) ,2x 8K30 ,6x 4K60 ,12x 4K30 ,22x 1080p60 ,44x 1080p30 (H.265) |
| Mechanical |
260-pin SO-DIMM connector 69.6 mm x 45 mm |
| Networking |
10/100/1000 BASE-T Ethernet |
| Length (mm) |
103 |
| Width (mm) |
90.5 |
| Height (mm) |
31 |
| Weight (g) |
150 |
LattePanda Alpha 864s (Win10 Pro activated) with Case & Streaming Cable & Touch Display
Out of stock
reComputer J2021 Edge AI Device with Jetson Xavier NX 8GB module, 4xUSB, M.2 Key E & Key M Slot, Aluminum case, Pre-installed JetPack System
Out of stock
| CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
|---|---|
| GPU |
384-core NVIDIA Voltaâ„¢ GPU with 48 Tensor Cores |
| Storage |
16 GB eMMC 5.1 Flash |
| Memory |
8 GB 128-bit LPDDR4x 59.7GB/s |
| Display |
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| PCIe |
1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4) ,total 144 GT/s* |
| Camera |
14 lanes (3×4 or 6×2) MIPI CSI-2 ,D-PHY 1.2 (up to 30 Gbps) ,Up to 6 cameras (24 via virtual channels) |
| Power |
10 W ,15 W ,20 W |
| Networking |
10/100/1000 BASE-T Ethernet |
| Video encoder |
2x 4K60 ,4x 4K30 ,10x 1080p60 ,20x 1080p30 (H.264) ,2x 4K60 ,4x 4K30 ,10x 1080p60 ,22x 1080p30 (H.265) |
| DL Accelerator |
2x NVDLA Engines |
| Vision Accelerator |
7-Way VLIW Vision Processor |
| Video decoder |
2x 4K60 ,6x 4K30 ,10x 1080p60 ,22x 1080p30 (H.264) ,2x 8K30 ,6x 4K60 ,12x 4K30 ,22x 1080p60 ,44x 1080p30 (H.265) |
| Mechanical |
260-pin SO-DIMM connector 69.6 mm x 45 mm |
| Length (mm) |
103 |
| Width (mm) |
90.5 |
| Height (mm) |
31 |
| Weight (g) |
0.35 |
LattePanda Alpha 864s (Win10 Pro activated) – Tiny Ultimate Windows / Linux Device
Out of stock
