Single Board Computer
Explore our range of Single Board Computer products, designed to meet high standards and diverse needs. Perfect for enthusiasts and professionals alike.
- Features: Our single board computer are crafted with precision, ensuring durability and efficiency for various applications.
- Quality Assurance: Every product undergoes rigorous quality checks to meet industry standards, guaranteeing reliable performance.
- Delivery: We offer prompt and secure delivery to ensure that your single board computer reaches you on time, no matter where you are located.
Choose from our selection of single board computer and enhance your projects with top-notch components.
CY8CKIT-PSOC-024LP, PSOC Family Processor Modules with LCD Display Development Kit
Out of stock
Wio RP2040 mini Dev Board
Out of stock
Waveshare Aluminum Case (Type F) for the Jetson Nano Development Kit
Out of stock

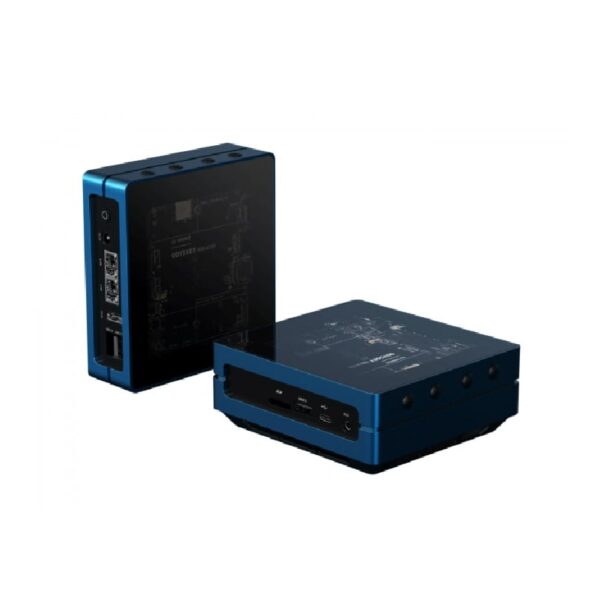

Seeed studio re_computer case: BeagleBone and Jetson Nano/Xavier NX
Out of stock
Espruino Pico (unpinned)
Out of stock

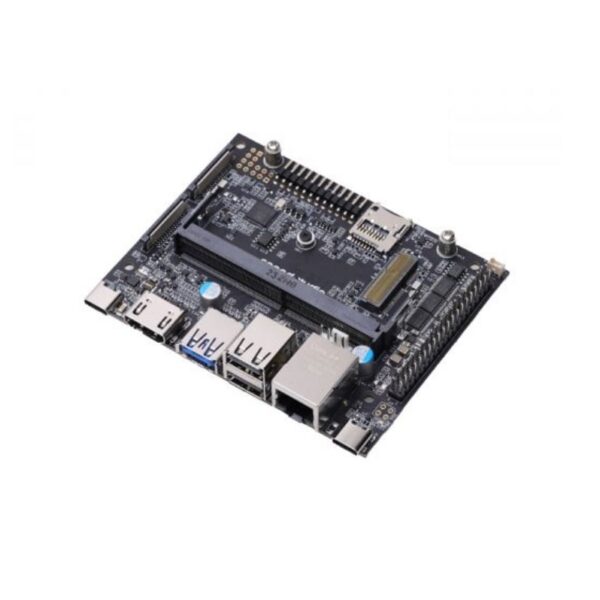

reComputer J101 Dev Kit Carrier Board for Jetson Nano, With micro SD card slot
Out of stock
ODROID-XU4Q Single Board Computer
Out of stock
| Processor |
Samsung Exynos5422 ARM® Cortex™-A15 Quad 2.0GHz/Cortex™-A7 Quad 1.4GHz |
|---|---|
| Memory |
2Gbyte LPDDR3 RAM PoP (750Mhz ,12GB/s memory bandwidth ,2x32bit bus) |
| 3D Accelerator |
Mali-T628 MP6 OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 and OpenCL 1.2 Full profile |
| Audio |
HDMI Digital audio output. Optional USB sound card |
| USB3.0 Host |
SuperSpeed USB standard A-type connector x 2 port |
| USB2.0 Host |
HighSpeed USB standard A type connector x 1 port |
| Display |
HDMI 1.4a with a Type-A connector |
| Storage (Option) |
eMMC module socket : eMMC 5.0 Flash Storage (up to 64GByte) |
| MicroSD Card Slot |
up to 128GByte |
| Fast Ethernet LAN |
10/100/1000Mbps Ethernet with RJ-45 Jack ( Auto-MDIX support) |
| WiFi (Option) |
USB IEEE 802.11 ac/b/g/n 1T1R WLAN with Antenna (External USB adapter) |
| HDD/SSD SATA interface (Optional) |
SuperSpeed USB (USB 3.0) to Serial ATA3 adapter for 2.5″/3.5″ HDD and SSD storage |
| Power Input |
4.8Volt~5.2Volt (5V/4A Power supply is recommended) |
| System Software |
Ubuntu 16.04 + OpenGL ES + OpenCL on Linux Kernel 4.14 LTS Android 4.4.2 on Kernel LTS 3.10 Android 7.1 is available as a community driven OS development. Full source code is accessible via our Github. |
| Dimensions (L x W x H) mm |
83 x 58 x 20 |
| Weight (gm) |
38 (without cooler approx.) |
BeagleBone Black Industrial AM3358 ARM Cortex-A8, 512MB RAM, 4GB eMMC, USB Interface
Out of stock

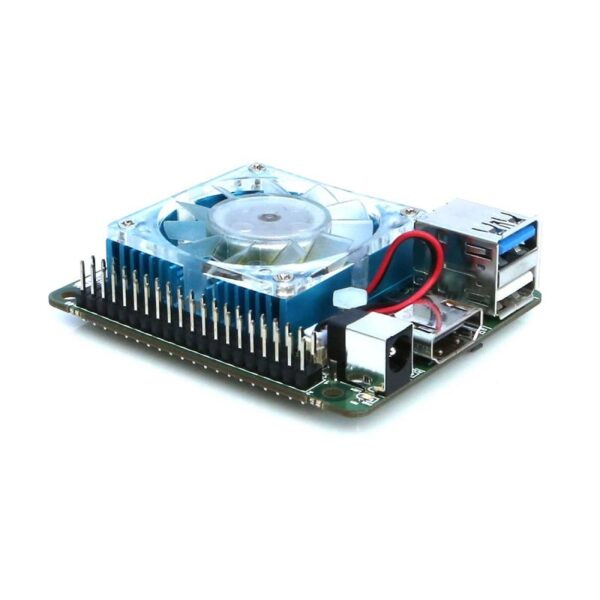

ODROID-N2L with 2GByte RAM
Out of stock

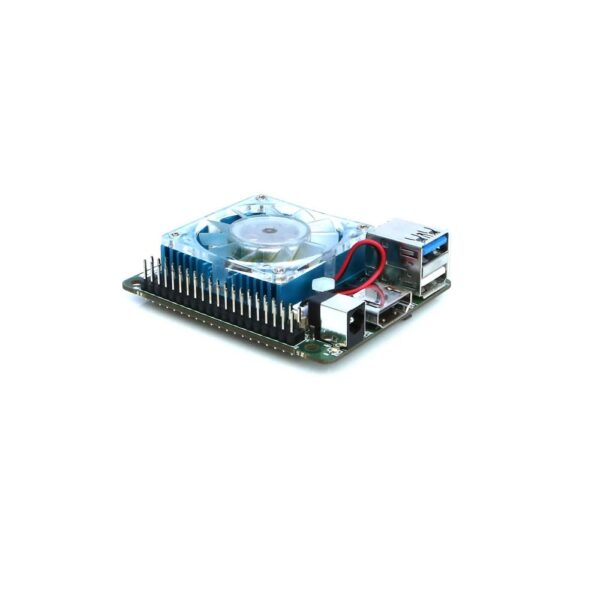

ODROID-N2L with 4GByte RAM
Out of stock
| Processor |
Amlogic S922X Processor (12nm) Quad-core Cortex-A73(2.2Ghz) and Dual-core Cortex-A53(2Ghz) ARMv8-A architecture with Neon and Crypto extensions Mali-G52 GPU with 6 x Execution Engines (800Mhz) |
|---|---|
| Power |
1 x DC jack : outer (negative) diameter 5.5mm ,inner(positive) diameter 2.1mm 7.5V ~ 16V (Recommend range of input) – DC 12V/2A power adapter is recommendedPower consumption: – IDLE : ≃ 1.5W (Performance governor) ,1.3W(Conservative governor) – CPU Stress (Passive Heat-Sink) : ≃ 5.4W (@1908/2208MHz ,Stock) ,5.8W (@2016/2400MHz ,Overclock) – CPU Stress (Active Cooling-FAN) : ≃ 6.1W (@1908/2208MHz ,Stock) ,6.4W (@2016/2400MHz ,Overclock) – Power-Off : ≃ 0.2W |
| Memory |
LPDDR4 4GiB or 2GiB with 32-bit bus width Data rate: 3216 MT/s 1.1Volt low power design |
| Storage |
1 x eMMC connector (8G ,16G ,32G ,64G and 128G are available) 1 x microSD slot (DS/HS modes up to UHS-I SDR104) |
| Networking |
Optional WiFi or Ethernet USB adapters |
| Video |
1 x HDMI 2.0 (up to 4K@60Hz with HDR ,CEC ,EDID) – Although the +5V Power pin is able to supply a minimum of 300mA ,according to HDMI 2.0 specification ,a sink shall not draw more than 50mA of current from the +5V Power pin. |
| Audio |
1 x HDMI digital output |
| External I/O |
1 x USB 3.0 Host port 1 x USB 2.0 Host port 1 x Debug serial console (UART) 1 x MIPI DSI 4Lane (TBD) 1 x Peripheral Expansion Header (40-pin ,2.54mm pitch) – 2 x DC 5V ,2 x DC 3.3V ,1 x DC 1.8V ,8 x GND – 1 x SPI – 1 x UART – 2 x I2C – 25 x GPIO (Max) – 2 x ADC input (10bit ,1.8V Max) – All of I/O signal level is 3.3 Volt except for ADC input at max 1.8 Volt |
| Other features |
Built with a large passive heatsink System LEDS Indicators: – Red (PWR) – Solid light when DC power is connected – Blue (ALIVE) – Flashing like heartbeat while Kernel is running. Active Cooling Fan Connector (5V 2-pin) – Connector (2-pin ,1.25mm pitch) |
| Dimensions |
Dimensions including Fan heatsink: 69mm x 56mm x 22mm Dimensions including Tall heatsink: 69mm x 56mm x 32mm |
| Weight (gm) |
66g including a Tall heatsink |

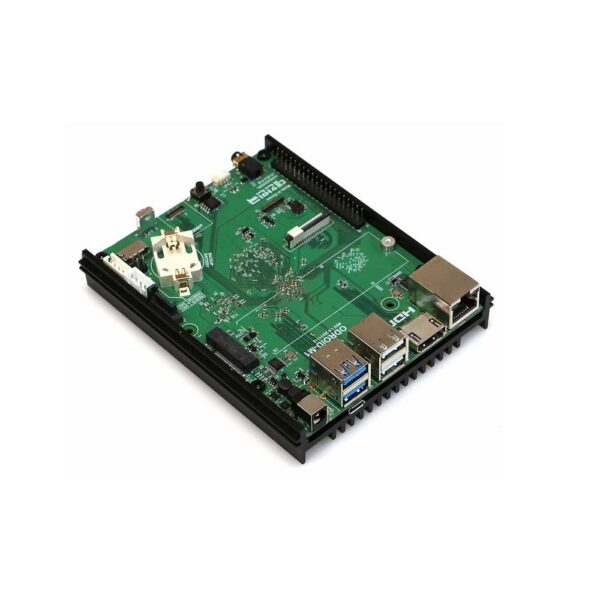

ODROID-M1 with 4GByte RAM
Out of stock
| POWER |
1 x DC jack : outer (negative) diameter 5.5mm ,inner (positive) diameter 2.1mm DC input : 7.5V ~ 15.5V – DC 12V/2A power adapter is recommended – IDLE : ≃ 1.25W – CPU Stress : ≃ 4.44W (Performance governor) – Power Off : ≃ 0W |
|---|---|
| FORM FACTOR |
Board Dimensions: 90mm x 122mm x 16mm Heatsink Dimensions: 100mm x 123mm x 19mm Weight: 253 g including heatsink |
| PROCESSOR |
Rockchip RK3568 Processor L1 instruction cache: 32 KB ,4-way set associative (128 sets) ,64 byte lines ,shared by 1 processor L1 data cache: 32 KB ,4-way set associative (128 sets) ,64 byte lines ,shared by 1 processor L3 data cache: 512KB ,16-way set associative (512 sets) ,64 byte lines ,shared by 4 processorsQuad-Core Cortex-A55 (1.992GHz) ARMv8-A architecture with Neon and Crypto extensions Mali-G52 MP2 GPU with 4 x Execution Engines (650Mhz) |
| NPU |
0.8Tops@INT8 ,integrated high-performance AI accelerator RKNN NPU Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet |
| MEMORY |
4 or 8GiB LPDDR4 with 32-bit bus width Data rate: 3120 MT/s ,up to 1 ,560MHz |
| STORAGE |
1 x eMMC slot 1 x Micro SD slot (DS/HS mode up to UHS-I SDR104) 1 x NVME M.2 SSD (PCIe 3.0 x 2) 1 x SATA3.0 |
| NETWORKING |
1 x GbE LAN ports (RJ45 ,supports 10/100/1000 Mbps) – Realtek RTL8211F (Ethernet transceiver) – LED indicators * Green LED: Flashing by data traffics at 100Mbps connection * Amber LED: Flashing by data traffics at 1000Mbps connection |
| VIDEO |
1 x HDMI 2.0 (up to 4K@60Hz with HDR ,EDID) 1 x MIPI-DSI (works with 800 x 1280 LCD) |
| AUDIO |
1 x 3.5mm phone jack 1 x mono speaker output 1 x HDMI sound |
| EXTERNAL I/O |
2 x USB 2.0 host port 2 x USB 3.0 host port (or 1 x USB 3.0 host + 1 x USB 2.0 OTG port) 1 x Debug serial console (UART ,1.5Mbps N81) 1 x SATA Connector 1 x MIPI-CSI Camera Interface (15 pin) 1 x MIPI-DSI LCD Interface (31 pin) 1 x 40pin GPIO header |
