Single Board Computer
Arducam 8MP Synchronized Stereo Camera Bundle Kit for Jetson Nano
Out of stock
reComputer J202 – Dev Kit carrier Board for Jetson Nano/Xavier
Out of stock
NVIDIA Jetson Nano Module
Out of stock
| Product Name |
NVIDIA Jetson Nano Module |
|---|---|
| GPU |
NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores |
| CPU |
Quad-core ARM Cortex-A57 MP Core processor |
| AI Performance |
0.5 TFLOPS (FP16) |
| Memory |
4 GB 64-bit LPDDR4 ,1600MHz 25.6 GB/s |
| Storage |
16 GB eMMC 5.1 |
| Video Encoder |
250MP/sec(1x 4K @ 30 (HEVC) ,2x 1080p @ 60 (HEVC) ,4x 1080p @ 30 (HEVC) ,4x 720p @ 60 (HEVC) ,9x 720p @ 30(HEVC)) |
| Video Decoder |
500MP/sec(1x 4K @ 60 (HEVC) ,2x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) ,8x 1080p @ 30 (HEVC) ,9x 720p @ 60 (HEVC)) |
| Camera |
12 lanes (3×4 or 4×2) MIPI CSI-2 D-PHY 1.1 (1.5 Gb/s per pair) |
| Connectivity |
Gigabit Ethernet ,M.2 Key E |
| Display |
HDMI 2.0 and eDP 1.4 |
| USB |
4x USB 3.0 ,USB 2.0 Micro-B |
| Other |
GPIO ,I2C ,I2S ,SPI ,UART |
| Mechanical |
69.6 mm x 45 mm ,260-pin edge connector |
| Power Consumptions |
5-10W |
| Dimensions |
45 x 70mm |
LattePanda V1 – A Powerful Windows 10 Mini PC 2GB/32GB
Out of stock
Jetson Mate – NVIDIA Jetson Nano/NX Carrier Board for GPU Cluster and Server
Out of stock
Chipsee EPC-CM4-70 Industrial embedded Raspberry Pi Compute Module 4 compatible 7 Inch PC
Out of stock
ODROID-H3 Single Board Computer
Out of stock
| Model |
ODROID-H3 |
|---|---|
| Power |
DC jack : outer (negative) diameter 5.5mm ,inner(positive) diameter 2.1mm DC 14V ~ 20V (up to 60W) DC 15V/4A power adapter is recommended if you don’t use two 3.5“ HDDs DC 19V/7A power adapter is recommended if you two 3.5” HDDs together Power consumption: IDLE: ≃1..9W CPU Stress: ≃15W CPU+GPU Stress: ≃18W Power-off: ≃0.25W Suspend: ≃0.6W |
| Processor |
Intel Celeron N5105 Processor (10nm ,Quad-Core ,TDP 10W) H3+(N6005) : up to 3.3Ghz 4MB L2 Cache Intel UHD Graphics (24/32 EU up to 900MHz) |
| Memory |
2 x DDR4 1.2V SO-DIMM slots Dual Channel ,up to 2933 MT/s (DDR4-PC23400) Max memory capacity 64GB DDR3/DDR5 is not supported |
| Storage |
1 x eMMC connector (bootable and selectable on BIOS) Various eMMC modules can be purchased at the Hardkernel store 2 x SATA3 6Gbps 1 x M.2 slot (PCIe 3.0 x 4 ,supports NGFF-2280 cards) M.2 SATA SSD is not supported |
| Networking |
2 x GbE LAN ports (RJ45 ,supports 10/100/1000/2500 Mbps) Realtek RTL8125B Supports Wake-On-Lan LED indicators (Green: Link ,Amber: Traffic) |
| Audio |
1 x Audio out (3.5mm jack) 1 x Audio in (3.5mm jack) 1 x SPDIF out (ALC1200 ,HDA codec) * HDMI & DP have audio output too. |
| Video |
1 x DisplayPort 1.2 (up to 4K@60Hz) 1 x HDMI 2.0 (up to 4K@60Hz) Dual simultaneous display support |
| External I/O |
2 x USB 3.0 Host ports 2 x USB 2.0 Host ports 1 x Peripheral Expansion Header (24-pin ,2.54mm pitch) 1 x DC 5V ,1 x DC 3.3V ,5 x GND 1 x UART (TXD/RXD/RTS/CTS) 2 x I2C (SCL/SDA) 1 x External Power Button HDMI CEC ,5VA+ 3 x USB 2.0 All 3.3V I/O signal level |
| Other features |
Passive Heatsink BIOS Backup Battery Maintains system time and BIOS settings Power Button Reset Button System LEDs Indicators: – Red (PWR) – Solid light when DC power is supplied – Blue (left ,SLEEP) – turns off only when the system enters into suspend mode – Blue (right ,PMIC) – turns on only when the major power rails are working – Amber (SATA) – Flashes when SATA data transfers – Green (NVMe) – Flashes when NVMe data transfers Active Cooling Fan Connector (12V 4-pin ,PWM input + TACHO output) – Active Cooling Fan is optional – Connector (4-pin ,2.54mm pitch) |
| Form Factor |
110 x 110 x 47 mm Approx. |
DFRobot LattePanda V1 – A Powerful Windows 10 Mini PC 4GB/64GB (Unactivated)
Out of stock
Chipsee PPC-CM4-70 compatible Industrial embedded Raspberry Pi 7 Inch PC with Case for Compute Module 4
Out of stock

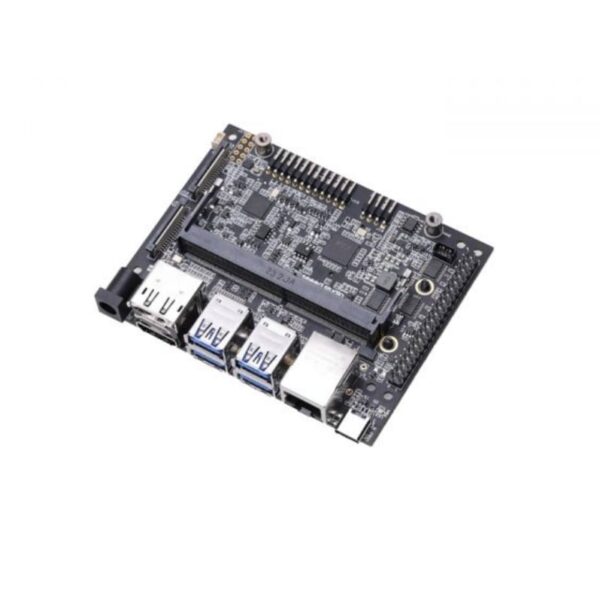

A203 (Version 2) Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact size and rich ports (Wi-fi, Bluetooth, SSD supported etc.)
Out of stock
| Product Name |
A203 (Version 2) Carrier Board |
|---|---|
| Brand |
Seeed Studio |
| module Compatibility |
NVIDIA® Jetson™ Nano/Xavier NX/TX2 NX |
| Display |
1*HDMI |
| Camera |
1 x CSI |
| Ethernet |
1x Gigabit Ethernet (10/100/1000M) |
| M.2 KEY M |
1 x M.2 Key M Slot NVME 2242 |
| M.2 KEY E |
1 x M.2 Key E Slot 2230 |
| USB |
2 x USB 3.0 Type-A; 1* USB Micro B; 1*USB 3.0 20 pin ZIF |
| Multifunctional port |
1 x 14 pin; 1 x 40 pin |
| Fan |
1 x FAN(5V PWM) |
| SD Card |
1 x SD card slot |
| RTC |
1 x RTC 2-pin Connector |
| Power |
DC 19V |
| PCB Size (mm x mm) |
87mm x 52mm |
| Dimension |
87mm x 52mm |
Chipsee PPC-A7-70HB-C Industrial embedded 7 Inch High Brightness PC with Linux OS
Out of stock
Chipsee PPC-A7-70HB-C Industrial embeded 7 Inch High Brightness PC
Out of stock
