Single Board Computer
reComputer J1010 Edge AI Device with Jetson Nano module, M.2 Key E Slot, Type-C connectors, Aluminium case, pre-installed JetPack System
Out of stock
| GPU |
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16) |
|---|---|
| Display |
HDMI 2.0 or DP1.2 ,eDP 1.4 ,DSI (1 x2) 2 simultaneous |
| Camera |
12 lanes (3×4 or 4×2) MIPI CSI-2 DPHY 1.1 (18 Gbps) |
| I/O Ports |
1x SDIO / 2x SPI / 4x I2C / 2x I2S / GPIOs -> I2C ,I2S |
| Connectivity |
(M.2 Key M)10/100/1000 BASE-T Ethernet |
| Video encoder |
1x 4K @ 30 (HEVC) ,250 MP/sec ,2x 1080p @ 60 (HEVC) ,4x 1080p @ 30 (HEVC) |
| Video decoder |
2x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) ,500 MP/sec |
| UPHY |
1 x1/2/4 PCIE ,1x USB 3.0 ,3x USB 2.0 |
| Mechanical |
260-pin edge connector |

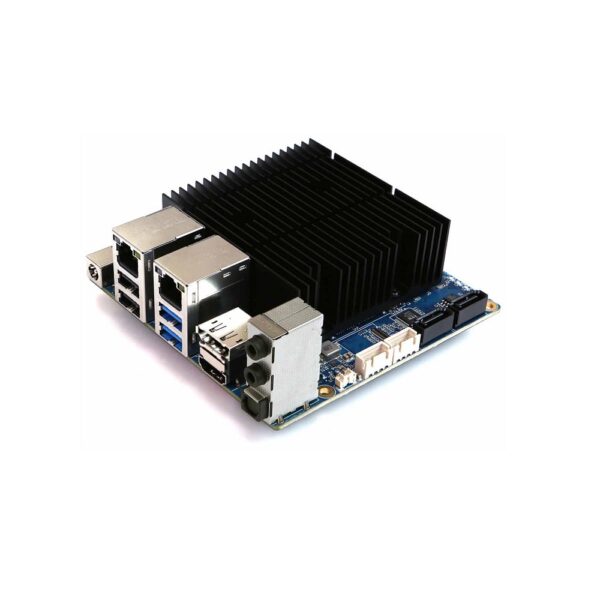

ODROID-H3+ Single Board Computer
Out of stock
| Processor |
Intel Celeron N6005 Processor (10nm ,Quad-Core ,TDP 10W) H3+(N6005) : up to 3.3Ghz 4MB L2 Cache Intel UHD Graphics (24/32 EU up to 900MHz) |
|---|---|
| Networking |
2 x GbE LAN ports (RJ45 ,supports 10/100/1000/2500 Mbps) Realtek RTL8125B Supports Wake-On-Lan LED indicators (Green: Link ,Amber: Traffic |
| Memory |
2 x DDR4 1.2V SO-DIMM slots Dual Channel ,up to 2933 MT/s (DDR4-PC23400) Max memory capacity 64GB DDR3/DDR5 are not supported |
| Storage |
1 x eMMC connector (bootable and selectable on BIOS) Various eMMC modules can be purchased at the Hardkernel store 2 x SATA3 6Gbps ( SATA Port-Multiplier is NOT compatible ) 1 x M.2 slot (PCIe 3.0 x 4 ,supports NGFF-2280 cards) M.2 SATA SSD is not supported |
| Video |
1 x DisplayPort 1.2 (up to 4K@60Hz) 1 x HDMI 2.0 (up to 4K@60Hz) Dual simultaneous display support |
| Audio |
1 x Audio out (3.5mm jack) 1 x Audio in (3.5mm jack) 1 x SPDIF out (ALC1200 ,HDA codec) * HDMI & DP have audio output too. |
| External I/O |
2 x USB 3.0 Host ports 2 x USB 2.0 Host ports 1 x Peripheral Expansion Header (24-pin ,2.54mm pitch) – 1 x DC 5V ,1 x DC 3.3V ,5 x GND – 1 x UART (TXD/RXD/RTS/CTS) – 2 x I2C (SCL/SDA) – 1 x External Power Button – HDMI CEC ,5VA+ – 3 x USB 2.0 – All 3.3V I/O signal level |
| Other features |
Passive Heatsink BIOS Backup Battery – Maintains system time and BIOS settings Power Button Reset Button System LEDS Indicators: – Red (PWR) – Solid light when DC power is supplied – Blue (left ,SLEEP) – turns off only when the system enters into suspend mode – Blue (right ,PMIC) – turns on only when the major power rails are working – Amber (SATA) – Flashes when SATA data transfers – Green (NVMe) – Flashes when NVMe data transfers Active Cooling Fan Connector (12V 4-pin ,PWM input + TACHO output) – Active Cooling Fan is optional – Connector (4-pin ,2.54mm pitch) |
| Power |
DC jack : outer (ground) diameter 5.5mm ,inner(positive) diameter 2.1mm DC 14V ~ 20V (up to 60W) – DC 15V/4A power adapter is recommended if you don’t use two 3.5“ HDDs – DC 19V/7A power adapter is recommended if you two 3.5” HDDs together Power consumption: – IDLE : ≃1..9W – CPU Stress : ≃15W – CPU+GPU Stress : ≃18W – Power-off : ≃0.25W – Suspend : ≃0.6W |
| Form Factor |
110mm x 110mm x 47mm Approx. |
A206 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact function design and same size of NVIDIA Jetson Xavier™ NX carrier board
Out of stock
| Brand |
Seeed Studio |
|---|---|
| Product Name |
A206 carrier board |
| Module Compatibility |
– Jetson Nano – Jetson Xavier NX – Jetson TX2 NX |
| Display |
2x HDMI Right Angle Vertical Connector |
| CSI Camera |
2x CSI (15 pos ,1mm pitch ,MIPI CSI-2 ) |
| Ethernet |
1x Gigabit Ethernet (10 \100 \1000M) |
| M.2 Key M |
1x M.2 Key M (75-pin) NVME 2280 |
| M.2 Key E |
1x M.2 Key E (75-pin) |
| USB |
4x USB 3.0 Type-A (Integrated USB 2.0) + 1x USB Micro B ,RA Female (Not support power input) |
| Multifuncation Port |
1x 2.0 Pitch 40-Pin |
| FAN |
1x FAN(5V PWM) |
| RTC |
1x RTC Back-up Coin Cell Socket (CR1225)(Battery not included) |
| So-DIMM |
260 Pin |
| Power |
DC 19V |
| Battery |
1x 3V backup battery |
| CAN |
1x CAN Bus Header (1×4 ,2.54mm pitch ,RA) |
| Button Header |
1x Button Header (1×12 ,2.54mm pitch ,RA) |
| SPI Bus |
2x SPI Bus(+3.3V Level) |
| Dimensions |
100mm*80mm |
Chipsee EPC-A72-70-C Industrial embedded 7 Inch PC with Android OS
Out of stock
Chipsee EPC-A72-70-C Industrial embedded 7 Inch PC
Out of stock
Chipsee PPC-CM4-101 Industrial embedded Raspberry Pi Compute Module 4 compatible10 Inch PC with Metal Case
Out of stock
reComputer J1020 Edge AI Device with Jetson Nano module, Aluminium case, pre-installed JetPack System
Out of stock
LattePanda Delta 432 – Tiny Ultimate Windows / Linux Device 4GB/32GB
Out of stock
LattePanda V1- 4GB/64GB with Enterprise License
Out of stock
LattePanda Delta 432(Win10 Pro Activated) – Windows / Linux Device 4GB/32GB
Out of stock
LattePanda Delta 432 with Case & Streaming Cable & Touch Display
Out of stock
NVIDIA Jetson TX2 4GB Module
Out of stock
| Product Name |
Jetson TX2 4GB Module |
|---|---|
| AI Performance |
1.33 TFLOPs |
| GPU |
256-core NVIDIA Pascal™ GPU |
| CPU |
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM Cortex-A57 MP Core processor |
| Memory |
4 GB 128-bit LPDDR4 ,51.2GB/s |
| Storage |
16 GB eMMC 5.1 |
| Power |
7.5W / 15W |
| Power Consumptions |
5-10W |
| PCIE |
1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) |
| CSI Camera |
Up to 6 cameras (12 via virtual channels ,12 lanes MIPI CSI-2 ,D-PHY 1.2 (up to 30 Gbps) ,C-PHY 1.1 (up to 41Gbps) |
| Video Encoder |
500MP/sec ,1x 4K @ 60 (HEVC) ,3x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) |
| Video Decoder |
1000 MP/sec ,2x 4K @ 60 (HEVC) ,7x 1080p @ 60 (HEVC) ,20x 1080p @ 30 (HEVC) |
| Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 ,2 x4 DSI (1.5Gbps/lane) |
| Networking |
10/100/1000 BASE-T Ethernet |
| Mechanical |
87 mm x 50 mm ,400-pin connector |
| Dimensions |
45 x 70mm |
