Single Board Computer
LattePanda Delta 432 (Win10 Pro Activated) with Case & Streaming Cable & Touch Display
Out of stock
LattePanda Delta 432 with Case & Streaming Cable & Touch Display
Out of stock
LattePanda Delta 432(Win10 Pro Activated) – Windows / Linux Device 4GB/32GB
Out of stock
LattePanda V1 – A Powerful Windows 10 Mini PC 2GB/32GB
Out of stock
LattePanda V1- 4GB/64GB with Enterprise License
Out of stock
NVIDIA Jetson AGX Orin Developer Kit smallest and most powerful AI edge computer
Out of stock
| Product Name |
AI edge computer |
|---|---|
| AI Performance |
275 TOPS (INT8) |
| GPU |
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor Cores |
| Max GPU Freq |
1 GHz |
| CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Freq |
2 GHz |
| Memory |
32GB 256-bit LPDDR5 204.8 GB/s |
| Storage |
64GB eMMC 5.1 |
| CSI Camera |
Up to 6 cameras (16 via virtual channels*) 16 lanes MIPI CSI-2 D-PHY 1.2 (up to 40Gbps) ,C-PHY 1.1 (up to 164Gbps) |
| Video Encoder |
2x 4K60 ,4x 4K30 ,8x 1080p60 ,16x 1080p30 (H.265) |
| Video Decoder |
1x 8K30 ,3x 4K60 ,6x 4K30 ,12x 1080p60 ,24x 1080p30 (H.265) |
| UPHY |
2 x8 (or 1×8 + 2×4) ,1 x4 ,2 x1 (PCIe Gen4 ,Root Port & Endpoint) 3x USB 3.2 Single lane UFS |
| Networking |
1x GbE 4x 10GbE |
| Display |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| Other |
4x USB 2.0 4x UART ,3x SPI ,4x I2S ,8x I2C ,2x CAN ,DMIC & DSPK ,GPIOs |
| Power |
15W ,30W ,50W |
| Dimensions |
15W ,30W ,50W |
NVIDIA Jetson AGX Xavier 8GB Module
Out of stock
| Product Name |
Jetson AGX Xavier 8GB Module |
|---|---|
| GPU |
384-Core Volta GPU with 48 Tensor cores 5.5 TFLOPS (FP16) ,11.1 TOPS (INT8) |
| CPU |
6-core Carmel ARM v8.2 64-bit CPU ,6MB L2 + 4MB L3 |
| Memory |
8GB 256-bit LPDDR4x ,1333MHz – 85GB/s |
| Storage |
32GB eMMC 5.1 |
| DL Accelerator |
(2x) NVDLA Engines ,4.1 TFLOPS (FP16) ,8.2 TOPS (INT8) |
| Vision Accelerator |
7-way VLIW Vision Processor |
| Video Encoder |
2x464MP/sec ,2x 4K @ 30 (HEVC) ,6x 1080p @ 60 (HEVC) ,14x 1080p @ 30 (HEVC) |
| Video Decoder |
2x690MP/sec ,2x 4K @ 60 (HEVC) ,4x 4K @ 30 (HEVC) ,12x 1080p @ 60 (HEVC) ,24x 1080p @ 30 (HEVC) ,16x 1080p @ 30 (H.264) |
| Camera |
16x CSI-2 D-PHY 1.2 (Up to 40 Gbps) ,C-PHY 1.1 (Up to 64 GB/s) |
| UPHY |
3x USB 3.1 ,4x USB 2.0 ,1 x8 or 1 x4 or 1 x2 or 2 x1 PCIe (Gen3) |
| Display |
Three multi-mode DP 1.2/eDP 1.4/HDMI 2.0 |
| Other |
UART ,SPI ,CAN ,I2C ,I2S ,DMIC ,GPIOs |
| Connectivity |
10/100/1000 RGMII |
| Size |
100 mm x 87 mm |
NVIDIA Jetson AGX Xavier Module
Out of stock
| Product Name |
Jetson AGX Xavier Module |
|---|---|
| GPU |
512-core Volta GPU with Tensor Cores |
| CPU |
8-core ARM v8.2 64-bit CPU ,8MB L2 + 4MB L3 |
| Memory |
32GB 256-Bit LPDDR4x ,136.5GB/s |
| Storage |
32GB eMMC 5.1 |
| DL Accelerator |
(2x) NVDLA Engines* ,5 TFLOPS (FP16) ,10 TOPS (INT8) |
| Video Accelerator |
7-way VLIW Vision Processor |
| Video Encoder |
2x1000MP/sec ,4x 4K @ 60 (HEVC) ,8x 4K @ 30 (HEVC) ,16x 1080p @ 60 (HEVC) ,32x 1080p @ 30 (HEVC) |
| Video Decoder |
2x1500MP/sec ,2x 8K @ 30 (HEVC) ,6x 4K @ 60 (HEVC) ,12x 4K @ 30 (HEVC) ,26x 1080p @ 60 (HEVC) ,52x 1080p @ 30 (HEVC) ,30x 1080p @ 30 (H.264) |
| Size |
105 mm x 105 mm |
NVIDIA Jetson Nano Module
Out of stock
| Product Name |
NVIDIA Jetson Nano Module |
|---|---|
| GPU |
NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores |
| CPU |
Quad-core ARM Cortex-A57 MP Core processor |
| AI Performance |
0.5 TFLOPS (FP16) |
| Memory |
4 GB 64-bit LPDDR4 ,1600MHz 25.6 GB/s |
| Storage |
16 GB eMMC 5.1 |
| Video Encoder |
250MP/sec(1x 4K @ 30 (HEVC) ,2x 1080p @ 60 (HEVC) ,4x 1080p @ 30 (HEVC) ,4x 720p @ 60 (HEVC) ,9x 720p @ 30(HEVC)) |
| Video Decoder |
500MP/sec(1x 4K @ 60 (HEVC) ,2x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) ,8x 1080p @ 30 (HEVC) ,9x 720p @ 60 (HEVC)) |
| Camera |
12 lanes (3×4 or 4×2) MIPI CSI-2 D-PHY 1.1 (1.5 Gb/s per pair) |
| Connectivity |
Gigabit Ethernet ,M.2 Key E |
| Display |
HDMI 2.0 and eDP 1.4 |
| USB |
4x USB 3.0 ,USB 2.0 Micro-B |
| Other |
GPIO ,I2C ,I2S ,SPI ,UART |
| Mechanical |
69.6 mm x 45 mm ,260-pin edge connector |
| Power Consumptions |
5-10W |
| Dimensions |
45 x 70mm |

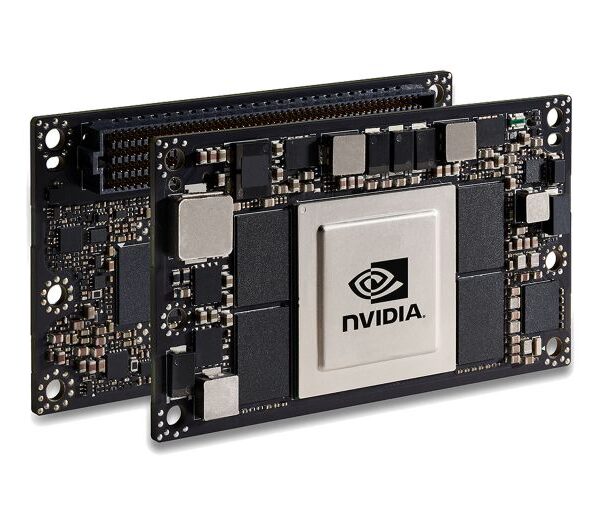

NVIDIA Jetson TX2 4GB Module
Out of stock
| Product Name |
Jetson TX2 4GB Module |
|---|---|
| AI Performance |
1.33 TFLOPs |
| GPU |
256-core NVIDIA Pascal™ GPU |
| CPU |
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM Cortex-A57 MP Core processor |
| Memory |
4 GB 128-bit LPDDR4 ,51.2GB/s |
| Storage |
16 GB eMMC 5.1 |
| Power |
7.5W / 15W |
| Power Consumptions |
5-10W |
| PCIE |
1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) |
| CSI Camera |
Up to 6 cameras (12 via virtual channels ,12 lanes MIPI CSI-2 ,D-PHY 1.2 (up to 30 Gbps) ,C-PHY 1.1 (up to 41Gbps) |
| Video Encoder |
500MP/sec ,1x 4K @ 60 (HEVC) ,3x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) |
| Video Decoder |
1000 MP/sec ,2x 4K @ 60 (HEVC) ,7x 1080p @ 60 (HEVC) ,20x 1080p @ 30 (HEVC) |
| Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 ,2 x4 DSI (1.5Gbps/lane) |
| Networking |
10/100/1000 BASE-T Ethernet |
| Mechanical |
87 mm x 50 mm ,400-pin connector |
| Dimensions |
45 x 70mm |
NVIDIA Jetson TX2i Module
Out of stock
| Product Name |
NVIDIA Jetson TX2i Module |
|---|---|
| Brand |
Seeed Studio |
| AI performance |
1.26 TFLOPs |
| GPU |
256-core NVIDIA Pascal™ GPU |
| CPU |
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM® Cortex®-A57 MP Core processor |
| Memory |
8 GB 128-bit LPDDR4 (ECC Support) 51.2GB/s |
| Storage |
32 GB eMMC 5.1 |
| Power |
10W / 20W |
| PCIE |
1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) |
| CSI Camera |
Up to 6 cameras (12 via virtual channels ,12 lanes MIPI CSI-2 ,D-PHY 1.2 (up to 30 Gbps) ,C-PHY 1.1 (up to 41Gbps) |
| Video Encoder |
500MP/sec ,1x 4K @ 60 (HEVC) ,3x 4K @ 30 (HEVC) ,4x 1080p @ 60 (HEVC) |
| Video Decoder |
1000 MP/sec ,2x 4K @ 60 (HEVC) ,7x 1080p @ 60 (HEVC) ,20x 1080p @ 30 (HEVC) |
| Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 ,2 x4 DSI (1.5Gbps/lane) |
| Networking |
10/100/1000 BASE-T Ethernet |
| Mechanicals |
87 mm x 50 mm ,400-pin connector |
| Voltage Input |
9V – 19.6V DC |
| Module Power |
10W – 20W |
| Applications |
AI ,Compute ,Multimedia ,and Graphics libraries and APIs |
| Dimensions |
45 x 70mm |
NVIDIA Jetson Xavier NX Module
Out of stock
| GPU |
NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores |
|---|---|
| Max GPU Frequency(MHz) |
1100 |
| CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 |
| Max CPU Frequency(MHz) |
1900 |
| Memory |
8 GB 128-bit LPDDR4x @ 51.2GB/s |
| Storage |
16 GB eMMC 5.1 |
| Video Encode |
2x 4K @ 30 ,6x 1080p @ 60 ,14x 1080p @ 30 (H.265/H.264) |
| Video Decode |
2x 4K @ 60 ,4x 4K @ 30 ,12x 1080p @ 60 ,32x 1080p @ 30 (H.265) 2x 4K @ 30 ,6x 1080p @ 60 ,16x 1080p @ 30 (H.264) |
| Display |
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| DLA Max Frequency(MHz) |
1100 |
| USB |
1xUSB 3.1 (10 Gbps) ,3xUSB 2.0 |
| Connector |
60 pin SO-DIMM connector |
| Length (mm) |
70 |
| Width (mm) |
45 |
| Weight (gm) |
170 |
